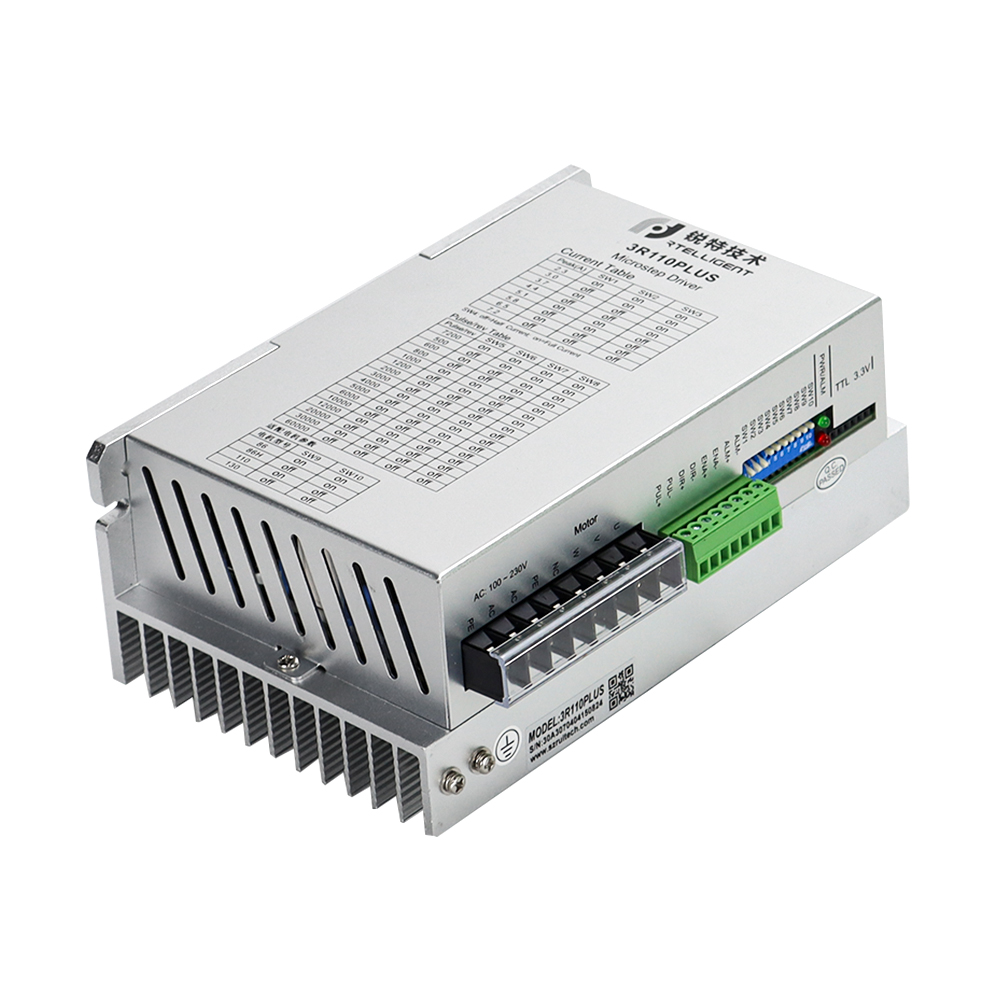

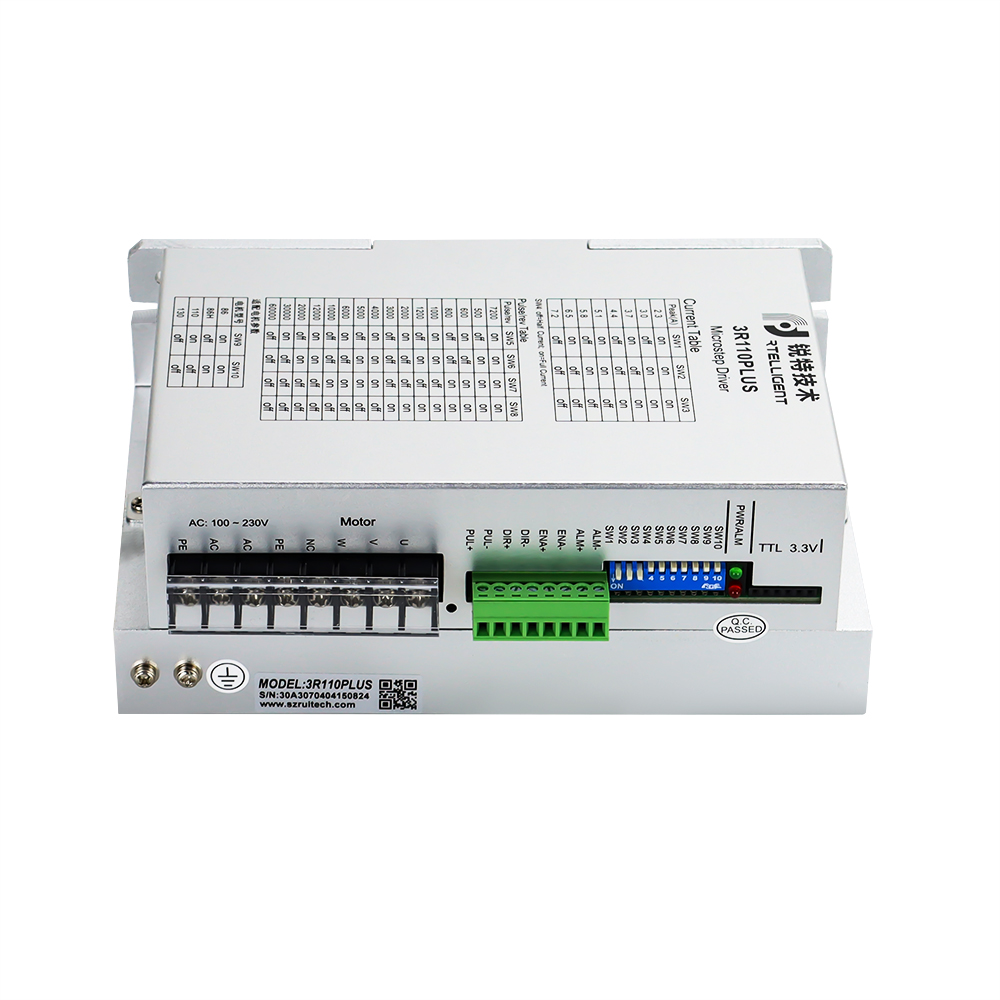

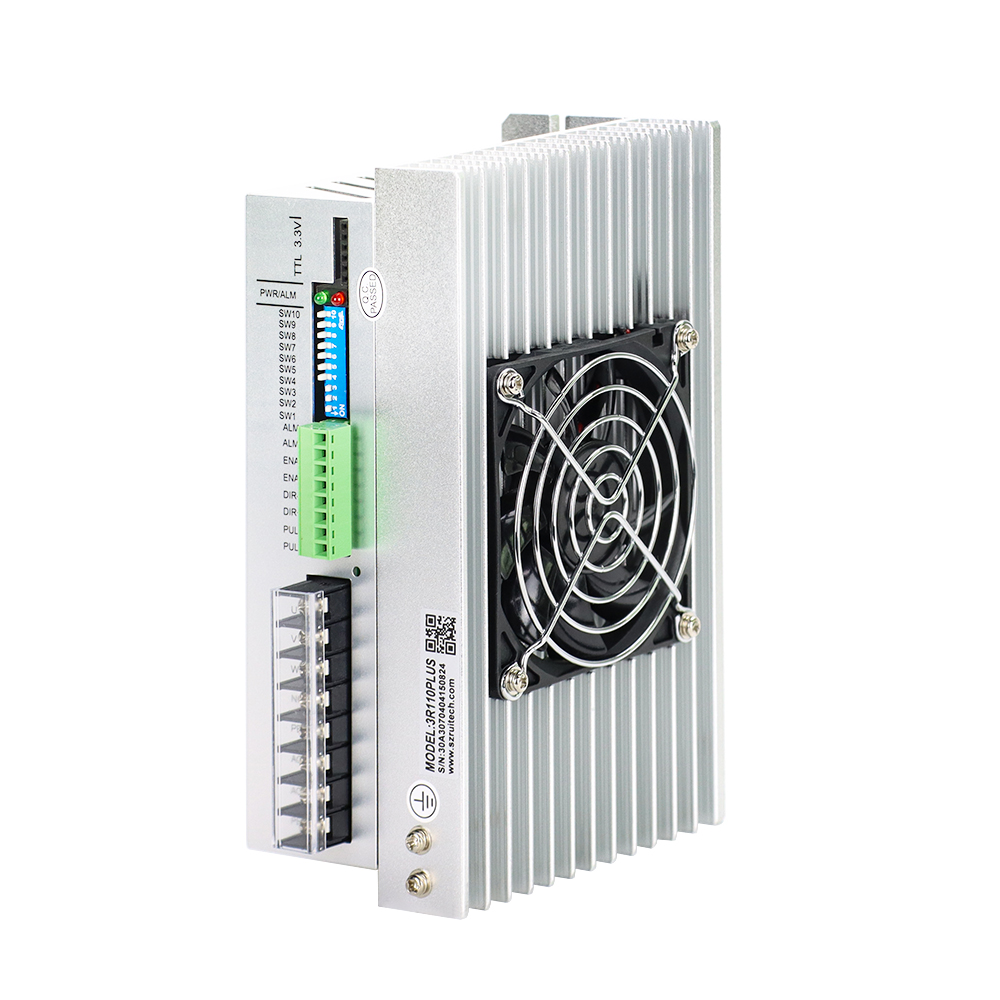

3 Phase Open loop Stepper C Series
3 Phase Open loop Stepper C Series
Product Introduction

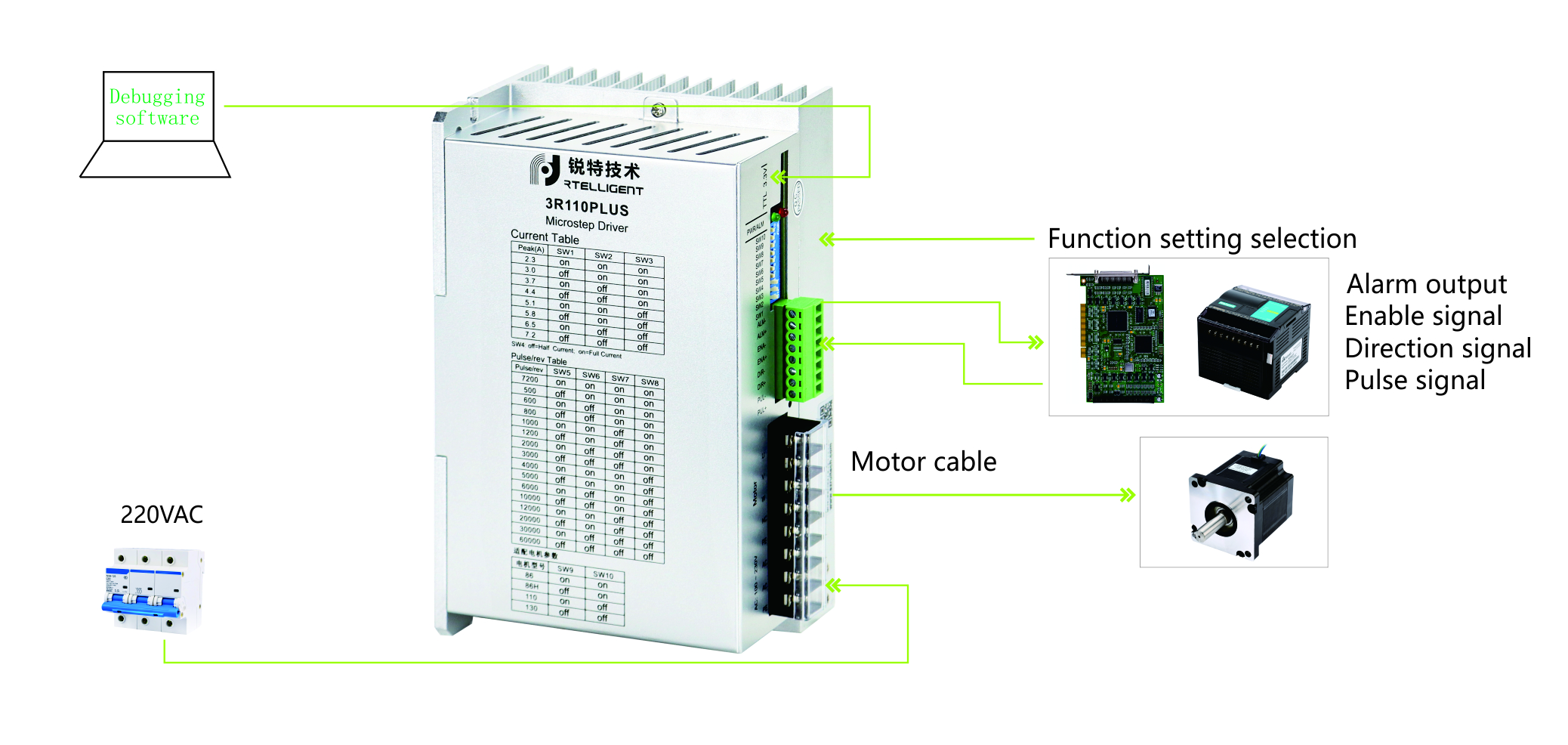

Connection
Features
• Working voltage：110~220VAC
• Communication：TTL
• Maximum phase current output: 7.2A/Phase (Peak)
• PUL+DIR/CW+CCW pulse mode optional
• Phase loss alarm function
• Semi-current function
• Digital IO port:
3 photoelectric isolation digital signal input, high level can directly receive 24V DC level;
1 photoelectric isolation digital signal output, maximum withstand voltage 30V, maximum input or pull-out current 50mA.
• 8 gears can be customized by users
• 16 gears can be subdivided by user-defined subdivision, supporting arbitrary resolution in the range of 200-65535
• IO control mode, support 16 speed customization
• Programmable input port and output port
Current Setting
|
Peak current A |
SW1 |
SW2 |
SW3 |
Remarks |
|
2.3 |
on |
on |
on |
User can set 8 levels of current through debugging software |
|
3.0 |
off |
on |
on |
|
|
3.7 |
on |
off |
on |
|
|
4.4 |
off |
off |
on |
|
|
5.1 |
on |
on |
off |
|
|
5.8 |
off |
on |
off |
|
|
6.5 |
on |
off |
off |
|
|
7.2 |
off |
off |
off |
Micro-stepping Setting
|
Pulse/rev |
SW5 |
SW6 |
SW7 |
SW8 |
Remarks |
|
7200 |
on |
on |
on |
on |
Users can set up 16 level subdivision through debugging software. |
|
500 |
off |
on |
on |
on |
|
|
600 |
on |
off |
on |
on |
|
|
800 |
off |
off |
on |
on |
|
|
1000 |
on |
on |
off |
on |
|
|
1200 |
off |
on |
off |
on |
|
|
2000 |
on |
off |
off |
on |
|
|
3000 |
off |
off |
off |
on |
|
|
4000 |
on |
on |
on |
off |
|
|
5000 |
off |
on |
on |
off |
|
|
6000 |
on |
off |
on |
off |
|
|
10000 |
off |
off |
on |
off |
|
|
12000 |
on |
on |
off |
off |
|
|
20000 |
off |
on |
off |
off |
|
|
30000 |
on |
off |
off |
off |
|
|
60000 |
off |
off |
off |
off |
Product Information
Introducing our latest innovation in motor control technology, the three-phase open loop stepper driver series. Designed to deliver exceptional performance and accuracy, this family of stepper drives is ideally suited for a variety of applications, from industrial machinery to robotics and automation systems.
Our range of three-phase open-loop stepper drives feature advanced microstepping technology to ensure smooth, accurate motion control. Microstepping resolution is up to 25,600 steps per revolution, enabling precise positioning and smooth motion even at low speeds. This provides greater flexibility and control, making it ideal for applications requiring high precision and accuracy.
Our family of three-phase open-loop stepper drivers are also equipped with high-performance current control algorithms. This ensures the drive delivers optimal current to the motor, minimizing heat generation and maximizing efficiency. With current ranges up to 8.2A, this series is capable of driving a variety of stepper motors, making it a versatile solution for a variety of motor control requirements.
Another distinguishing feature of our range of three-phase open loop stepper drivers is their advanced protection mechanisms. Built-in overcurrent, overvoltage, and overtemperature protection ensures the safety and reliability of the driver and prevents potential damage to the motor or the driver itself. This makes our range of stepper drives a reliable and durable choice for demanding applications where continuous and uninterrupted operation is critical.
Additionally, our family of three-phase open-loop stepper drivers are designed for easy integration and setup. With its user-friendly interface and intuitive control panel, configuring and fine-tuning driver settings is a breeze. Additionally, the driver supports a wide range of input voltages, making it compatible with a variety of power systems.
In summary, our family of three-phase open-loop stepper drivers combine advanced microstepping technology, high-performance current control and comprehensive protection mechanisms to deliver superior performance, accuracy and reliability. Whether you are in industrial, robotics or automation, our range of stepper drives are perfect for precise motor control. Experience the future of motor control technology with our family of three-phase open-loop stepper drives.
-
