3 Phase Open loop Stepper Drive Series
3 Phase Open loop Stepper Drive Series
Product Introduction

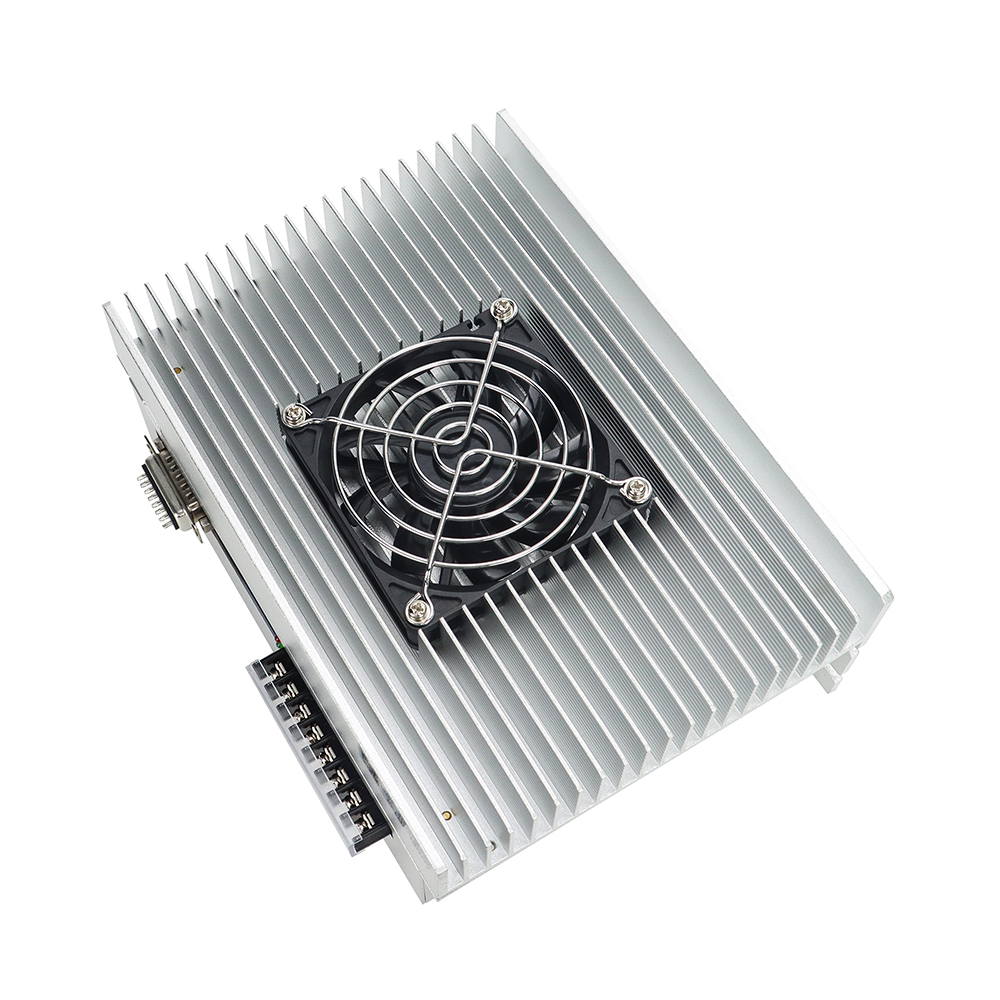

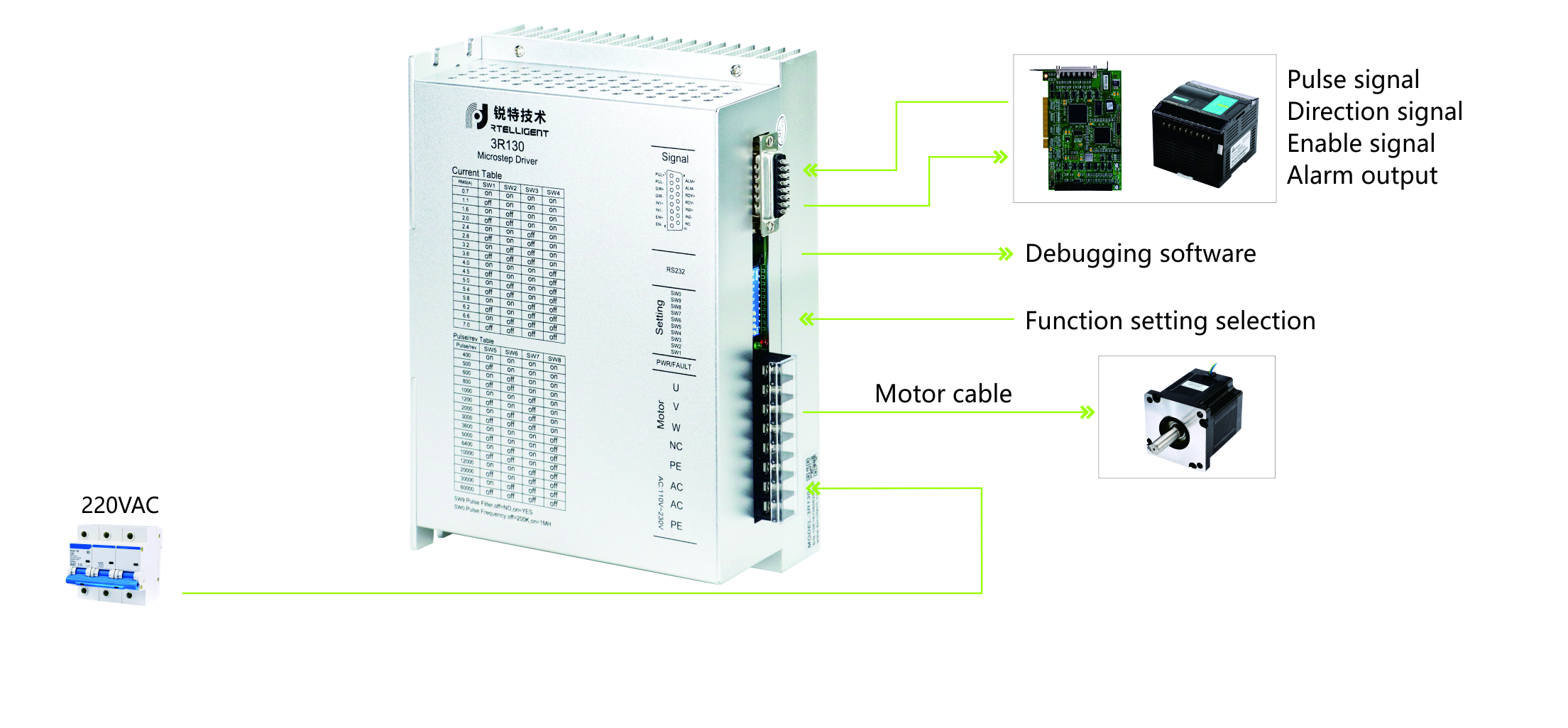

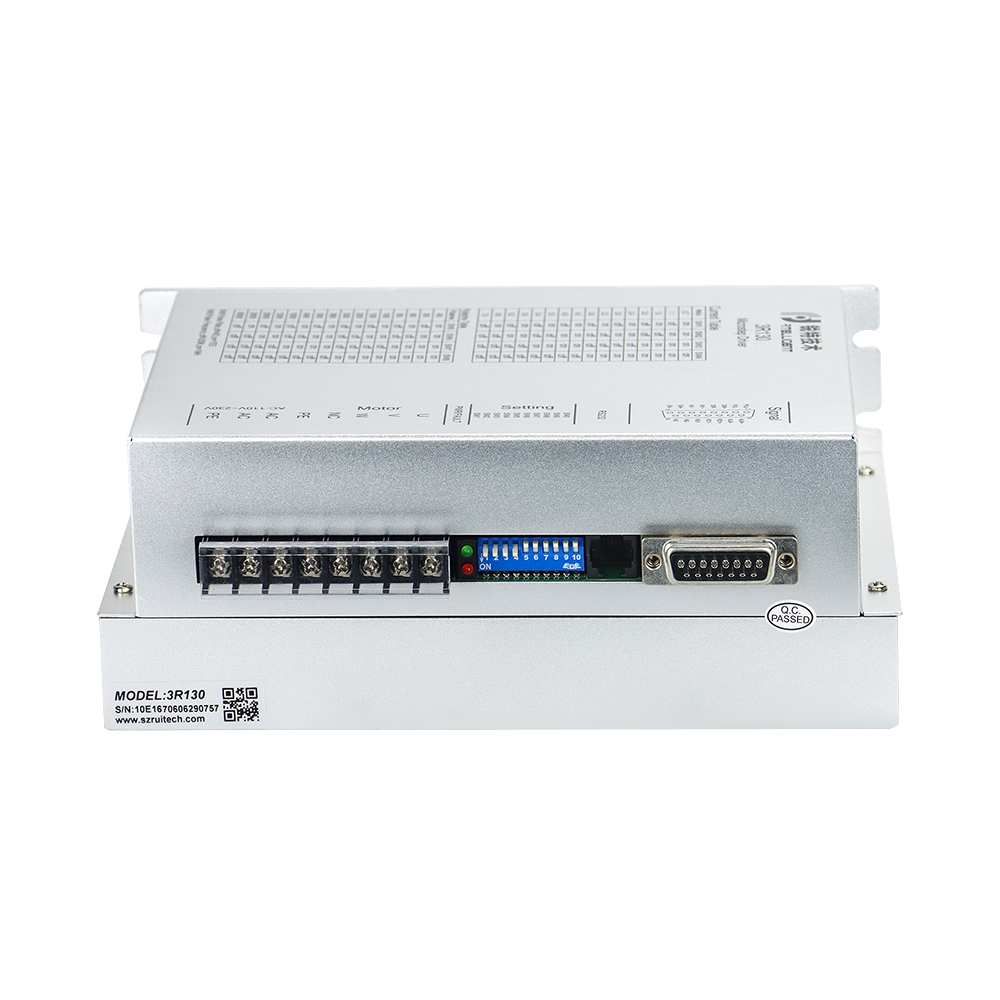

Connection
Features
| Power supply | 110 - 230 VAC |
| Output Current | Up to 7.0 amps（peak value） |
| Current control | PID current control algorithm |
| Micro-stepping settings | DIP switch settings, 16 options |
| Speed range | Use the suitable motor，up to 3000rpm |
| Resonance suppression | Automatically calculate the resonance point and inhibit the IF vibration |
| Parameter adaption | Automatically detect the motor parameter when driver initialize, optimize the controlling performance |
| Pulse mode | Direction & pulse, CW/CCW double pulse |
| Pulse filtering | 2MHz digital signal processing filter |
| Neutral current | Automatically halve the current after the motor stopping |

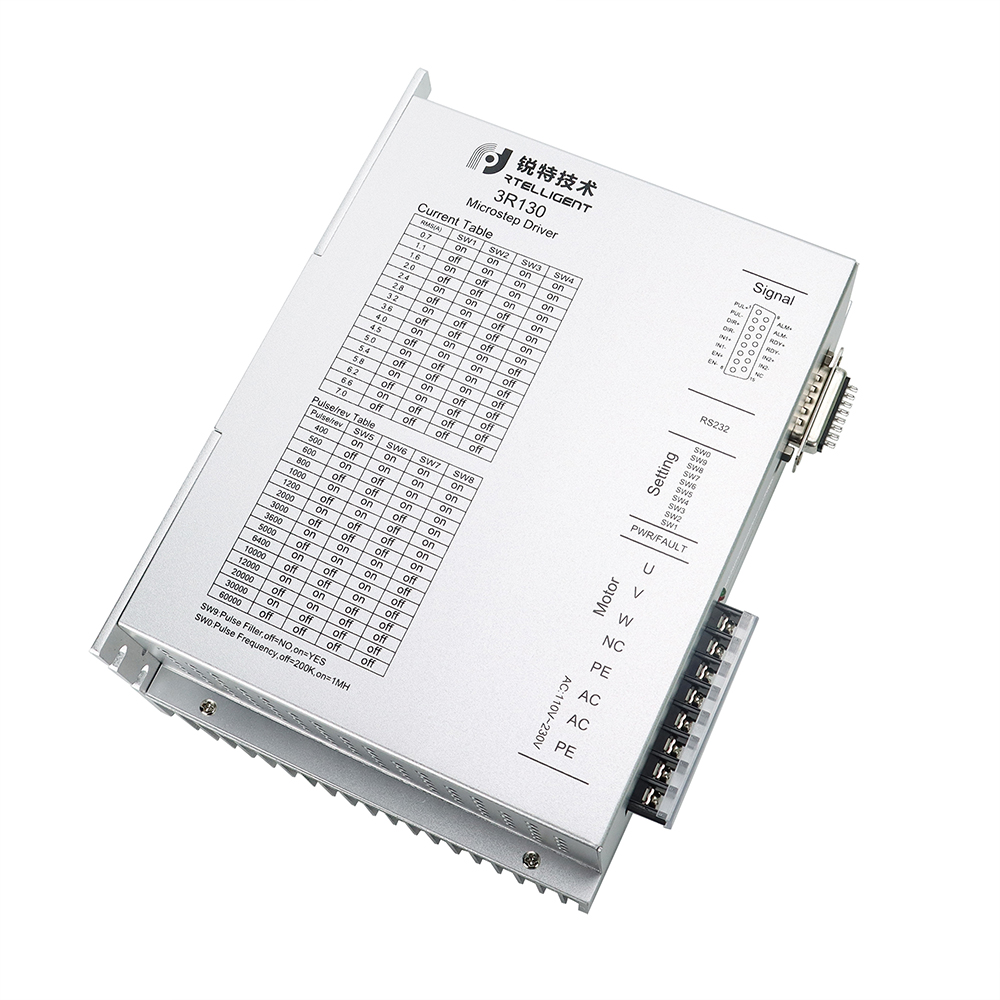

Current Setting
|
RMS(A) |
SW1 |
SW2 |
SW3 |
SW4 |
Remarks |
|
0.7A |
on |
on |
on |
on |
Other current can be customized. |
|
1.1A |
off |
on |
on |
on |
|
|
1.6A |
on |
off |
on |
on |
|
|
2.0A |
off |
off |
on |
on |
|
|
2.4A |
on |
on |
off |
on |
|
|
2.8A |
off |
on |
off |
on |
|
|
3.2A |
on |
off |
off |
on |
|
|
3.6A |
off |
off |
off |
on |
|
|
4.0A |
on |
on |
on |
off |
|
|
4.5A |
off |
on |
on |
off |
|
|
5.0A |
on |
off |
on |
off |
|
|
5.4A |
off |
off |
on |
off |
|
|
5.8A |
on |
on |
off |
off |
|
|
6.2A |
off |
on |
off |
off |
|
|
6.6A |
on |
off |
off |
off |
|
|
7.0A |
off |
off |
off |
off |
Micro-stepping Setting
|
Steps/revolution |
SW5 |
SW6 |
SW7 |
SW8 |
Remarks |
|
400 |
on |
on |
on |
on |
Other pulse per revolution can be customized. |
|
500 |
off |
on |
on |
on |
|
|
600 |
on |
off |
on |
on |
|
|
800 |
off |
off |
on |
on |
|
|
1000 |
on |
on |
off |
on |
|
|
1200 |
off |
on |
off |
on |
|
|
2000 |
on |
off |
off |
on |
|
|
3000 |
off |
off |
off |
on |
|
|
4000 |
on |
on |
on |
off |
|
|
5000 |
off |
on |
on |
off |
|
|
6000 |
on |
off |
on |
off |
|
|
10000 |
off |
off |
on |
off |
|
|
12000 |
on |
on |
off |
off |
|
|
20000 |
off |
on |
off |
off |
|
|
30000 |
on |
off |
off |
off |
|
|
60000 |
off |
off |
off |
off |
Product Description
Introducing our innovative family of three-phase open loop stepper drivers designed to revolutionize your stepper motor control systems. This drive series offers advanced features and unparalleled performance guaranteed to exceed your expectations.
One of the key features of our range of three-phase open loop stepper drives is their exceptional speed and accuracy. With micro-stepping technology, the drive enables smooth, precise motion control, ensuring precise positioning and seamless operation. No more jerky movements or missed steps - our range of drivers will give you reliable, efficient performance every time.
Another notable feature of this driver series is its compatibility with a wide range of stepper motors. Whether you use a three-phase hybrid stepper motor or a bipolar stepper motor, our range of drives can meet your needs. This versatility makes it ideal for a variety of industrial applications, including CNC machine tools, robotics and automation systems.
In addition, our driver range offers excellent thermal performance. Advanced cooling technology ensures the drive operates at optimal temperatures even under heavy load, preventing overheating and extending its service life. This means you can rely on our range of drives for long-lasting, uninterrupted operation.
Additionally, the three-phase open-loop stepper driver family offers simple configuration and control options. With the user-friendly interface and intuitive software, you can easily adjust various parameters to meet your specific requirements. Whether adjusting acceleration, changing speed or fine-tuning current, our range of drives gives you the flexibility and control you need.
Product Information
Finally, our range of drives are designed to withstand the most demanding industrial environments. With rugged construction and comprehensive protection against overvoltage, overcurrent and short circuits, you can trust our range of drives will continue to operate in harsh conditions. Its compact design also allows easy integration into your existing systems.
Experience next-level stepper motor control with our family of three-phase open-loop stepper drives. With its superior functionality and reliable performance, it is the perfect choice for any industrial application. Upgrade your control system today and see the difference our range of drives makes.
-
Rtelligent 3R130 User Manual
