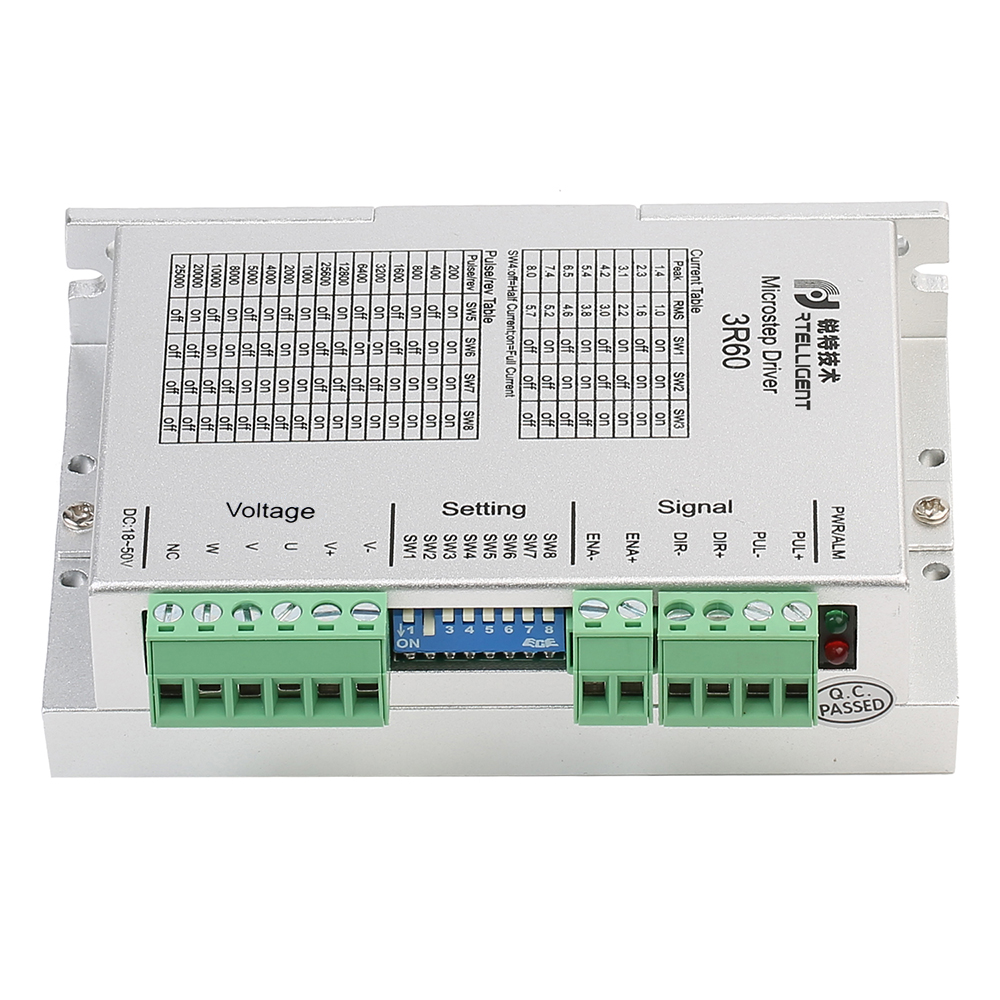

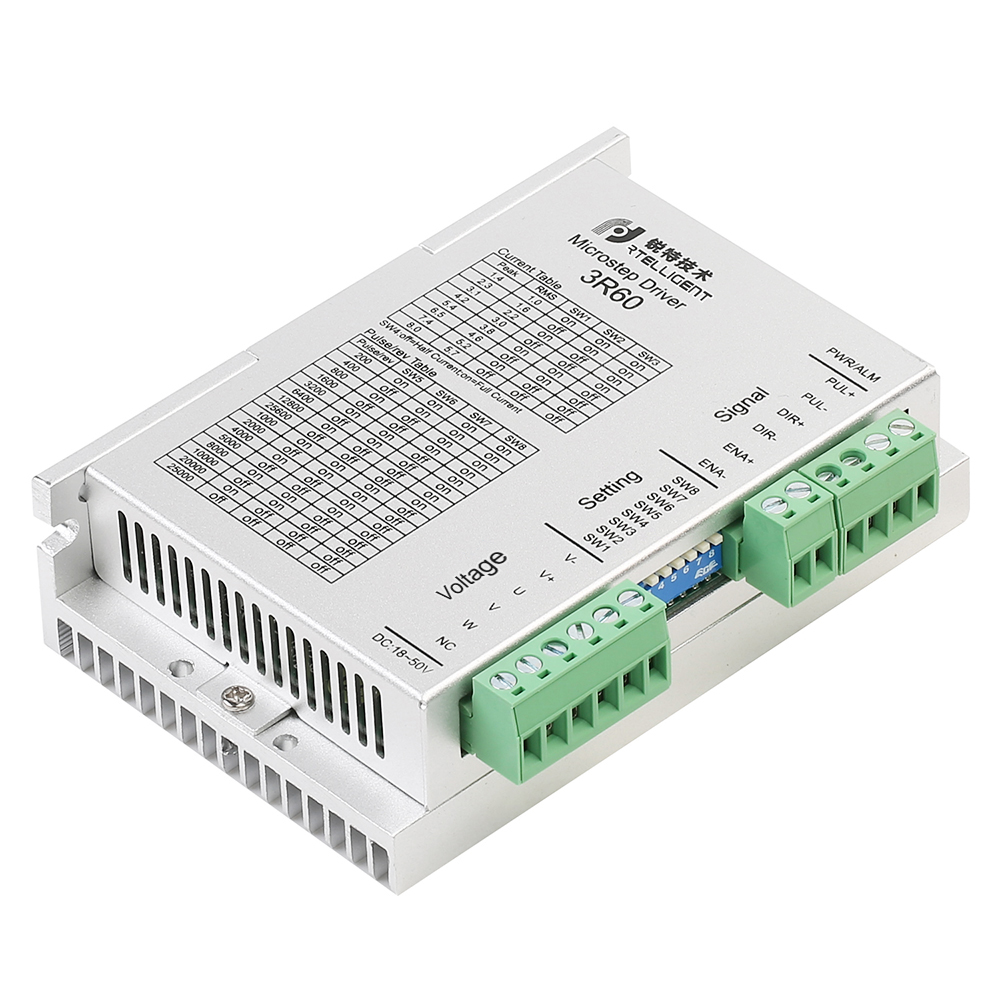

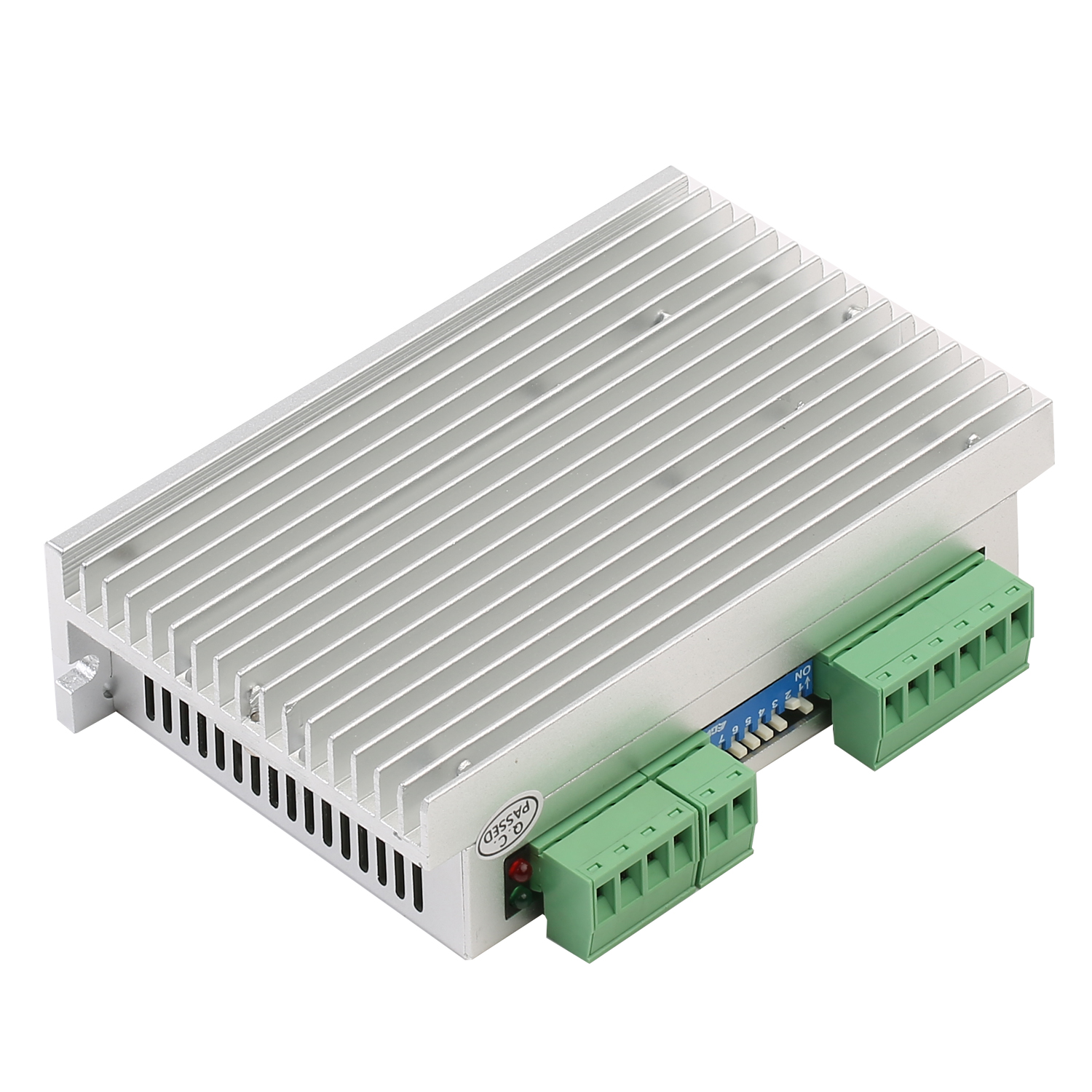

3 Phase Open loop Stepper Drive Series
3 Phase Open loop Stepper Drive Series
Product Introduction

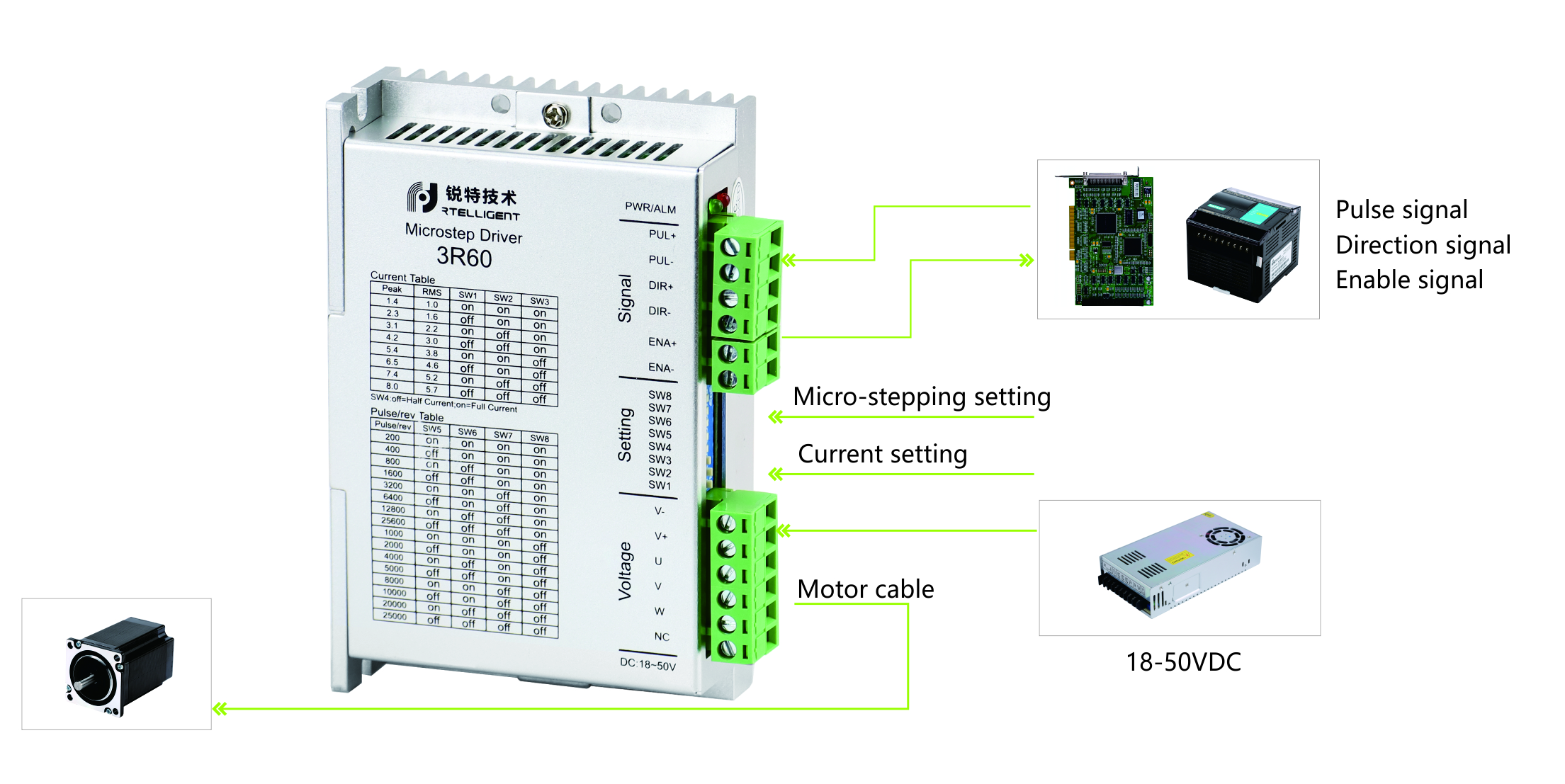

Connection
Features
| Power supply | 24 – 50VDC |
| Output current | DIP switch setting, 8 options, Up to 5.6 amps（peak value） |
| Current control | PID current control algorithm |
| Micro-stepping settings | DIP switch settings, 16 options |
| Speed range | Use the suitable motor，up to 3000rpm |
| Resonance suppression | Automatically calculate the resonance point and inhibit the IF vibration |
| Parameter adaption | Automatically detect the motor parameter when driver initialize, optimize the controlling performance |
| Pulse mode | Support direction & pulse, CW/CCW double pulse |
| Pulse filtering | 2MHz digital signal filter |
| Idle current | The current is automatically halved after the motor stops running |
Current Setting
|
Peak Current |
Average Current |
SW1 |
SW2 |
SW3 |
Remarks |
|
1.4A |
1.0A |
on |
on |
on |
Other current can be customized. |
|
2.1A |
1.5A |
off |
on |
on |
|
|
2.7A |
1.9A |
on |
off |
on |
|
|
3.2A |
2.3A |
off |
off |
on |
|
|
3.8A |
2.7A |
on |
on |
off |
|
|
4.3A |
3.1A |
off |
on |
off |
|
|
4.9A |
3.5A |
on |
off |
off |
|
|
5.6A |
4.0A |
off |
off |
off |
Micro-stepping Setting
|
Pulse/rev |
SW5 |
SW6 |
SW7 |
SW8 |
Remarks |
|
200 |
on |
on |
on |
on |
Other subdivisions can be customized |
|
400 |
off |
on |
on |
on |
|
|
800 |
on |
off |
on |
on |
|
|
1600 |
off |
off |
on |
on |
|
|
3200 |
on |
on |
off |
on |
|
|
6400 |
off |
on |
off |
on |
|
|
12800 |
on |
off |
off |
on |
|
|
25600 |
off |
off |
off |
on |
|
|
1000 |
on |
on |
on |
off |
|
|
2000 |
off |
on |
on |
off |
|
|
4000 |
on |
off |
on |
off |
|
|
5000 |
off |
off |
on |
off |
|
|
8000 |
on |
on |
off |
off |
|
|
10000 |
off |
on |
off |
off |
|
|
20000 |
on |
off |
off |
Off |
|
|
25000 |
off |
off |
off |
off |
Product Description
Introducing our revolutionary family of three-phase open loop stepper drives designed to provide maximum efficiency and precision control for all your motion control needs. With its advanced features and cutting-edge technology, this range is guaranteed to take your applications to new heights.
One of the outstanding features of our range of three-phase open loop stepper drives is their unparalleled accuracy and performance. The drive's high resolution of up to 50,000 steps per revolution ensures smooth, precise motion control even in the most demanding applications. Whether you work in robotics, CNC machines, or any other motion control system, our drivers deliver superior results every time.
In addition to exceptional accuracy, our family of three-phase open-loop stepper drivers offer a variety of operating modes, allowing you to customize the driver to meet your specific needs. Whether you require full-step, half-step or micro-step operation, our drives can easily accommodate your requirements. This versatility makes it the perfect choice for a variety of applications, from small hobby projects to complex industrial systems.
Additionally, our family of three-phase open loop stepper drivers are designed with durability and reliability in mind. It features a rugged design and high-quality components to ensure long-lasting performance even in harsh environments. The drive is also equipped with advanced protection mechanisms such as overvoltage, overcurrent, and overheating protection to protect the drive and your valuable equipment.
Product Information
To enhance the user experience and simplify installation, our range of three-phase open loop stepper drivers are designed with ease of use in mind. It has a user-friendly interface that allows intuitive configuration and parameter adjustment. In addition, it supports various communication interfaces, including RS485 and CAN, for seamless integration with your existing systems.
In summary, our range of three-phase open loop stepper drives are the ultimate solution for precise and efficient motion control. With its outstanding accuracy, versatile operating modes and rugged design, this series is ready to meet the most demanding requirements of your application. Experience the difference in motion control with our family of three-phase open-loop stepper drives.
-
Rtelligent 3R60 User Manual
