3-phase Open Loop Stepper Motor Series

Short Description:

Rtelligent A/AM series stepper motor is designed based on the Cz optimized magnetic circuit and adopts stator and rotator materials of high magnetic density, featuring a high energy efficiency.


icon icon

Product Detail

Download

Product Tags

Product Introduction

Rtelligent A/AM series stepper motor is designed based on the Cz optimized magnetic circuit and adopts stator and rotator materials of high magnetic density, featuring a high energy efficiency.

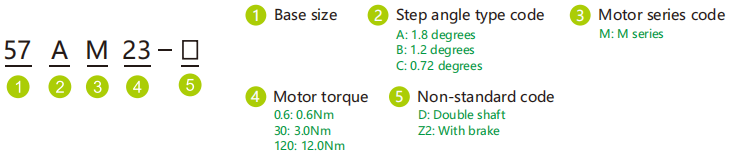

Naming Rule

3-phase open loop stepper motor (1)

Note: Model naming rules are only used for model meaning analysis. For specific optional models, please refer to the details page.

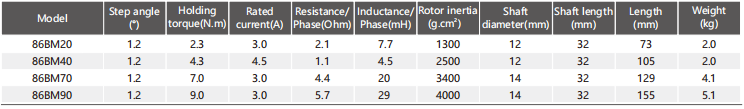

Technical Specifications

Open Loop Stepper Motor
3 Phase Stepper Motor
3-phase open loop stepper motor (2)
Nema Stepper Motor
Stepper Motor With Encoder
3-phase open loop stepper motor (3)
Open Loop Control Of Stepper Motor
Open Loop Control Of Stepper Motor

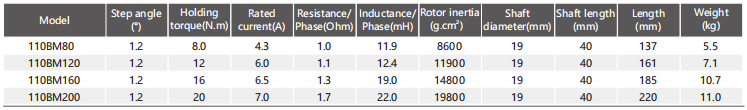

3-phase open loop stepper motor (4)
Nema 17 Stepper Motor
Open Loop Stepper Motor

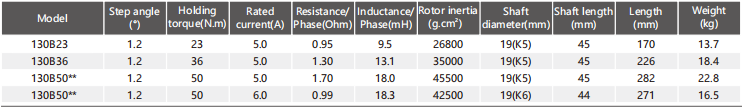

3-phase open loop stepper motor (5)

Note: NEMA 23 (57mm), NEMA 34 (86mm), NEMA 42 (110mm), NEMA 52 (130mm)

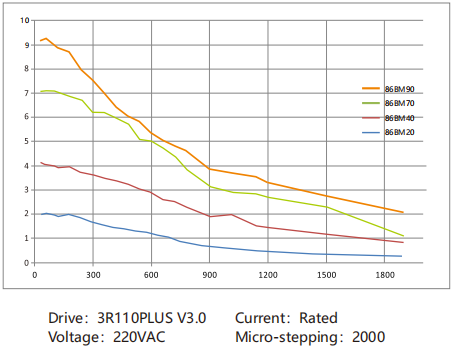

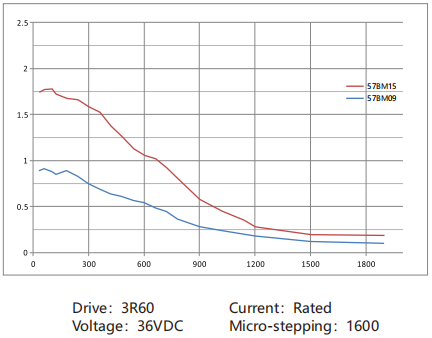

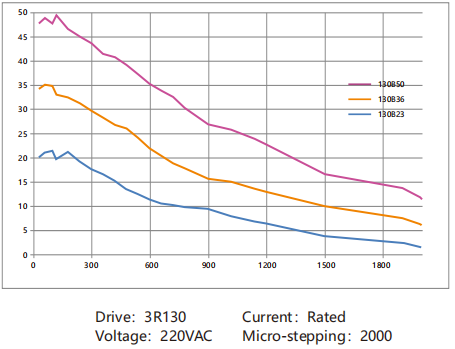

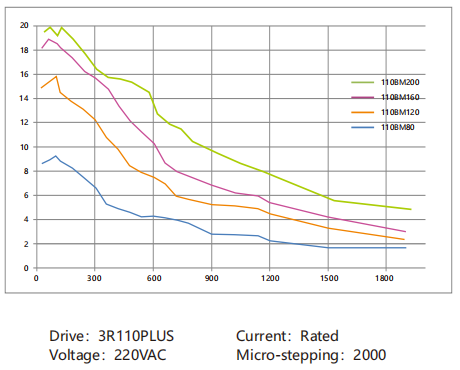

Torque-frequency Curve

3-phase open loop stepper motor (6)
3-phase open loop stepper motor (7)
3-phase open loop stepper motor (8)
3-phase open loop stepper motor (9)

57mm series

U

V

W

Red

Yellow

Blue

86/110mm series

U

V

W

Red

Yellow

Green

Wiring Definition
