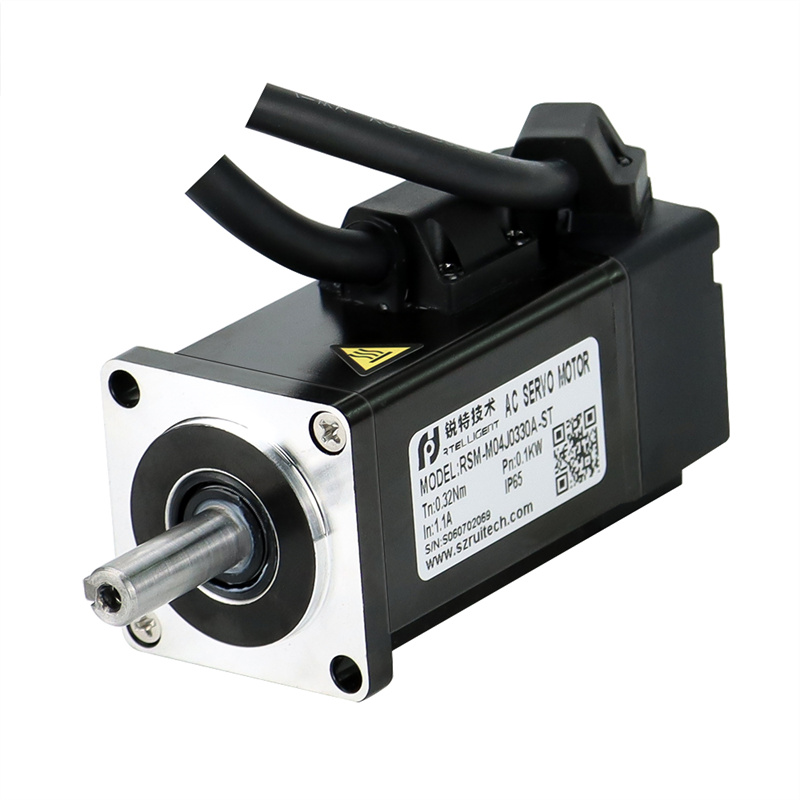

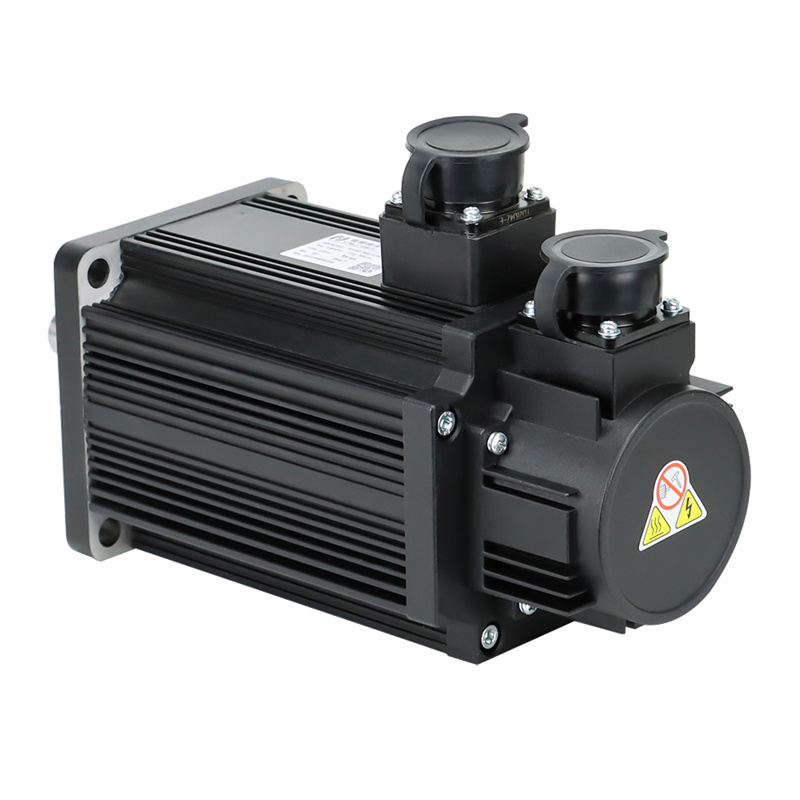

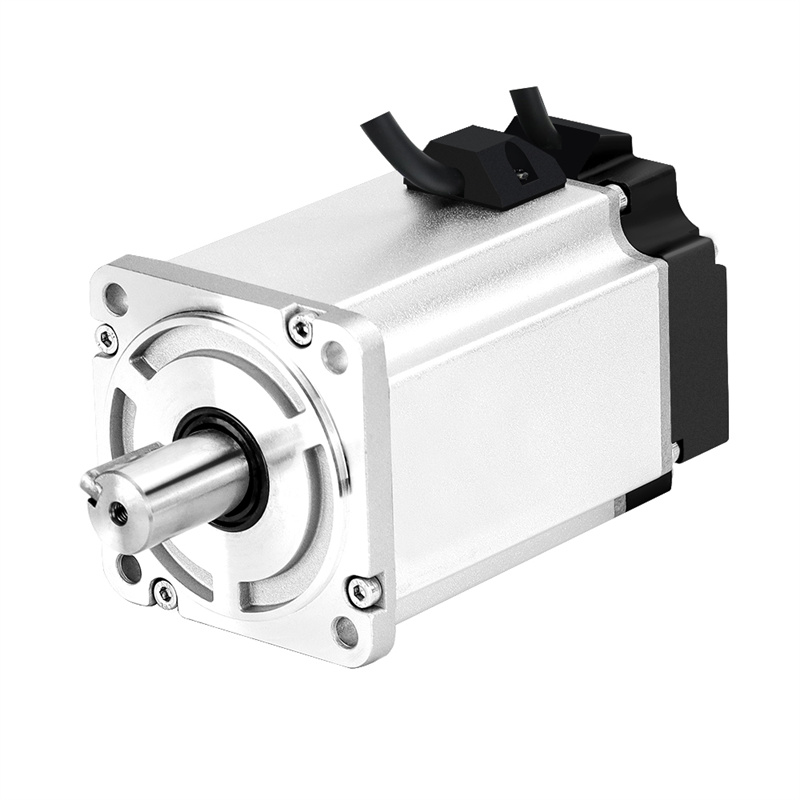

5-Pole Pairs High Performanc AC Servo Motor

Short Description:

Rtelligent RSN series AC servo motors, based on Smd optimized magnetic circuit design, use high magnetic density stator and rotor materials, and have high energy efficiency.

Multiple types of encoders are available, including optical, magnetic, and multi-turn absolute encoder.

• RSNA60/80 motors have more compact size, saving installation cost.

• Permanent magnet brake is optional, moves flexible, suit for Z -axis applications.

• Brake optional or Bake for option

• Multi type of encoder available

• IP65/IP66 Optional or IP65/66 for option

Send email to us

Product Detail

Download

Product Tags

Product Introduction

Connection

Features

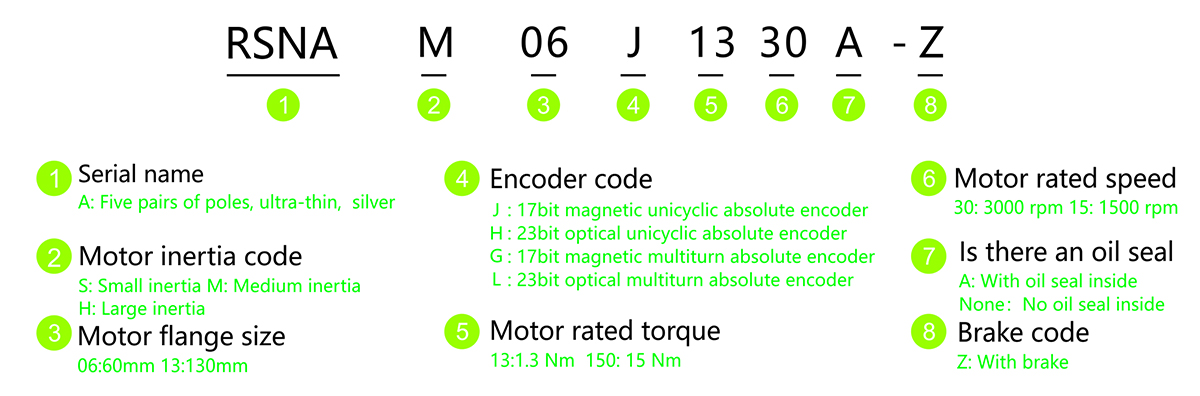

Model	RSNA-M04J0130A	RSNA-M04J0330A	RSNA-M06J0630A	RSNA-M06J1330A	RSNA-M08J2430A	RSNA-M08J3230A
Rated power (W)	50	100	200	400	750	1000
Rated voltage (V)	220	220	220	220	220	220
Rated current (A)	1.1	1.1	1.9	2.3	4.2	5.6
Rated torque (N.M)	0.16	0.32	0.64	1.27	2.39	3.20
Maximum torque (N.M)	0.48	0.96	1.92	3.81	7.17	9.60
Rated speed (rpm)	3000	3000	3000	3000	3000	3000
Maximum speed (rpm)	6500	6500	5000	5000	5000	5000
Back EMF (V/Krpm)	10.5	18.8	26.6	37.0	35.7	34.6
Torque constant (N.M/A)	0.14	0.29	0.33	0.55	0.57	0.57
Wire resistance (Ω,20℃)	14.30	14.90	10.72	6.60	2.03	1.26
Wire inductance (mH,20℃)	14.80	14.80	21.04	20.56	10.20	6.86
Rotor inertia(X10'kg.m²)	0.036	0.079	0.26	0.61	1.71	2.11
Weight (kg)	0.35	0.46Brake 0.66	0.84Brake 1.21	1.19Brake 1.56	2.27Brake 3.05	2.95Brake 3.73
Length L(mm)	61.5	81.5Brake 110	80Brake 109	98Brake 127	107Brake 144	127Brake 163
