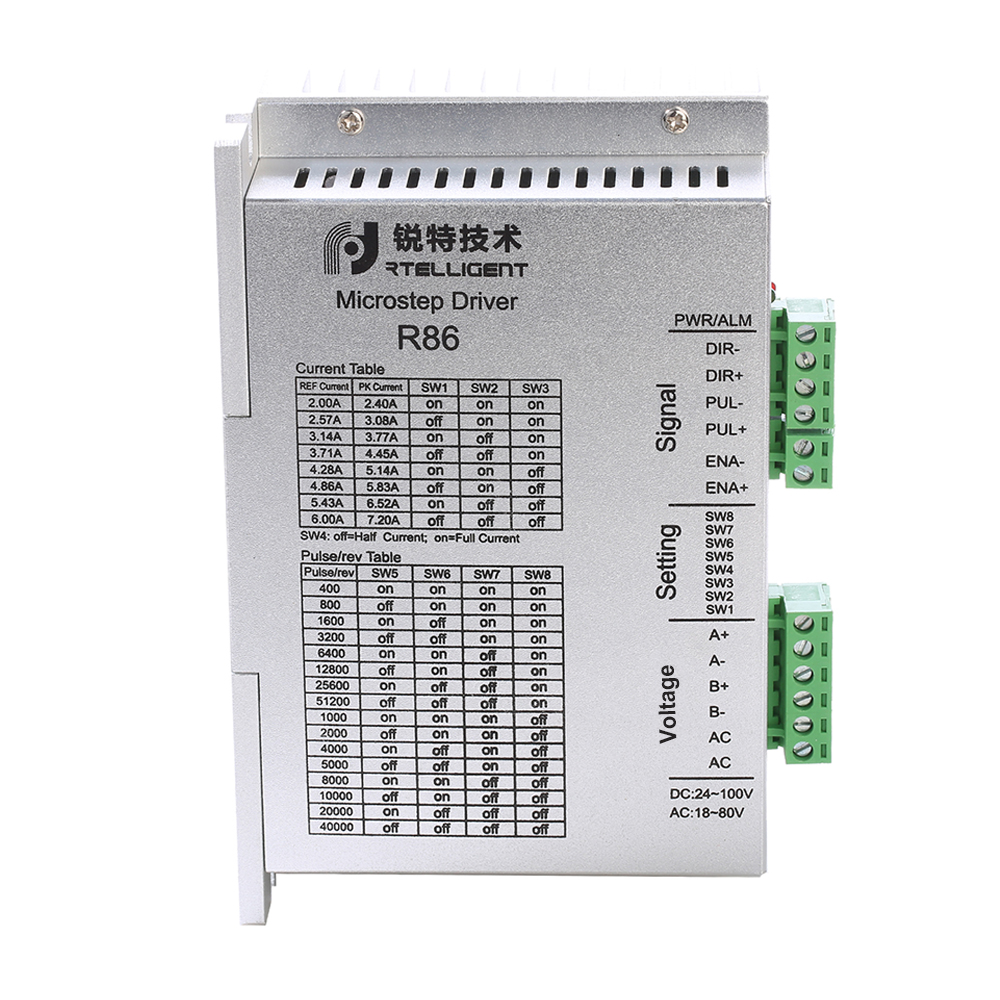

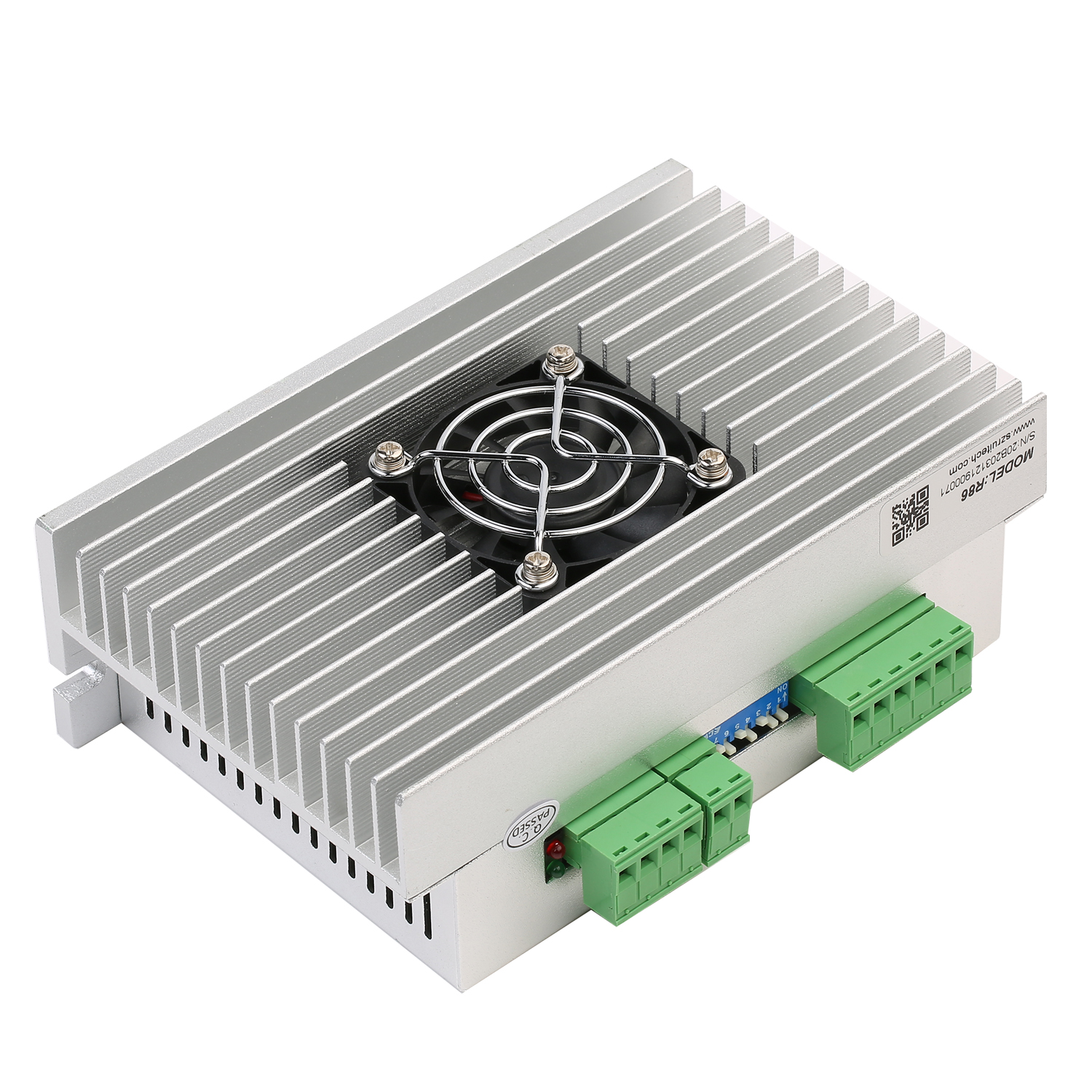

Advanced Pulse Control Digital Stepper Drive R86
Advanced Pulse Control Digital Stepper Drive R86
Product Introduction

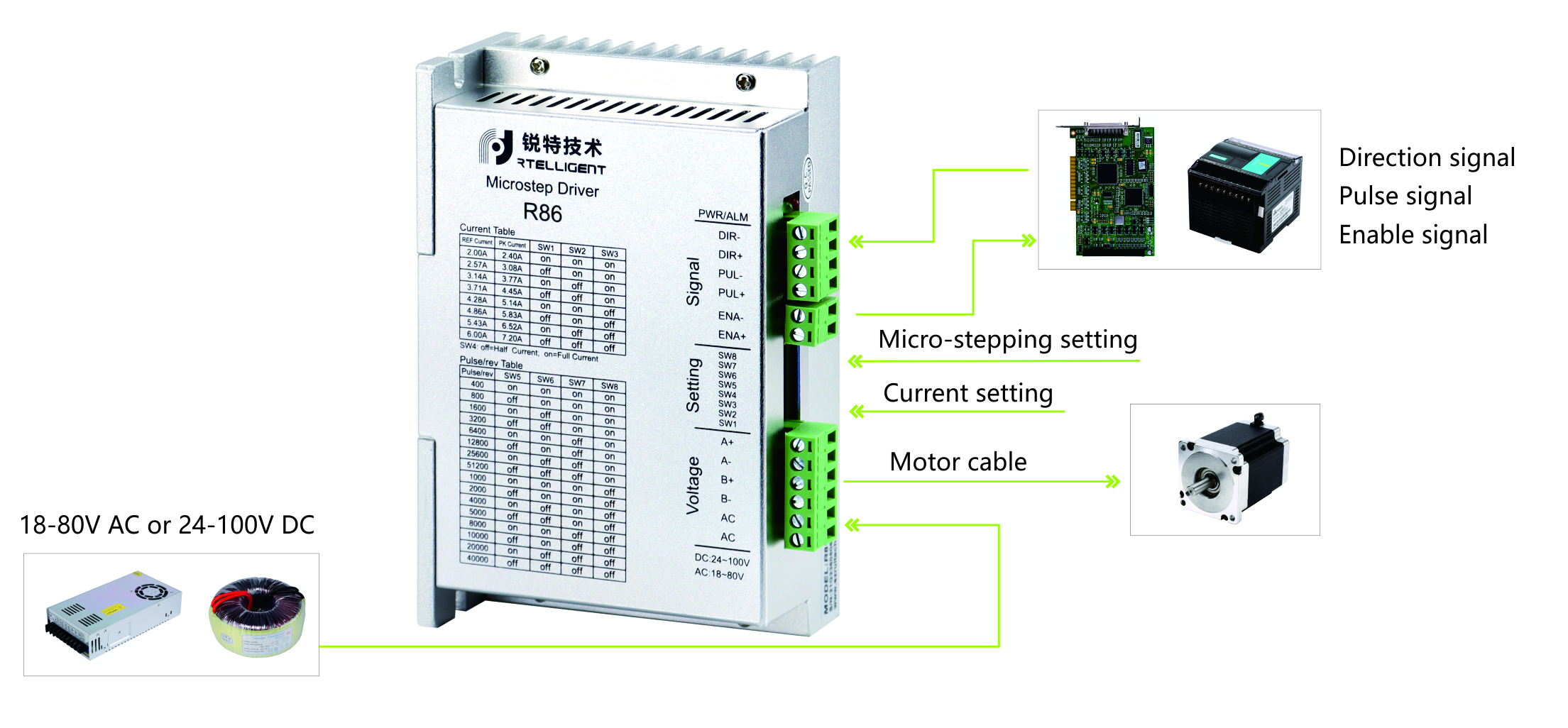

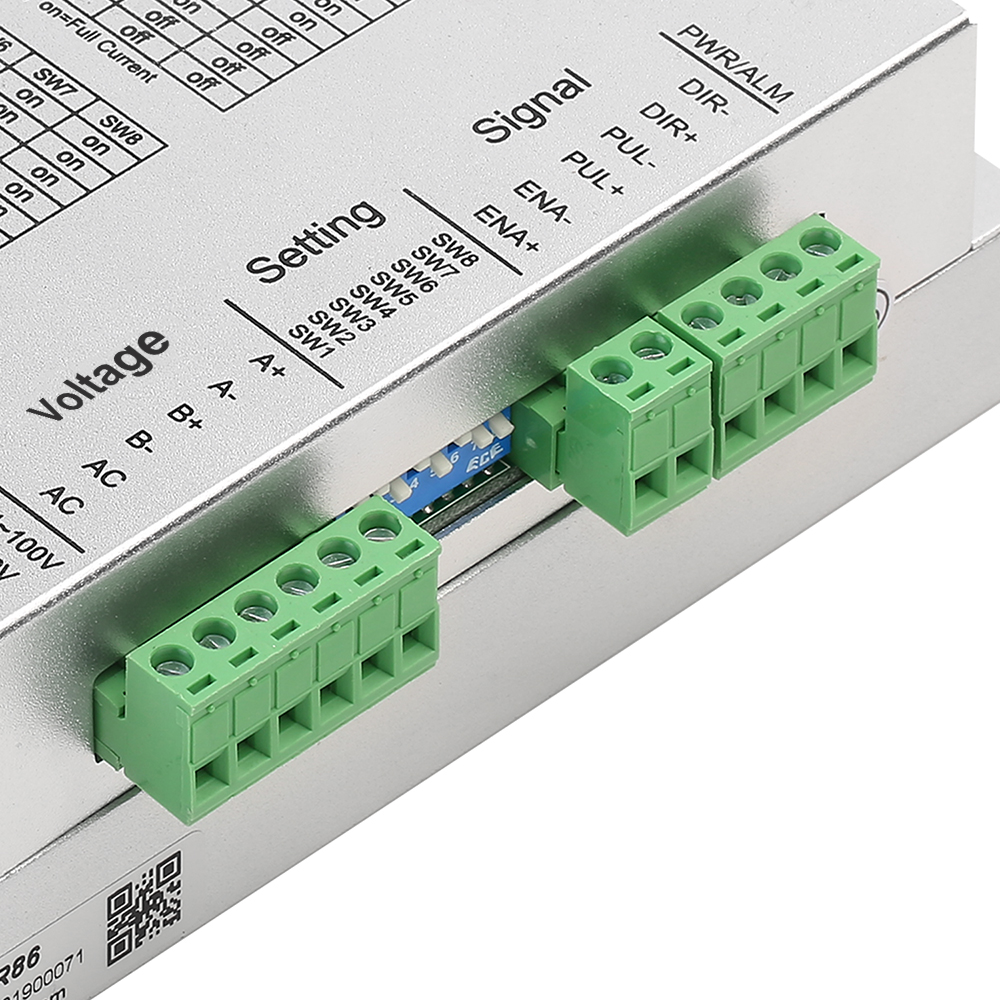

Connection
Features
| Power supply | 20 - 80 VAC / 24 – 100VDC |
| Output Current | Up to 7.2 amps（peak value） |
| Current control | PID current control algorithm |
| Micro-stepping settings | DIP switch settings, 16 options |
| Speed range | Use the suitable motor，up to 3000rpm |
| Resonance suppression | Automatically calculate the resonance point and inhibit the IF vibration |
| Parameter adaption | Automatically detect the motor parameter when Driver initialize, optimize the controlling performance |
| Pulse mode | Direction & pulse, CW/CCW double pulse |
| Pulse filtering | 2MHz digital signal processing filter |
| Neutral current | Automatically halve the current after the motor stopping |
Current Setting
|
Peak Current |
Average Current |
SW1 |
SW2 |
SW3 |
Remarks |
|
2.4A |
2.0A |
on |
on |
on |
Other Current can be customized |
|
3.1A |
2.6A |
off |
on |
on |
|
|
3.8A |
3.1A |
on |
off |
on |
|
|
4.5A |
3.7A |
off |
off |
on |
|
|
5.2A |
4.3A |
on |
on |
off |
|
|
5.8A |
4.9A |
off |
on |
off |
|
|
6.5A |
5.4A |
on |
off |
off |
|
|
7.2A |
6.0A |
off |
off |
off |
Micro-stepping Setting
|
Steps/revolution |
SW5 |
SW6 |
SW7 |
SW8 |
Remarks |
|
Default |
on |
on |
on |
on |
Other subdivisions can be customized. |
|
800 |
off |
on |
on |
on |
|
|
1600 |
on |
off |
on |
on |
|
|
3200 |
off |
off |
on |
on |
|
|
6400 |
on |
on |
off |
on |
|
|
12800 |
off |
on |
off |
on |
|
|
25600 |
on |
off |
off |
on |
|
|
51200 |
off |
off |
off |
on |
|
|
1000 |
on |
on |
on |
off |
|
|
2000 |
off |
on |
on |
off |
|
|
4000 |
on |
off |
on |
off |
|
|
5000 |
off |
off |
on |
off |
|
|
8000 |
on |
on |
off |
off |
|
|
10000 |
off |
on |
off |
off |
|
|
20000 |
on |
off |
off |
off |
|
|
40000 |
off |
off |
off |
off |
Product Description
Introducing Digital Stepper Driver - Unlocking Precision and Efficiency
The digital stepper driver is an advanced, multifunctional device that revolutionizes the way stepper motors are controlled. Designed with cutting-edge technology, the drive boasts a range of exceptional features that ensure outstanding performance, precision and efficiency. If you are looking for a reliable and efficient stepper driver, look no further than digital stepper drivers.
One of the key features of digital stepper drives is their unparalleled accuracy. The driver utilizes advanced signal processing algorithms to ensure precise control of stepper motors for seamless, smooth motion. With its microstep resolution capability, the drive achieves excellent positioning accuracy even in the most demanding applications.
Additionally, the digital stepper driver offers adjustable current control, allowing users to optimize motor performance while preventing overheating. This feature not only ensures the longevity of the stepper motor, but also reduces energy consumption, making it an environmentally friendly choice for businesses and individuals.
Product Information
In addition to accuracy and efficiency, digital stepper drives offer versatility. The driver features various input options such as pulse/direction or CW/CCW signals, making it compatible with a variety of control systems. This versatility makes it suitable for different industries, including robotics, automation, 3D printing, CNC machine tools, and more.
Additionally, digital stepper drivers are very user-friendly. Equipped with an intuitive interface and user-friendly control panel, it can be easily configured and customized as per specific requirements. Its compact size and simple installation process make it an easy choice for any stepper motor application.
Safety is also a top priority in digital stepper driver design. It has short-circuit protection, over-voltage protection, over-temperature protection and other functions to ensure reliable and safe operation of the stepper motor under various conditions. This driver gives you peace of mind knowing your device is protected from potential damage.
In summary, digital stepper drivers are a game-changer in stepper motor control. Its outstanding features, including accuracy, efficiency, versatility, user-friendliness and safety, make it ideal for a variety of applications. Upgrade your stepper motor control system today and experience the enhanced performance and reliability of digital stepper drivers.
-
