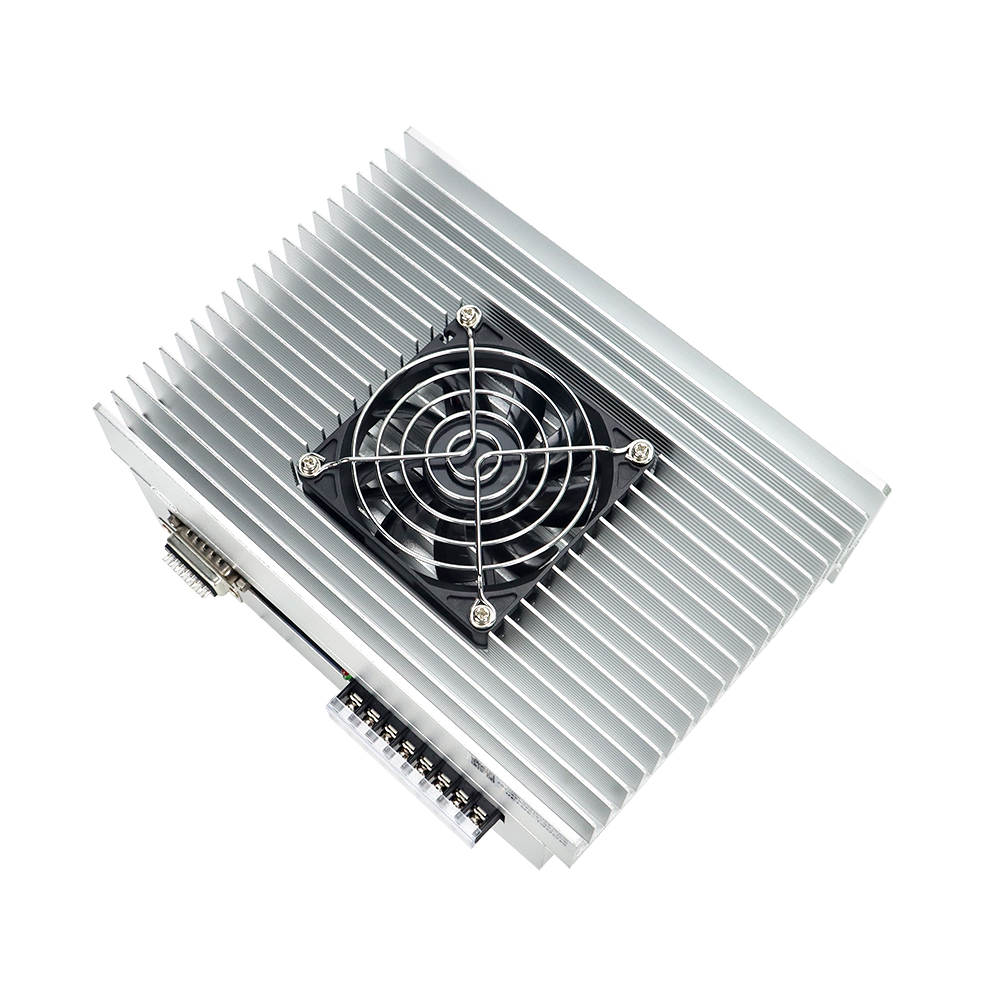

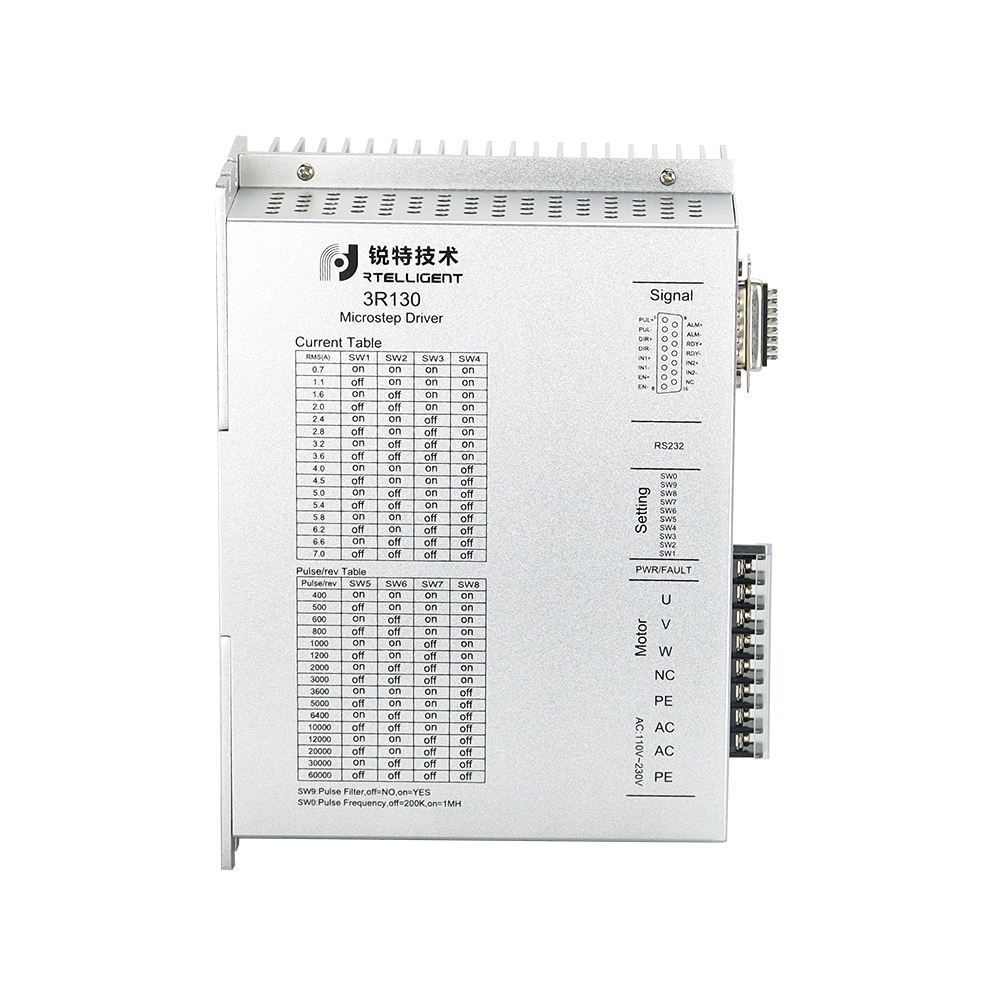

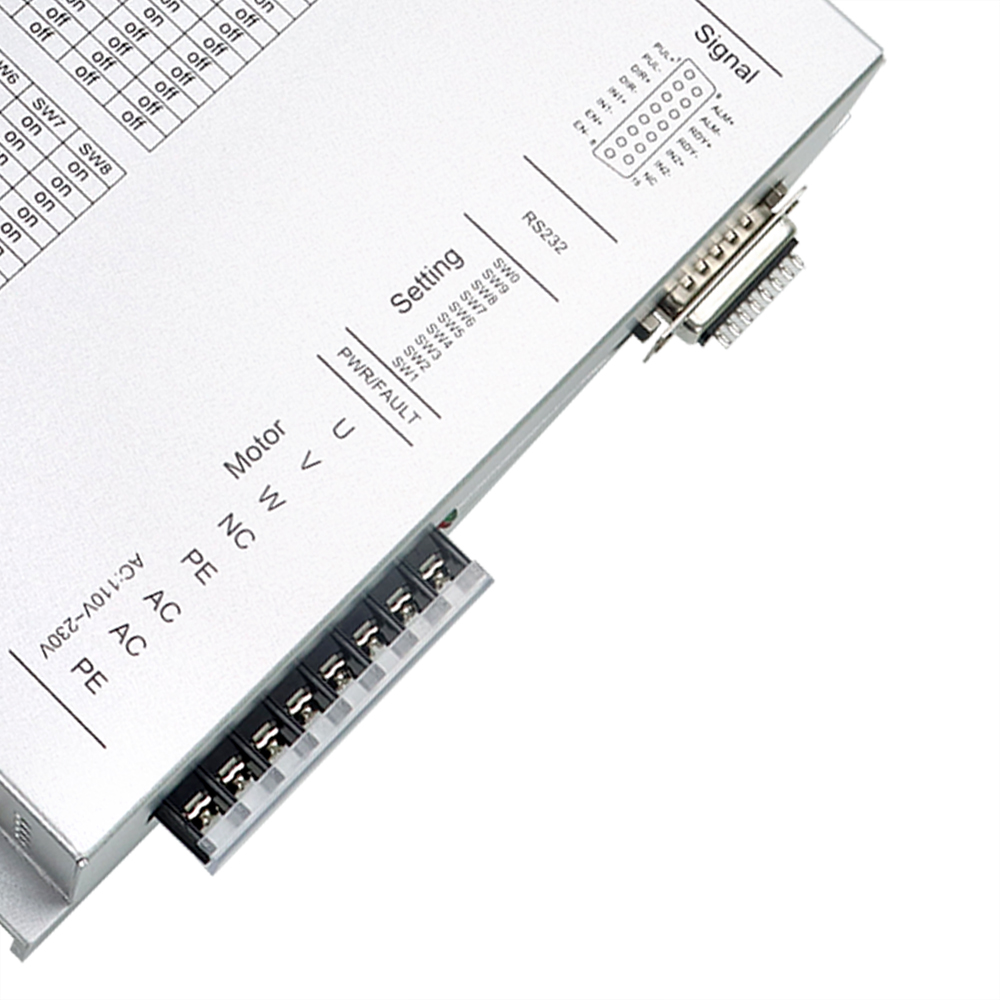

Advanced Pulse Control Digital Stepper Driver R130

The R130 digital 2-phase stepper drive is based on 32-bit DSP platform, with built-in micro-stepping technology & auto

tuning of parameters, featuring of low noise,low vibration, low heating and high-speed high torque output. It can be used

in most applications of stepper motor.

R130 is used to drive two-phase stepper motors base below 130mm

•  Pulse mode: PUL & DIR

•  Signal level: 3.3~24V compatible; series resistance not required for the application of PLC.

•  Power voltage: 110~230V AC;

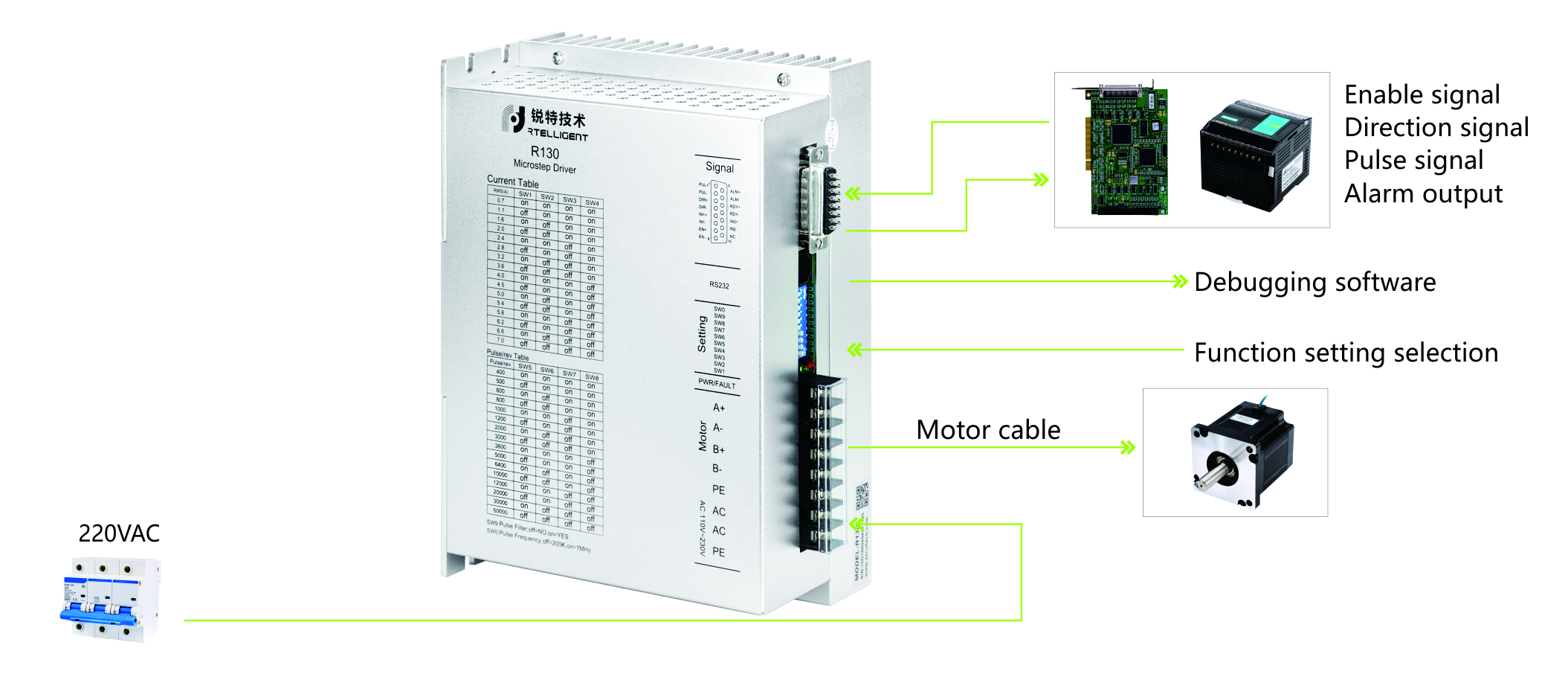

•  Typical applications: engraving machine, cutting machine, screen printing equipment, CNC machine, automatic assembly

•  equipment, etc.
