Classic 2 Phase Open loop Stepper Drive Series
Classic 2 Phase Open loop Stepper Drive Series

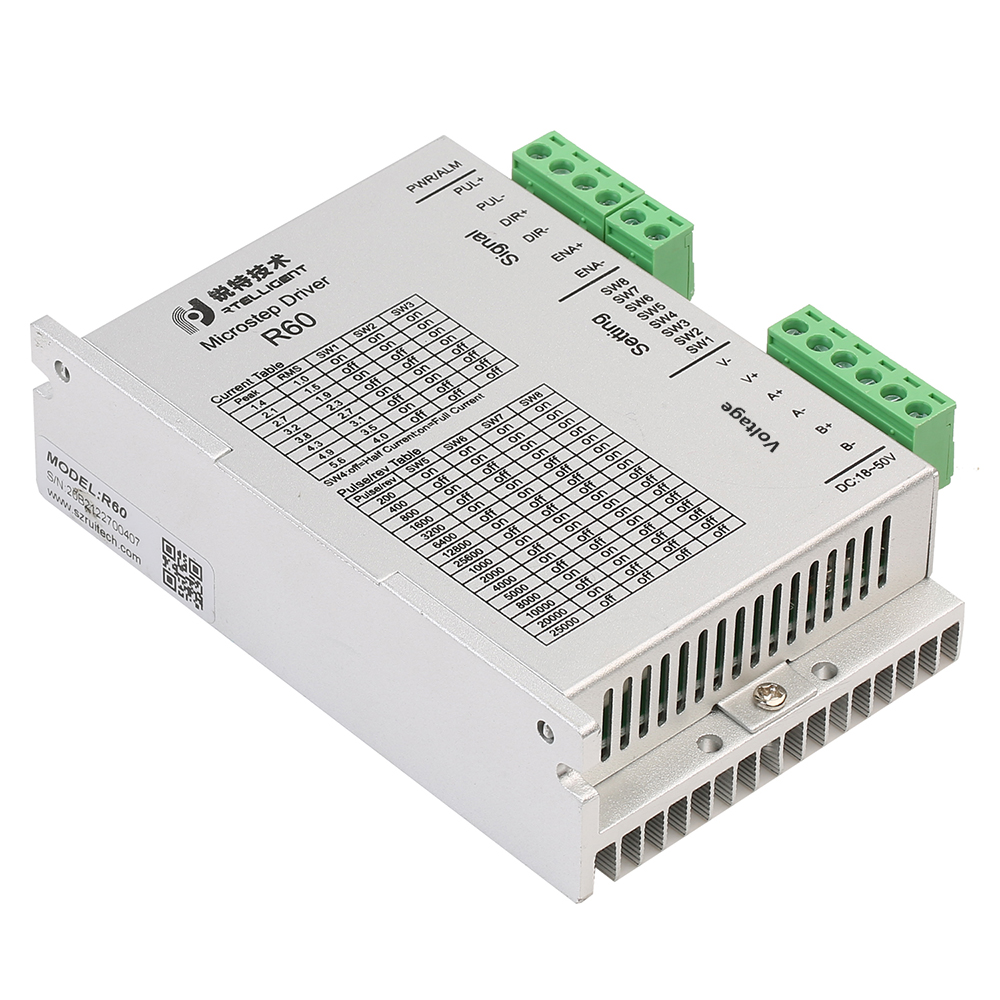

Product Introduction

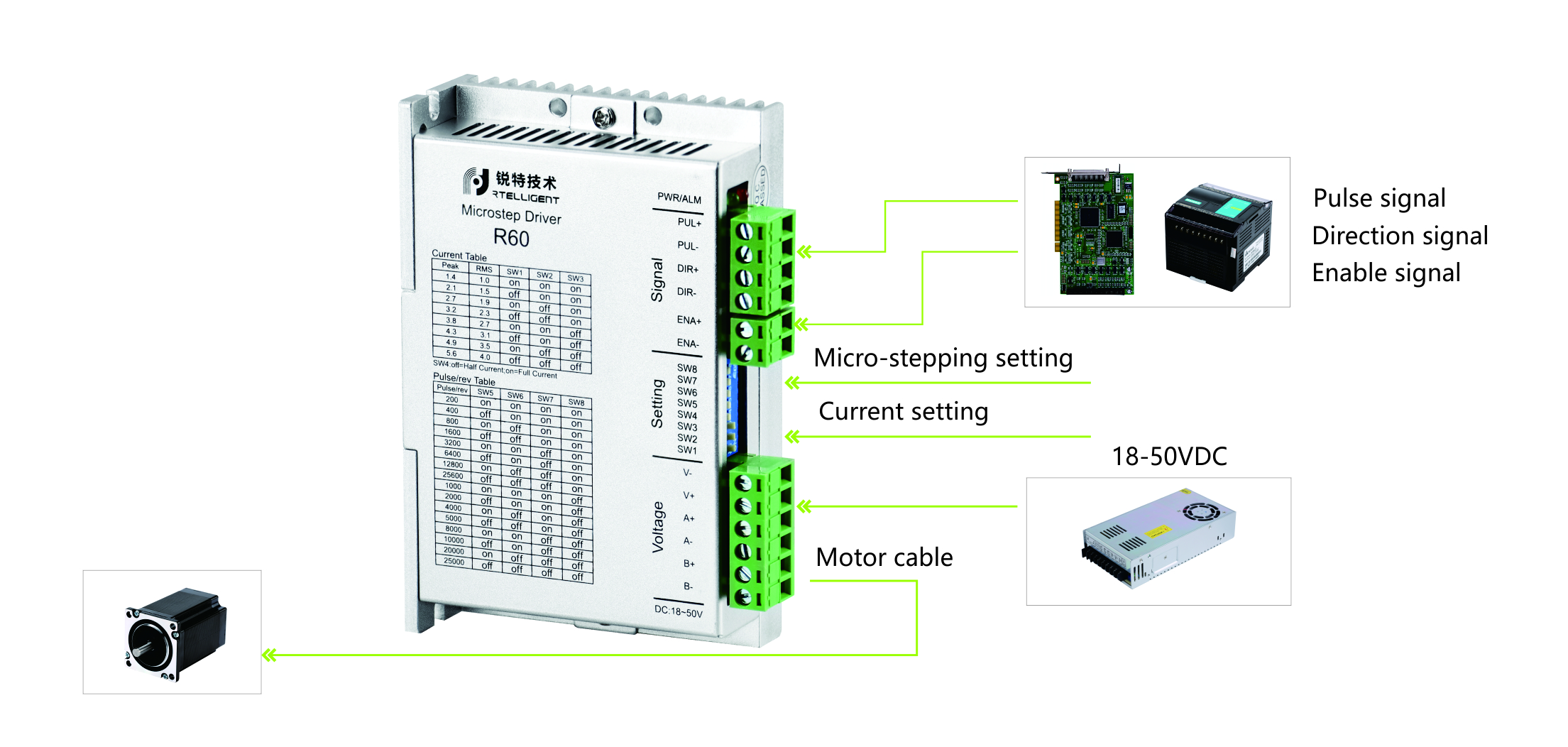

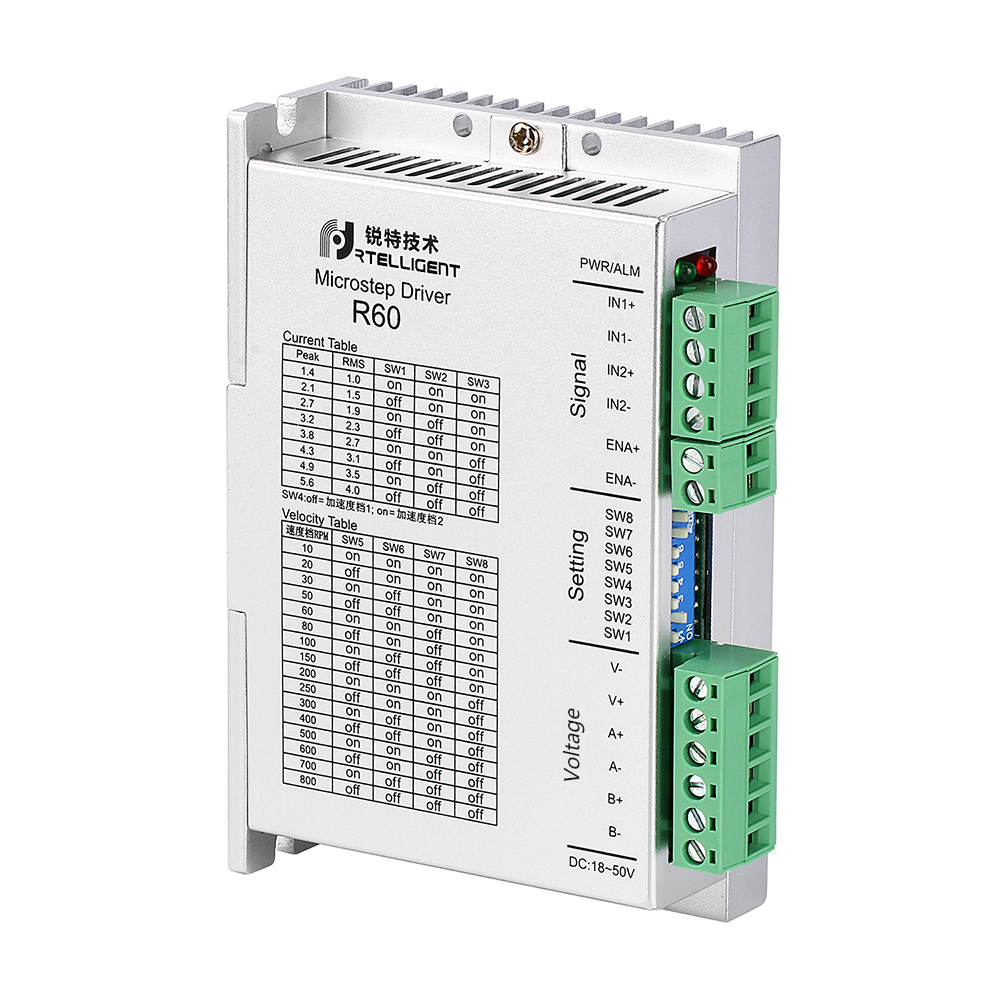

Connection
Features
| Power supply | 18 – 50VDC |
| Output Current | DIP switch setting, 8 options, Up to 5.6 amps（peak value） |
| Current control | PID current control algorithm |
| Micro-stepping settings | DIP switch settings, 16 options |
| Speed range | Use the suitable motor，up to 3000rpm |
| Resonance suppression | Automatically calculate the resonance point and inhibit the IF vibration |
| Parameter adaption | Automatically detect the motor parameter when driver initialize, optimize the controlling performance |
| Pulse mode | Support direction & pulse, CW/CCW double pulse |
| Pulse filtering | 2MHz digital signal filter |
| Idle current | The current is automatically halved after the motor stops running |
Current Setting
|
Peak Current |
Average Current |
SW1 |
SW2 |
SW3 |
Remarks |
|
1.4A |
1.0A |
on |
on |
on |
Other current can be customized. |
|
2.1A |
1.5A |
off |
on |
on |
|
|
2.7A |
1.9A |
on |
off |
on |
|
|
3.2A |
2.3A |
off |
off |
on |
|
|
3.8A |
2.7A |
on |
on |
off |
|
|
4.3A |
3.1A |
off |
on |
off |
|
|
4.9A |
3.5A |
on |
off |
off |
|
|
5.6A |
4.0A |
off |
off |
off |
Micro-stepping Setting
|
Steps/revolution |
SW5 |
SW6 |
SW7 |
SW8 |
Remarks |
|
200 |
on |
on |
on |
on |
Other subdivisions can be customized. |
|
400 |
off |
on |
on |
on |
|
|
800 |
on |
off |
on |
on |
|
|
1600 |
off |
off |
on |
on |
|
|
3200 |
on |
on |
off |
on |
|
|
6400 |
off |
on |
off |
on |
|
|
12800 |
on |
off |
off |
on |
|
|
25600 |
off |
off |
off |
on |
|
|
1000 |
on |
on |
on |
off |
|
|
2000 |
off |
on |
on |
off |
|
|
4000 |
on |
off |
on |
off |
|
|
5000 |
off |
off |
on |
off |
|
|
8000 |
on |
on |
off |
off |
|
|
10000 |
off |
on |
off |
off |
|
|
20000 |
on |
off |
off |
Off |
|
|
25000 |
off |
off |
off |
off |
Product Description
Introducing our classic family of two-phase open-loop stepper drives designed to deliver superior performance and accuracy for a variety of industrial applications. This advanced family of stepper drives incorporates cutting-edge features, making them a reliable and versatile choice for any automation system.
One of the main features of our classic two-phase open-loop stepper driver range is its high resolution. The drive's maximum microstep resolution is 25,600 steps per revolution, ensuring smooth, accurate motion control. This resolution enables precise positioning and reduces vibration, ultimately improving the overall efficiency and performance of the machine.
Another distinguishing feature of our classic two-phase open-loop stepper drive range is its excellent torque output. With a maximum holding torque of up to 5.2 Nm, the drive provides strong and reliable power for demanding applications. Whether you need to handle heavy loads or achieve high speeds, this drive delivers superior torque to meet your requirements.
Product Information
Additionally, our classic range of two-phase open-loop stepper drives are designed for easy operation and seamless integration into your automation system. With its user-friendly interface and simple wiring options, this driver minimizes installation time and reduces system setup complexity. Its compact design also allows for flexible installation, allowing you to integrate it into environments with limited space.
Additionally, our classic range of two-phase open loop stepper drivers offer an advanced protection system to protect your equipment. It has features such as overvoltage protection, overcurrent protection and short circuit protection to ensure the longevity of the stepper motor and minimize the risk of damage caused by electrical faults.
In summary, our range of classic two-phase open-loop stepper drives are reliable and high-performance solutions for precise motion control applications. With its high resolution, excellent torque output, user-friendly interface and advanced protection system, this drive is ideal for various industrial sectors. Trust our range of classic two-phase open-loop stepper drives to optimize the efficiency and accuracy of your automation systems.
-
Edit Rtelligent R60 User Manual
