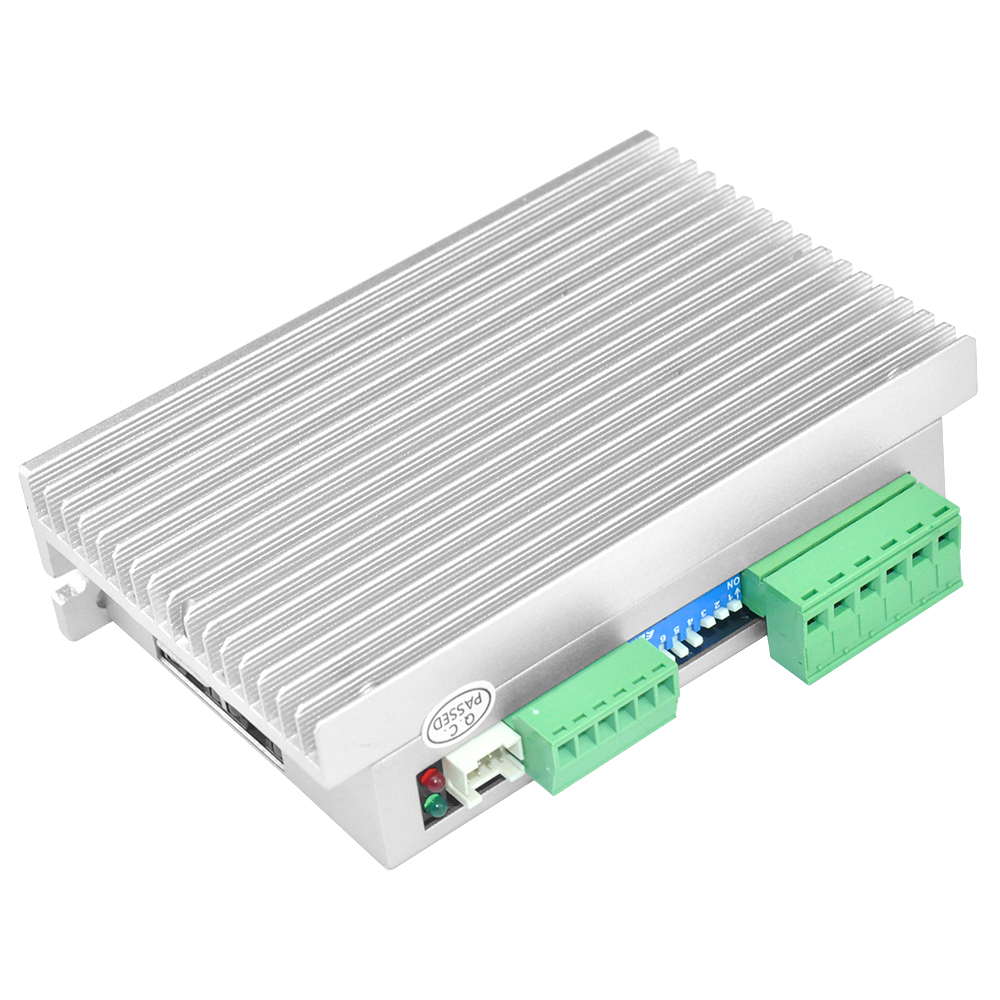

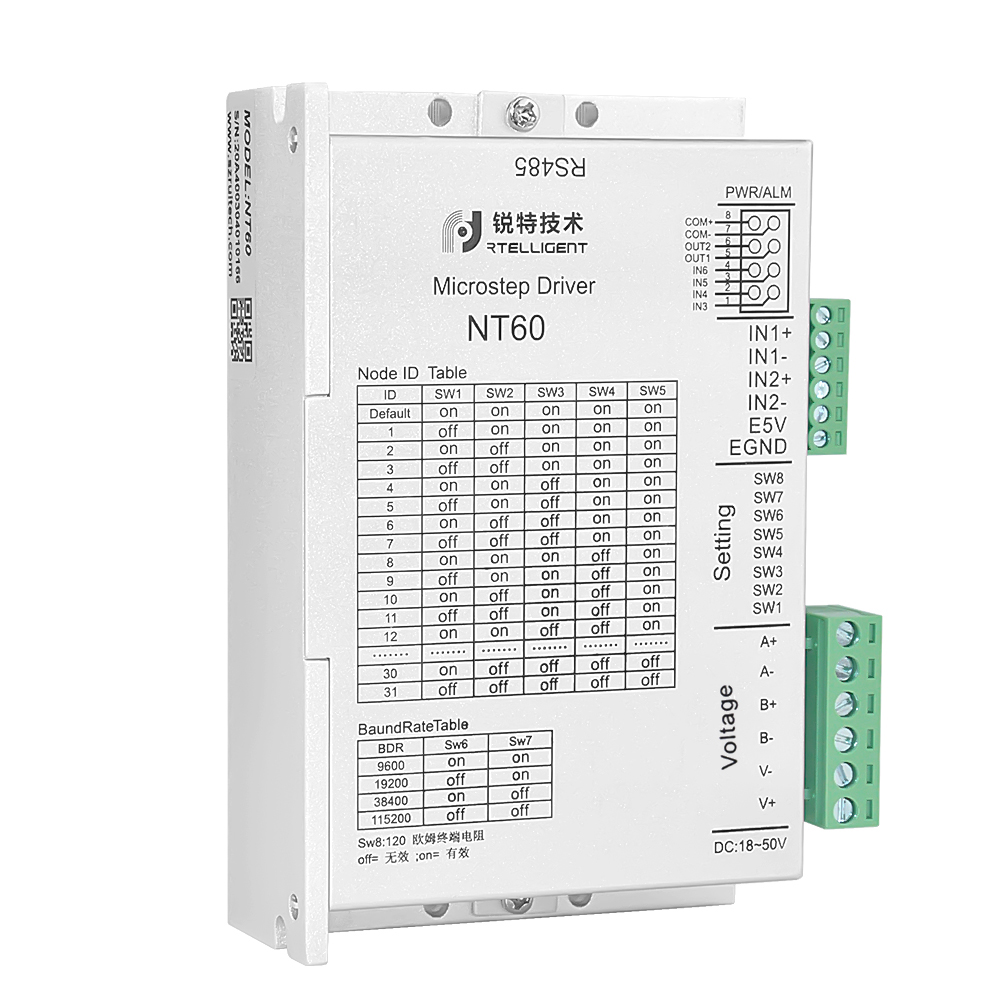

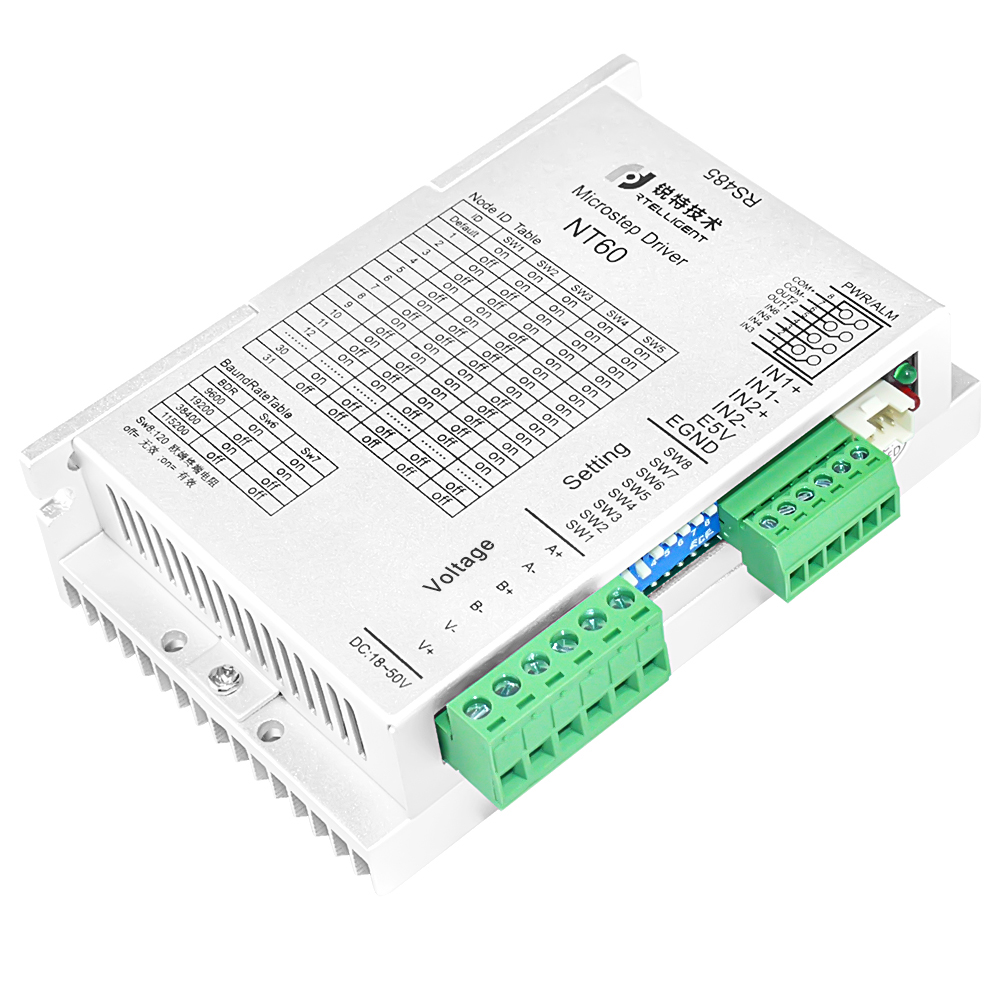

Closed Loop Fieldbus Stepper Drive NT60

•  Programmable small-size stepper motor drive
•  Operating voltage: 24~50VDC
•  Control method: Modbus/RTU
•  Communication: RS485
•  Maximum phase current output: 5A/phase (Peak)
•  Digital IO port:
6-channel photoelectric isolated digital signal input:

IN1 and IN2 are 5V differential inputs, which can also be connected as 5V single ended inputs;

IN3~IN6 are 24V single ended inputs, with a common anode connection method;

2-channel photoelectric isolated digital signal output:

The maximum withstand voltage is 30V, the maximum input or output current is 100mA, and the common cathode connection method is used.
