Cost-effective AC Servo Drive RS-CS/CR

Short Description:

RS series AC servo is a general servo product line developed by Rtelligent, covering the motor power range of 0.05 ~ 3.8kw. RS series supports ModBus communication and internal PLC function, and RSE series supports EtherCAT communication. RS series servo drive has a good hardware and software platform to ensure that it can be very suitable for fast and accurate position, speed, torque control applications.

• High stability, Easy and convenient debugging

• Type-c: Standard USB, Type-C Debug interface

• RS-485: with standard USB communication interface

• New front interface to optimize wiring layout

• 20Pin press-type control signal terminal without soldering wire, easy and fast operation

Send email to us

Product Detail

Download

Product Tags

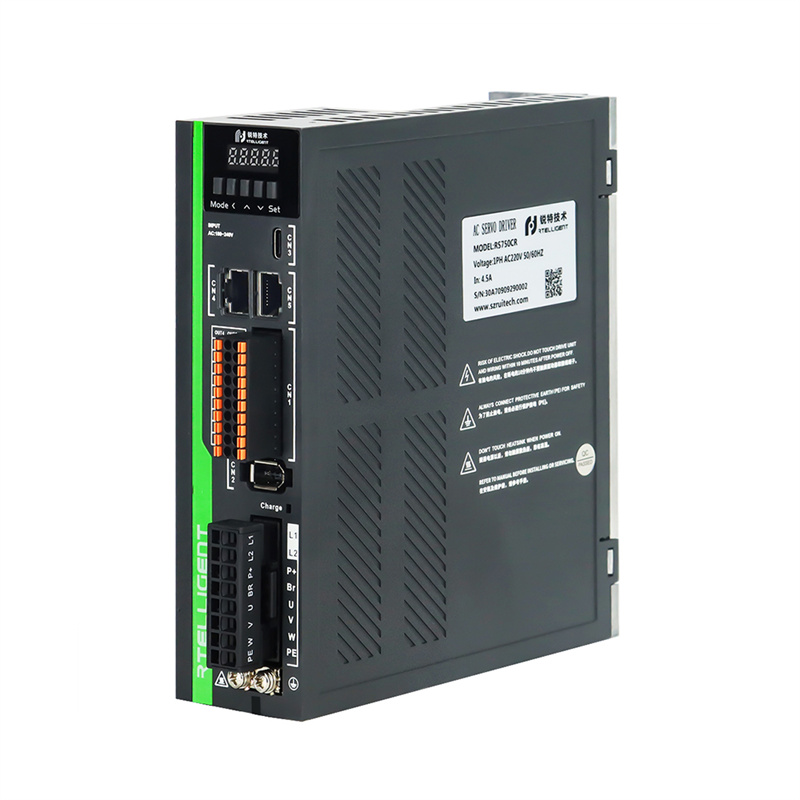

Product Introduction

NEW RS-CS/CR series AC servo drive, based on DSP+FPGA hardware platform, adopts a new generation of software control algorithm, and has better performance in terms of stability and high-speed response. The RS-CR series supports 485 communication, which can be applied to different application environments.

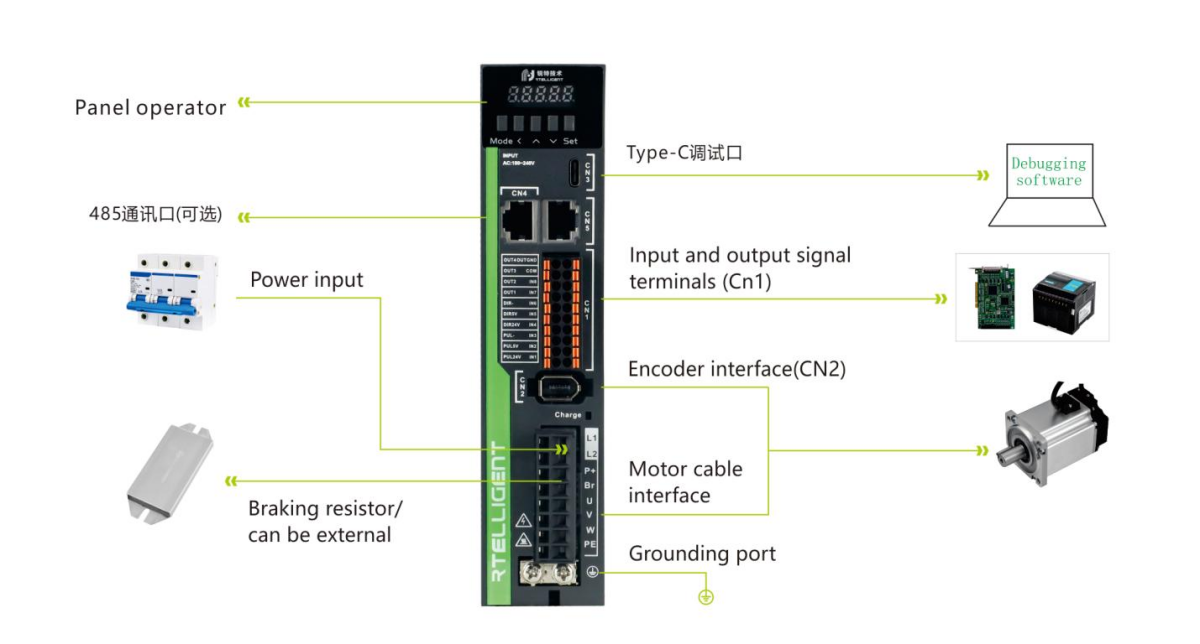

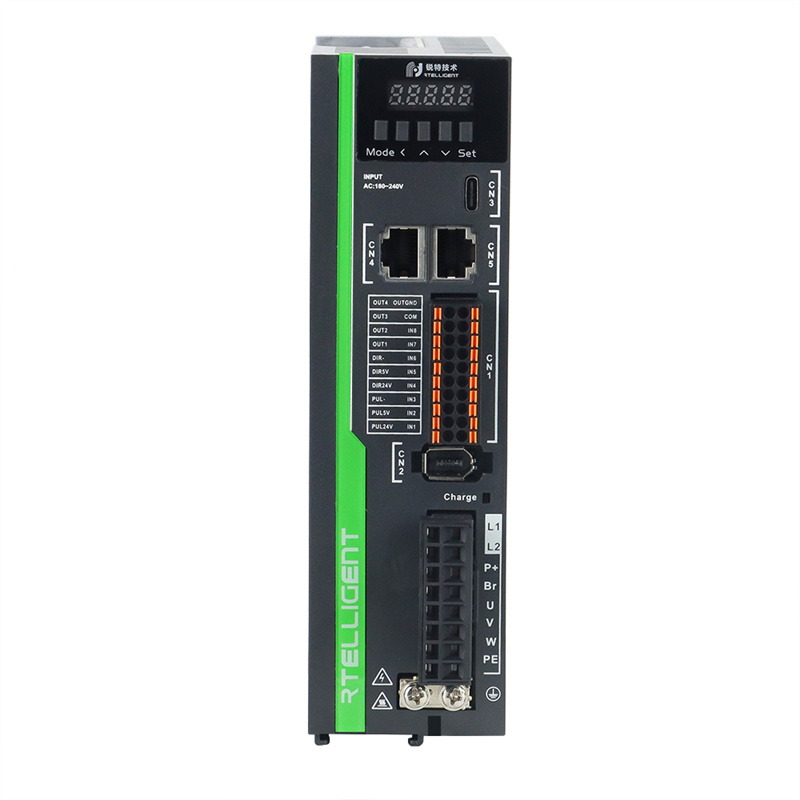

Connection

Features

Item	Description
Control mode	IPM PWM control, SVPWM drive mode
Encoder type	Match 17~23Bit optical or magnetic encoder, support absolute encoder control
Pulse input specifications	5V differential pulse/2MHz; 24V single-ended pulse/200KHz
Universal input	8 channels, support 24V common anode or common cathode
Universal output	4 single-ended, single-ended: 50mA

Basic Parameters

Model	RS400-CR/RS400-CS	RS750-CR/RS750-CS
Rated power	400W	750W
Continuous current	3.0A	5.0A
Maximum current	9.0A	15.0A
Power supply	Single-phase 220VAC
Size code	Type A	Type B
Size	17515640	17515651
