DRV Series Low Voltage Servo Driver User Manual

Short Description:

Low-voltage servo is a servo motor designed to be suitable for low-voltage DC power supply applications. DRV series low voltage servo system supports CANopen, EtherCAT, 485 three communication modes control, network connection is possible. DRV series low-voltage servo drives can process encoder position feedback to achieve more accurate current and position control.

• Power range up to 1.5kw

• Encoder resolution up to 23bits

• Excellent anti-interference ability

• Better hardware and high reliability

• With brake output

Send email to us

Product Detail

Download

Product Tags

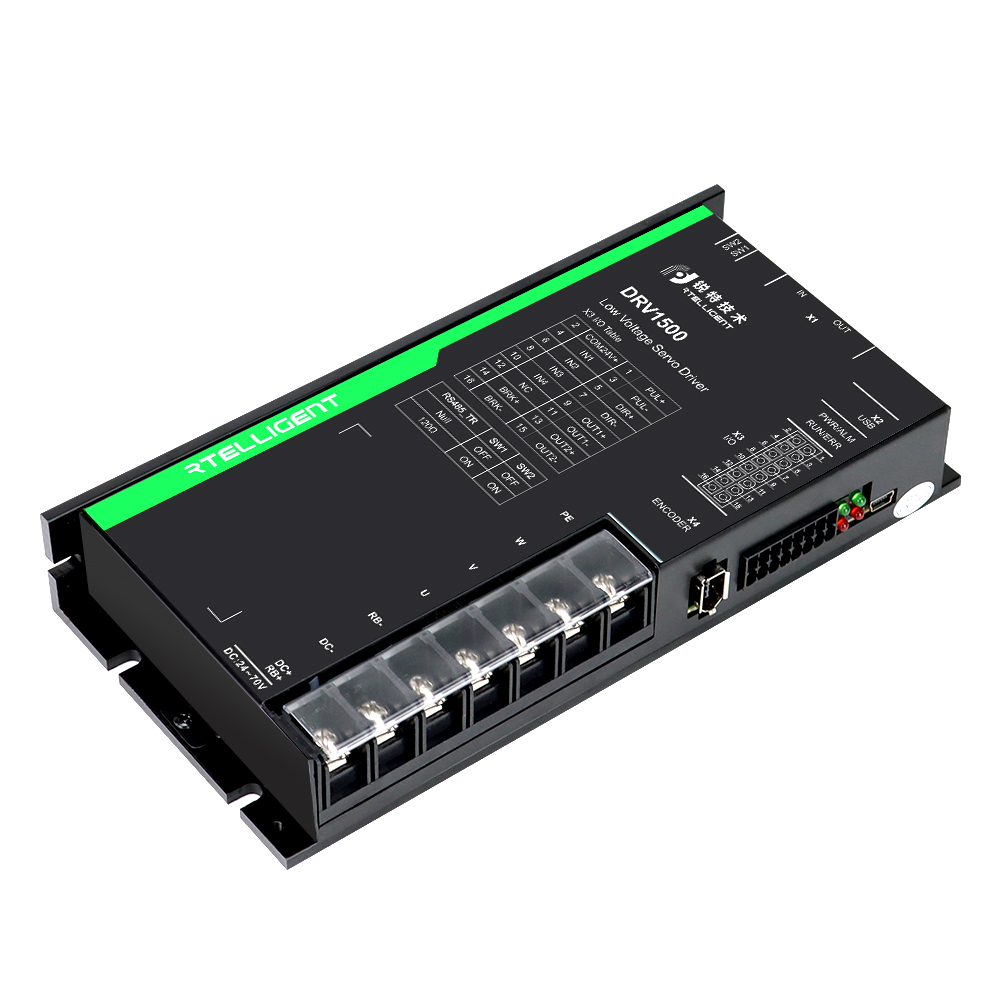

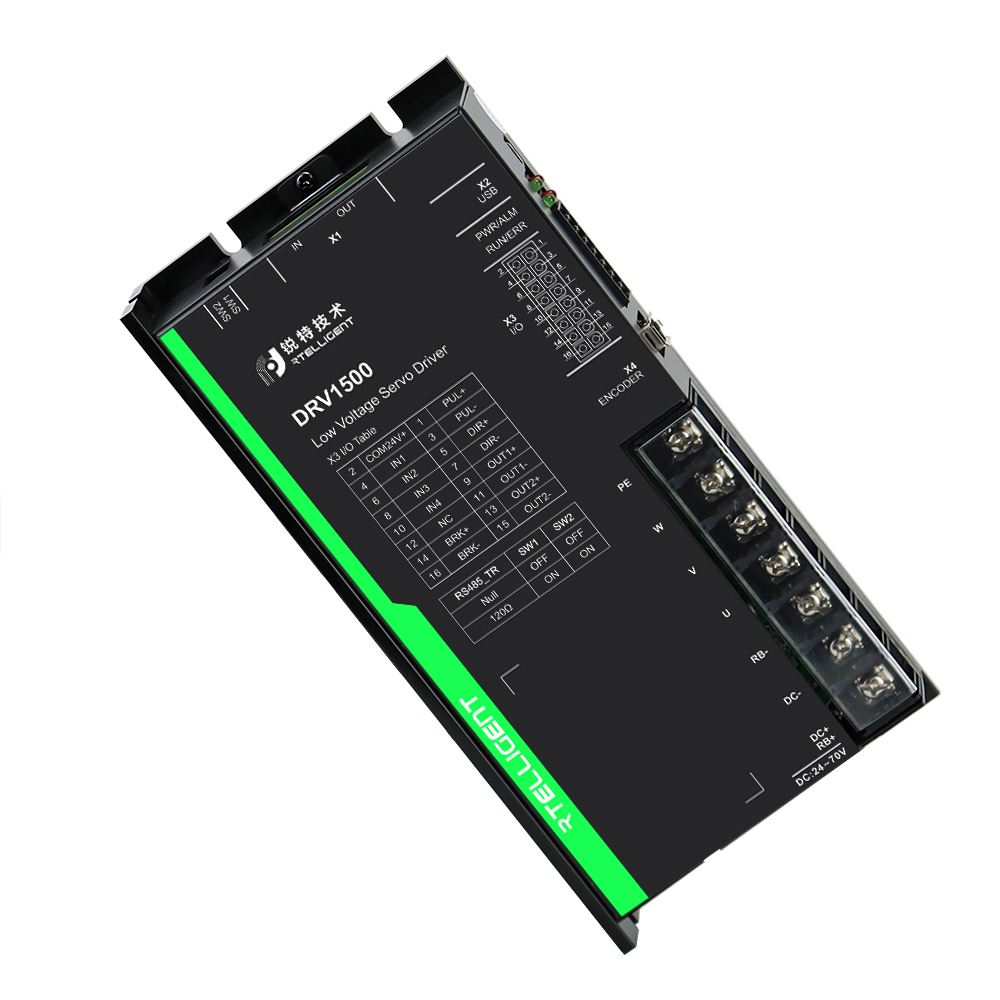

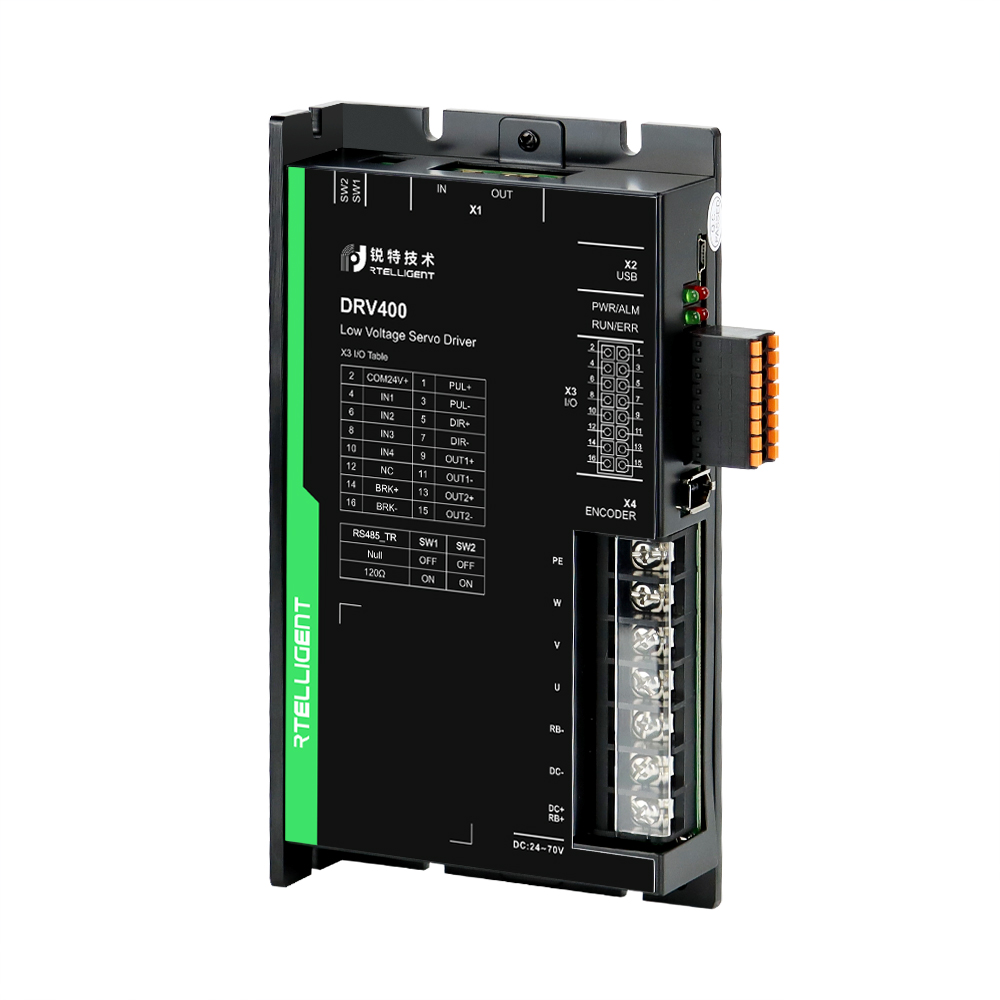

Product Introduction

DRV series low-voltage servo drive is a low-voltage servo scheme with higher performance and stability, which is mainly developed on the basis of excellent performance of high-voltage servo.DRV series control platform is based on DSP+FPGA, with high speed response bandwidth and positioning accuracy, which is suitable for various low-voltage and high current servo applications.

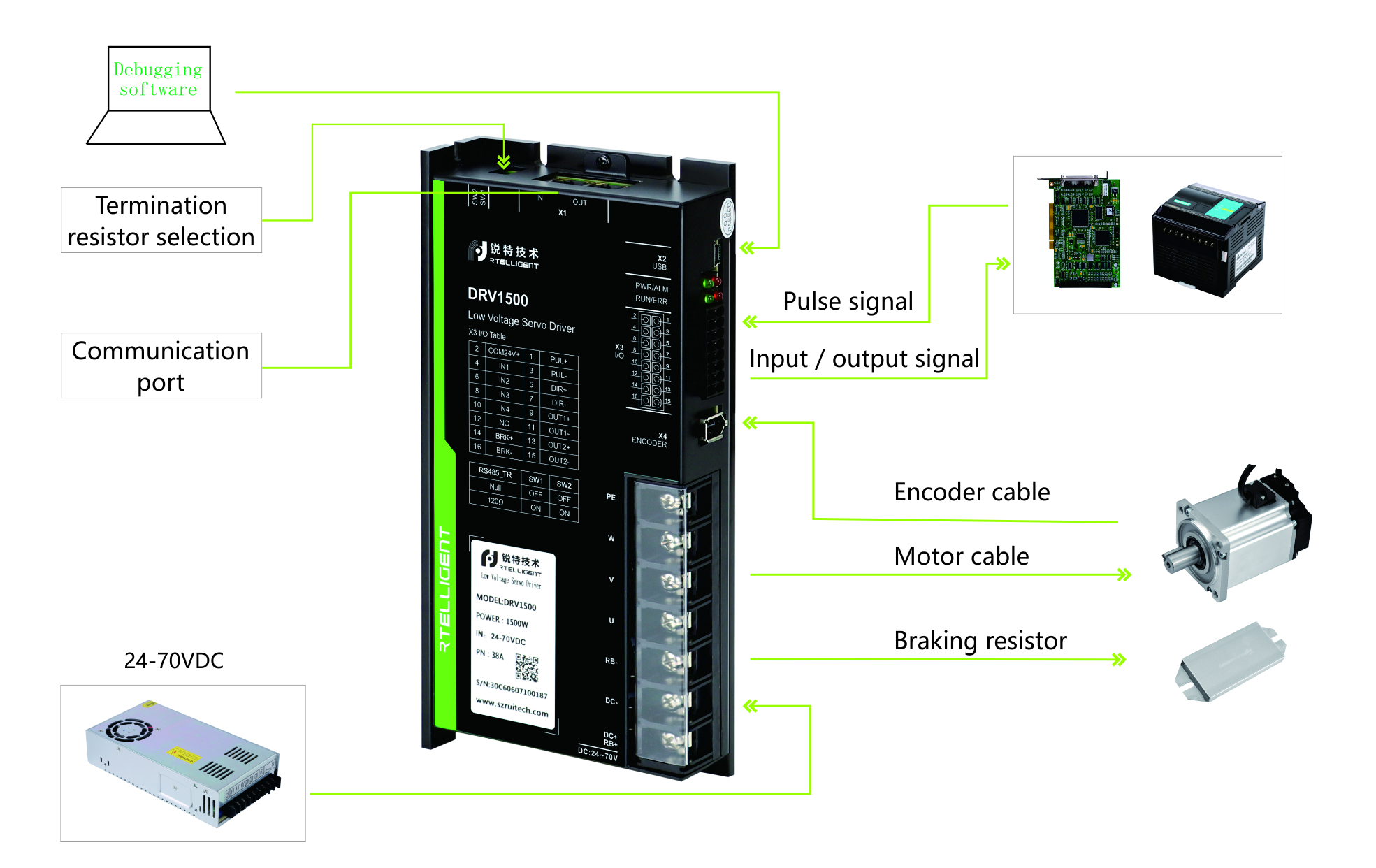

Connection

Specifications

Item	Description
Driver model	DRV400	DRV750	DRV1500
Continuous output current Arms	12	25	38
Maximum output current Arms	36	70	105
Main circuit power supply	24-70VDC
Brake processing function	Brake resistor external
Control mode	IPM PWM control, SVPWM drive mode
Overload	300% (3s)
Communication interface	RS485

Matched Motors

Model	RS100	RS200	RS400	RS750	RS1000	RS1500	RS3000
Rated power	100W	200W	400W	750W	1KW	1.5KW	3KW
Continuous current	3.0A	3.0A	3.0A	5.0A	7.0A	9.0A	12.0A
Maximum current	9.0A	9.0A	9.0A	15.0A	21.0A	27.0A	36.0A
Power supply	Single-phase 220VAC			Single-phase 220VAC			Single-phase/Three-phase 220VAC
Size code	Type A			Type B			Type C
Size	17515640			17515651			19617672
