Product Introduction

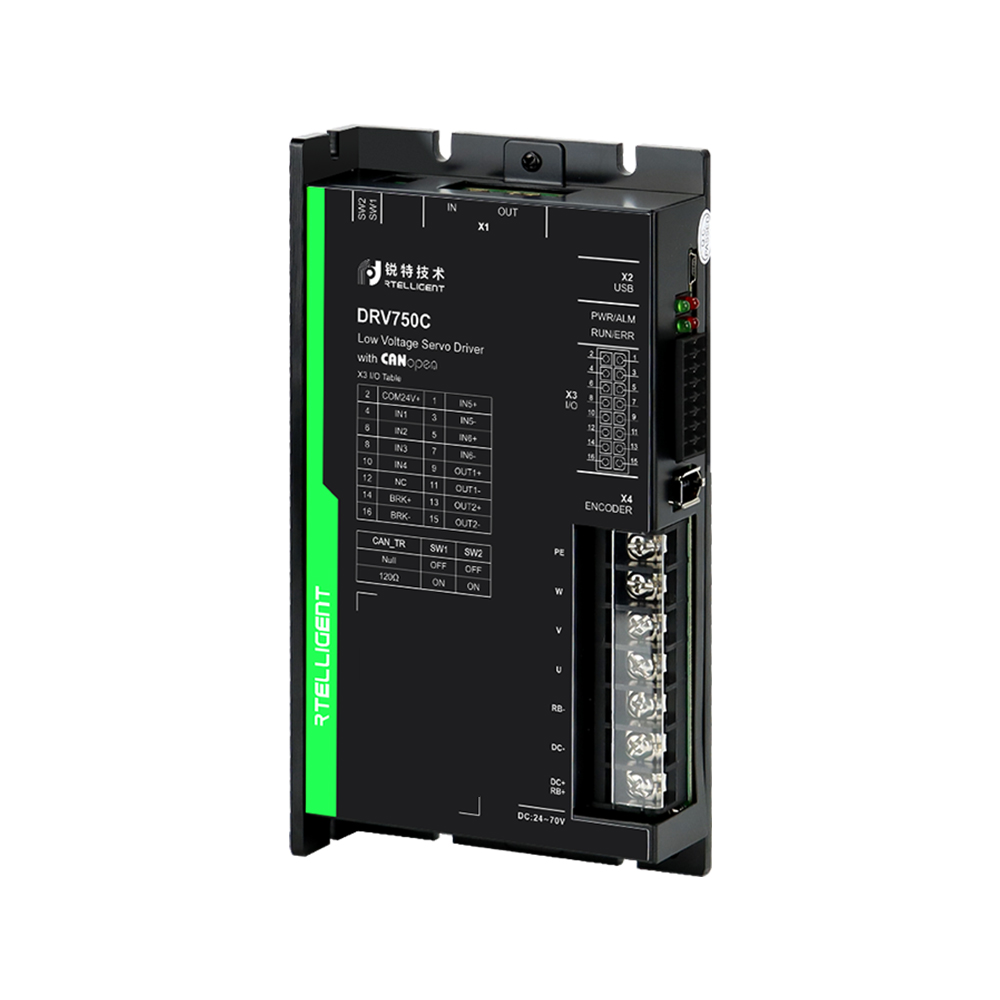

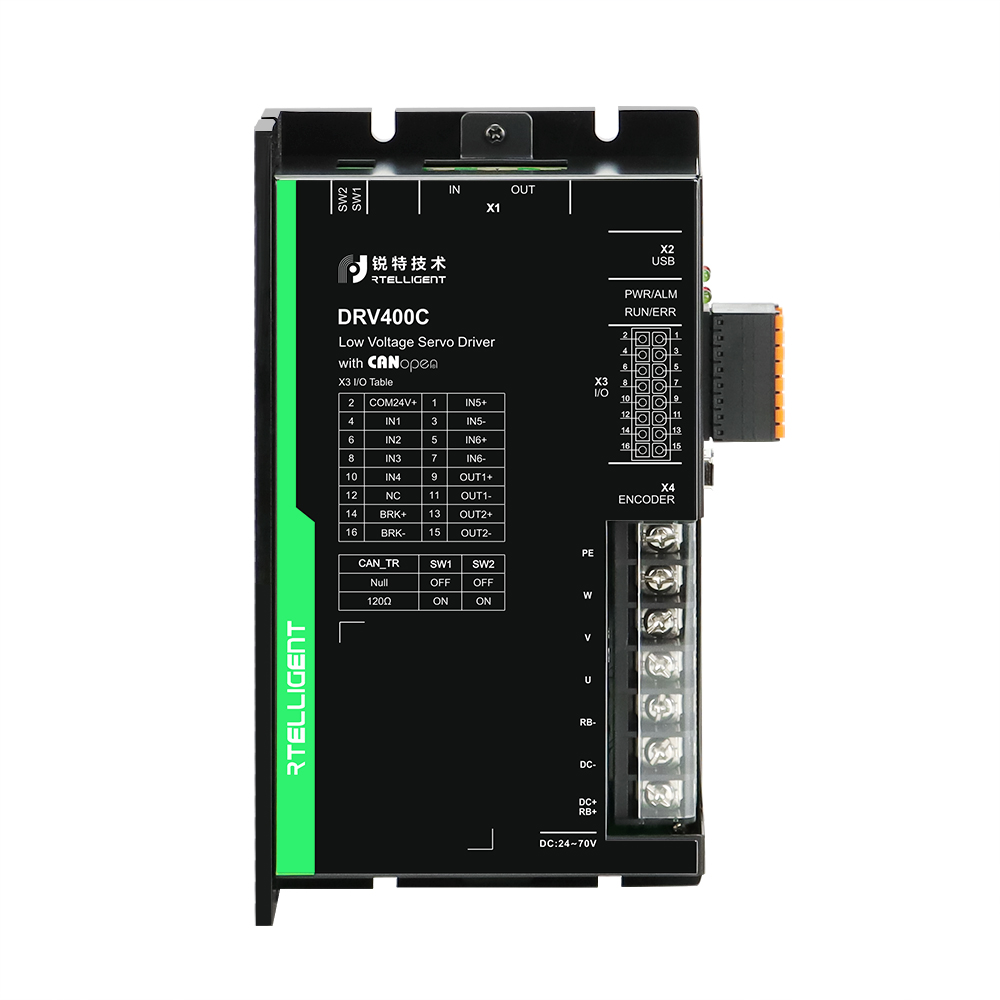

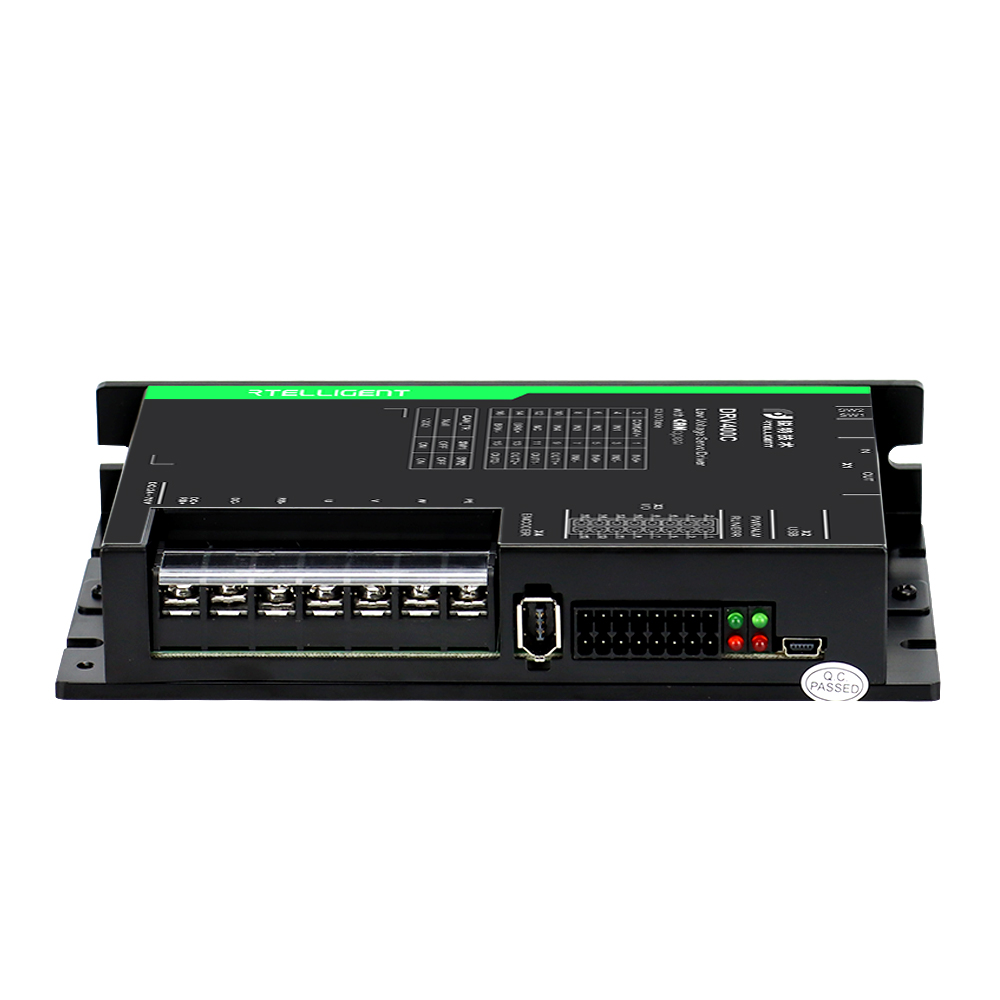

DRVC series low-voltage servo drive is a low-voltage servo scheme with higher performance and stability, which is mainly developed on the basis of excellent performance of high-voltage servo.DRV series control platform is based on DSP+FPGA, with high speed response bandwidth and positioning accuracy, which is suitable for various low-voltage and high current servo applications.

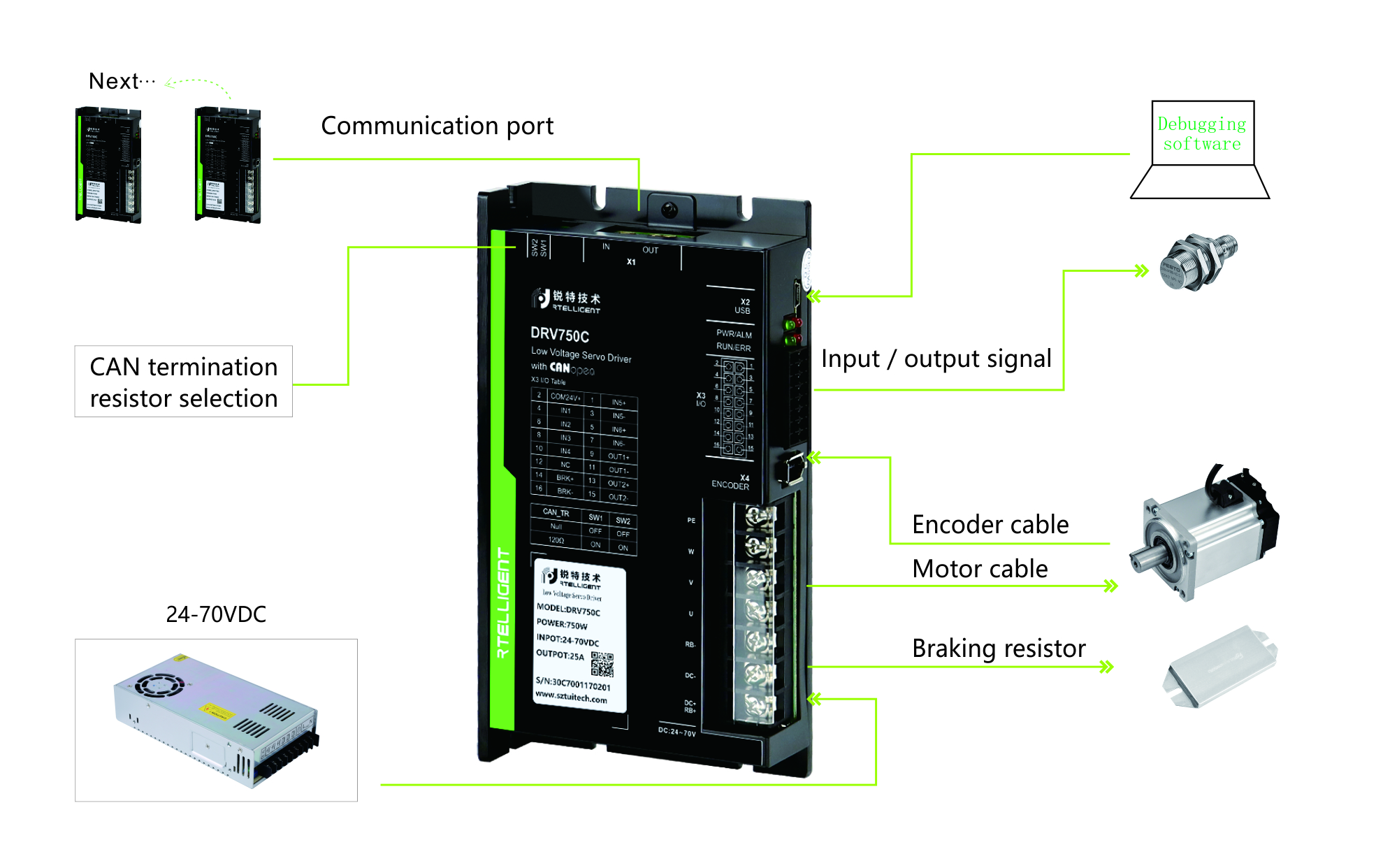

Connection
Specifications
| Item | Description | ||
| Driver model | DRV400C | DRV750C | DRV1500C |
| Continuous output current Arms | 12 | 25 | 38 |
| Maximum output current Arms | 36 | 70 | 105 |
| Main circuit power supply | 24-70VDC | ||
| Brake processing function | Brake resistor external | ||
| Control mode | IPM PWM control, SVPWM drive mode | ||
| Overload | 300% (3s) | ||
| Communication interface | CANopen | ||
Matched Motors
|
Motor model |
TSNA series |
|
Power range |
50w ~ 1.5kw |
|
Voltage range |
24-70VDC |
|
Encoder type |
17-bit, 23-bit |
|
Motor size |
40mm, 60mm, 80mm, 130mm frame size |
|
Other requirements |
Brake, oil seal, protection class, shaft & connector can be customized |
Product Information
The DRVC series low-voltage servo driver is a state-of-the-art solution that enhances the performance and precision of servo motors in industrial applications. With its high efficiency, advanced control algorithm, user-friendly interface, robust protection, and adaptability, this innovative servo driver stands out among its competitors.One of the key features of the DRVC series is its high efficiency, achieved through advanced electronic circuitry. This maximizes motor output while minimizing energy wastage and heat generation, resulting in a longer lifespan and cost-effectiveness.
The servo driver also features a cutting-edge control algorithm, enabling precise and smooth motion control. With its high-resolution encoder feedback system, the DRVC series ensures accurate positioning and velocity control, enabling seamless operation in complex and demanding tasks.
The DRVC series low-voltage servo driver is user-friendly, with an intuitive interface for easy parameter adjustment and monitoring. This simplifies the setup and configuration process, saving time and effort for users.
Safety and reliability are ensured through the servo driver's robust protection mechanism. Built-in functions such as over-voltage, over-current, and over-temperature protection protect both the motor and the driver, ensuring uninterrupted operation and minimizing the risk of damage or system failure.
The DRVC series is designed to be adaptable to a wide range of operating conditions. It supports multiple control modes, including position, velocity, and torque control, catering to diverse application requirements. The compact and lightweight design allows for easy integration into existing systems, making it suitable for industries such as robotics, automation, and manufacturing.
In summary, the DRVC series low-voltage servo driver offers exceptional features including high efficiency, precise motion control, user-friendly interface, robust protection, and adaptability. With its outstanding performance and reliability, this servo driver is set to revolutionize servo motor control and drive efficiency in industrial applications.
-
