Fieldbus Communication Slave IO Module
Fieldbus Communication Slave IO Module
Product Introduction

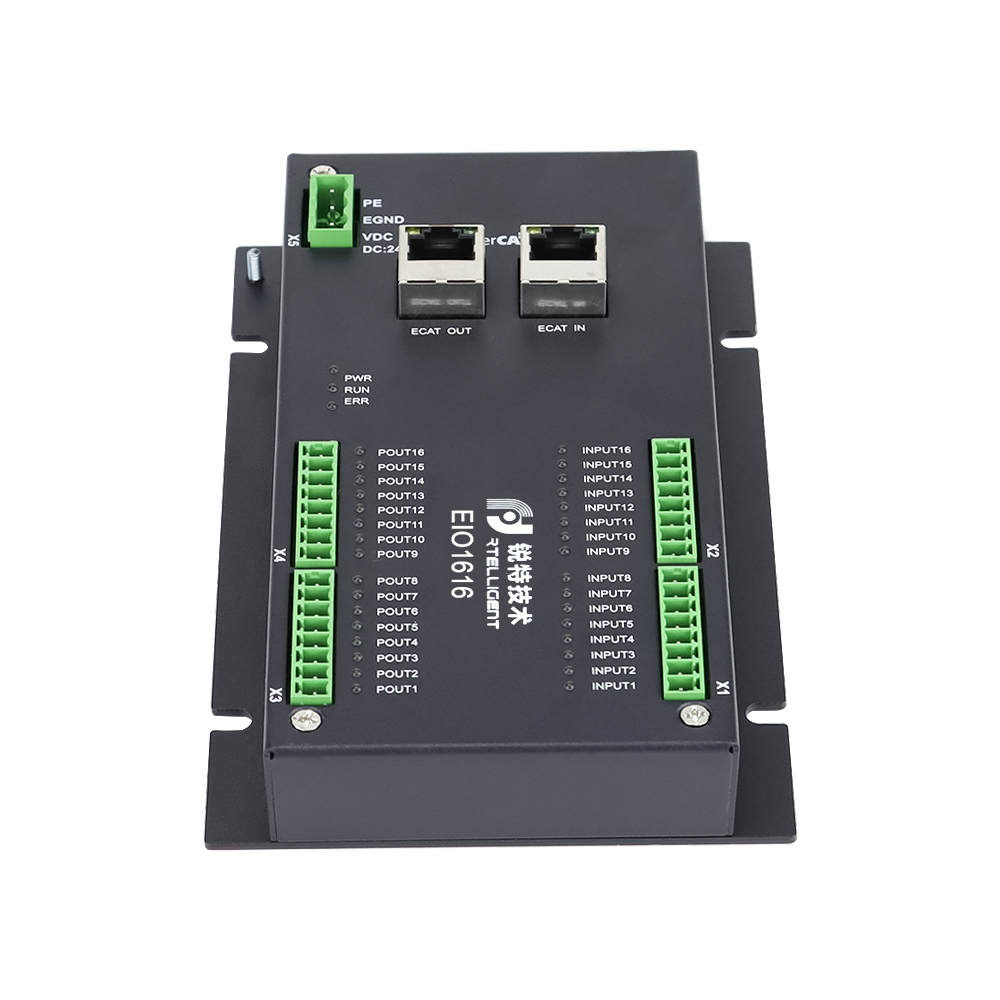

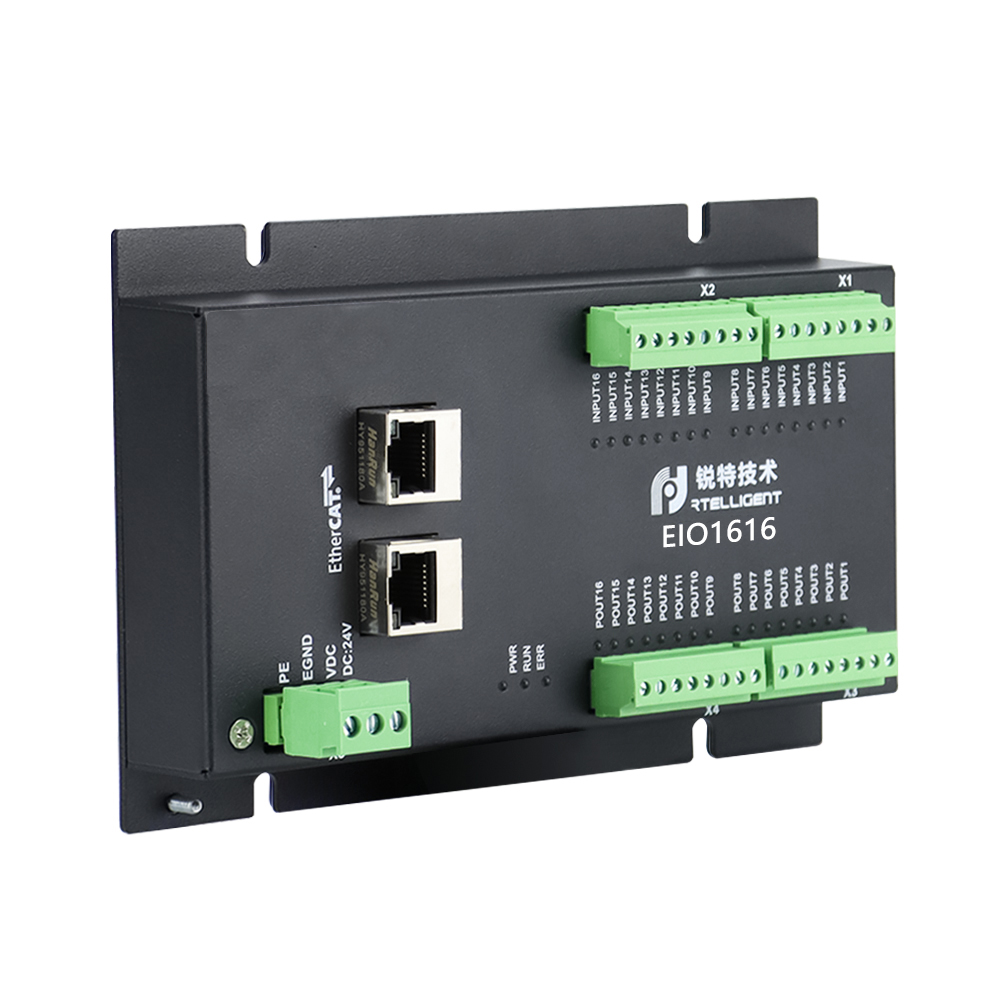

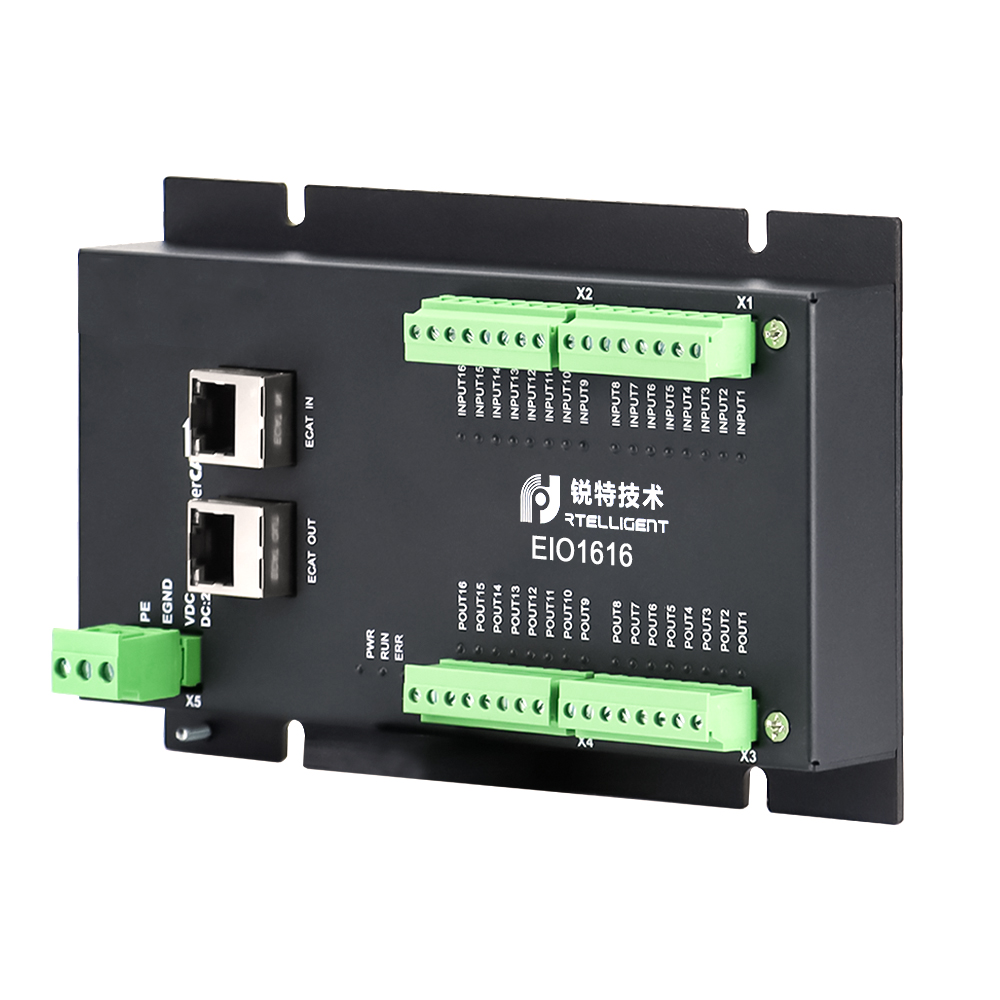

EIO1616 is a digital input and output extension module developed by Rtelligent based on EtherCAT bus communication. EIO1616 has 16 NPN single-ended common anode input ports and 16 common cathode output ports, 4 of which can be used as
PWM output functions. In addition, the series of extension modules have two installation ways for customers to choose.
● Communication mode: EtherCAT.
● Input and output: Input common anode 16/Output common cathode 16.
● Power supply voltage: 24VDC.
● PWM output: OUT11-OUT14, adjustable duty cycle 0~100%.
● Communication mode: EtherCAT.
● Input and output: Input common anode 16/Output common cathode 16.
● Power supply voltage: 24VDC.
● PWM output: OUT11-OUT14, adjustable duty cycle 0~100%.
*EIO1616B has no PWM output function, if you need this function, please choose EIO1616

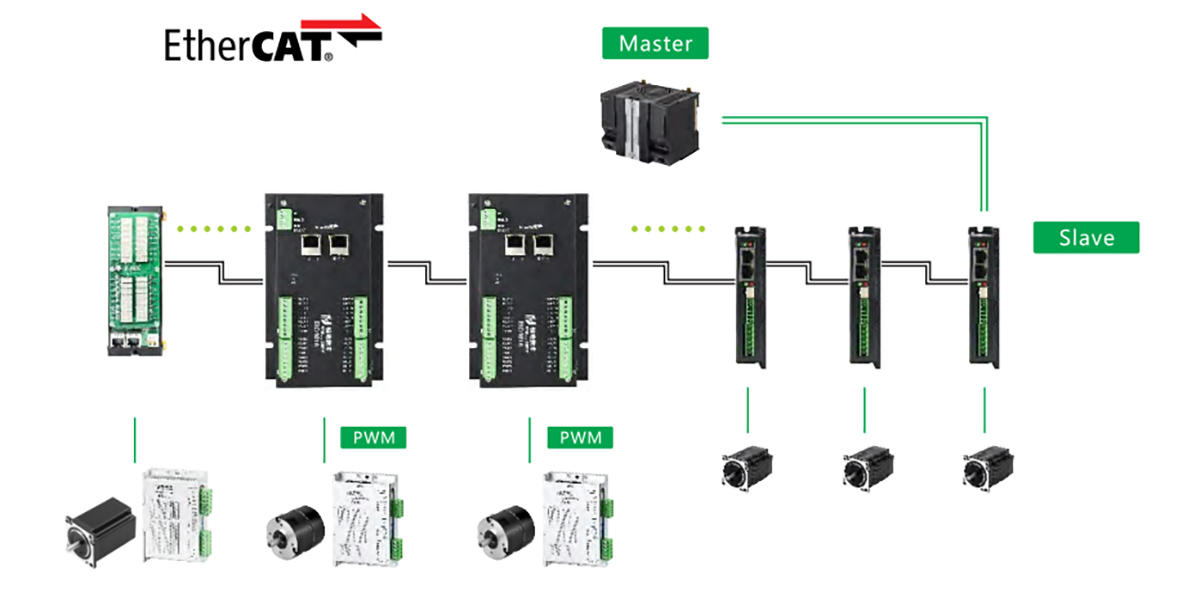

Connection
Electrical Characteristics
| Minimum | Normal | Maximum | |
| Supply voltage(V) | 15 | 24 | 30 |
| Output port current (mA) | 90 | 350 | 500 |
| Input interface current consumption(mA) | 5 | 10 | 30 |
| PWM frequency | 0.5K | 1K | 5KHz |
| Temperature range | -40 | --- | 85 |
-
Rtelligent EIO1616(RTEC1616) User Manual
