Fieldbus Open loop Stepper Drive ECR60X2A

Fieldbus Open loop Stepper Drive ECR60X2A

Short Description:

The EtherCAT fieldbus open loop stepper drive ECR60X2A is based on the CoE standard framework and complies with the CiA402 standard. The data transmission rate is up to 100Mb/s, and supports various network topologies.

ECR60X2A matches open loop stepper motors below 60mm.

•  Control modes: PP, PV, CSP, CSV, HM, etc

•  Power supply voltage: 18-80V DC

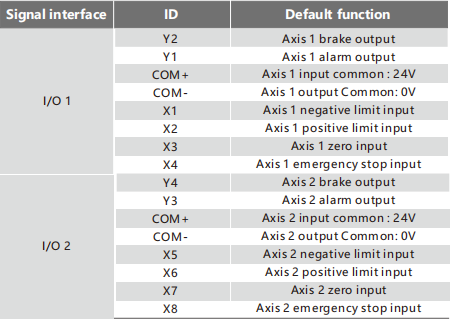

•  Input and output: 8-channel 24V common positive input; 4-channel optocoupler isolation outputs

•  Typical applications: assembly lines, lithium battery equipment, solar equipment, 3C electronic equipment, etc


icon icon

Product Detail

Download

Product Tags

Product Introduction

Open loop Stepper Driver
Open loop Stepper Driver
Stepper Driver

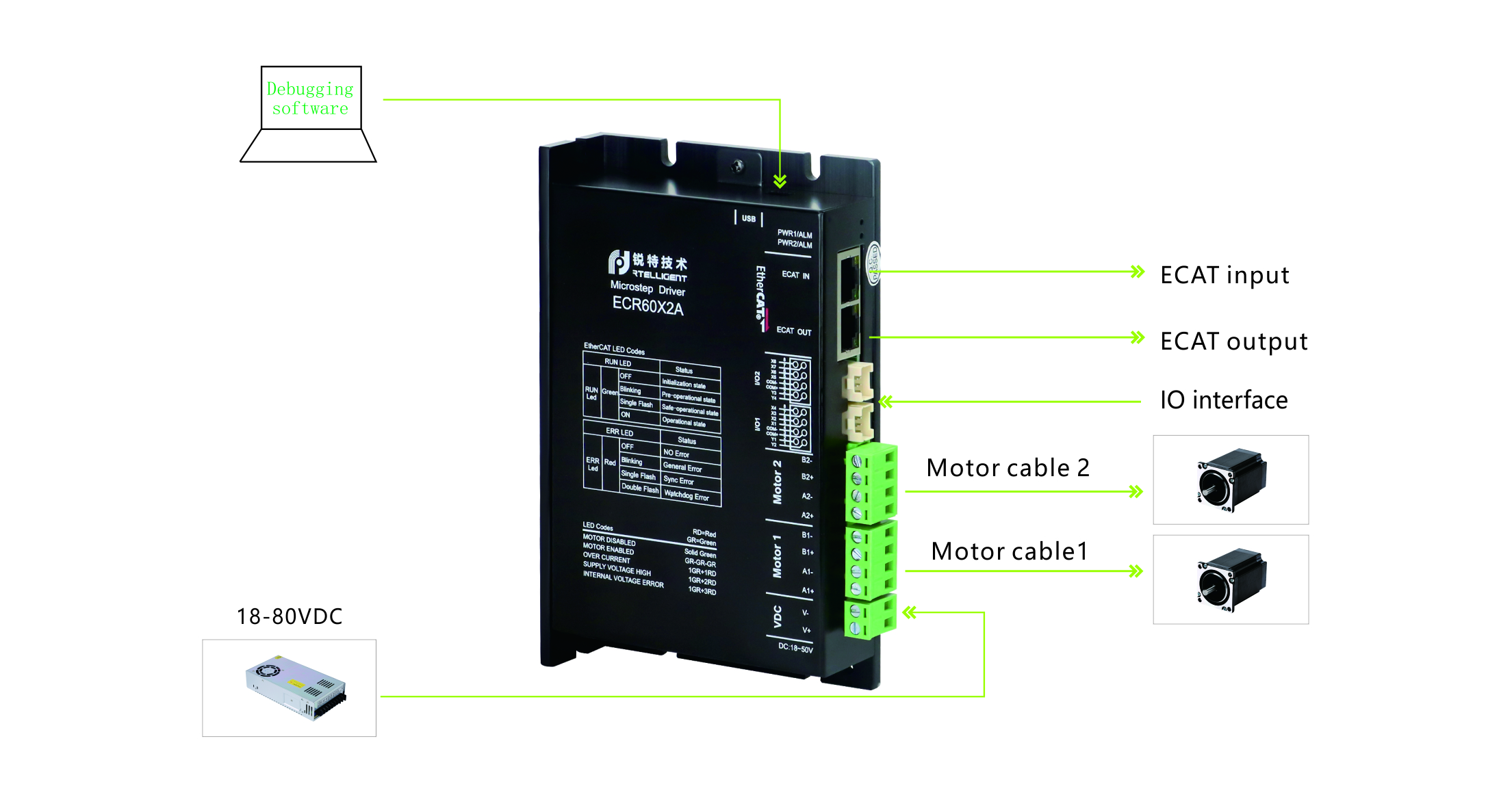

Connection

df

Function Setting

sdf

Product Description

Introducing revolutionary fieldbus open loop stepper driver: enhancing the way you drive stepper motors

Are you looking for a cutting-edge solution to revolutionize the way you control and drive stepper motors? Look no further as we introduce you to the new fieldbus open loop stepper driver. This state-of-the-art product combines the latest technology with user-friendly features to deliver unparalleled performance and versatility never seen before.
Additionally, our fieldbus open loop stepper drives offer broad compatibility with various fieldbus protocols such as Modbus and EtherCAT. This versatility easily integrates with your existing fieldbus network, enabling seamless communication and control between multiple devices. The drive also supports functions such as homing, torque control and speed analysis, further expanding its functionality and applications.

Designed with the user in mind, the driver comes with a user-friendly programming interface that makes configuration and operation a breeze. The intuitive interface makes it easy to adjust parameters and is suitable for users of all professional levels. Additionally, the drive's compact design and simple wiring options simplify installation, saving you valuable time and effort.

In summary, the fieldbus open loop stepper driver is an innovative drive solution that delivers superior performance, unparalleled accuracy and unparalleled versatility. With its advanced features, compatibility with multiple fieldbus protocols, and user-friendly design, this driver is the ultimate choice for all your stepper motor control needs. Take your system to the next level and experience the future of motion control technology with our fieldbus open loop stepper drives.
