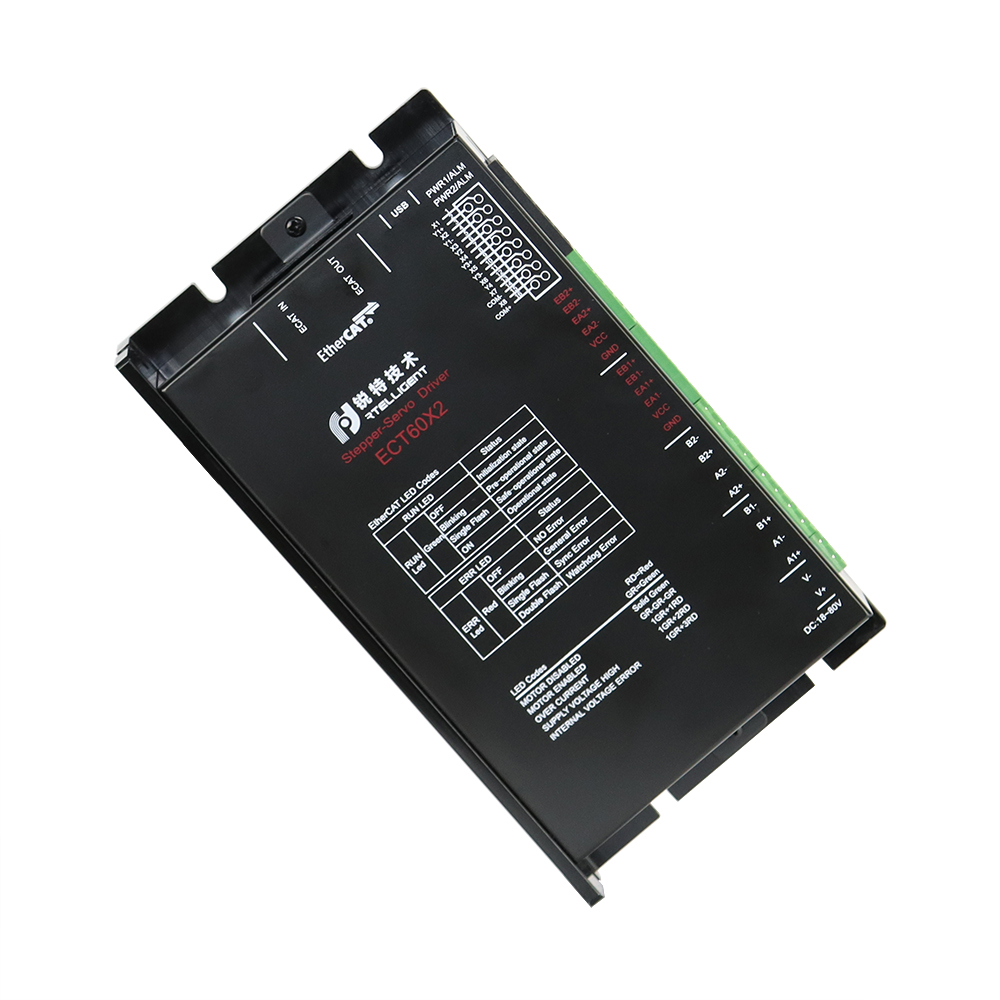

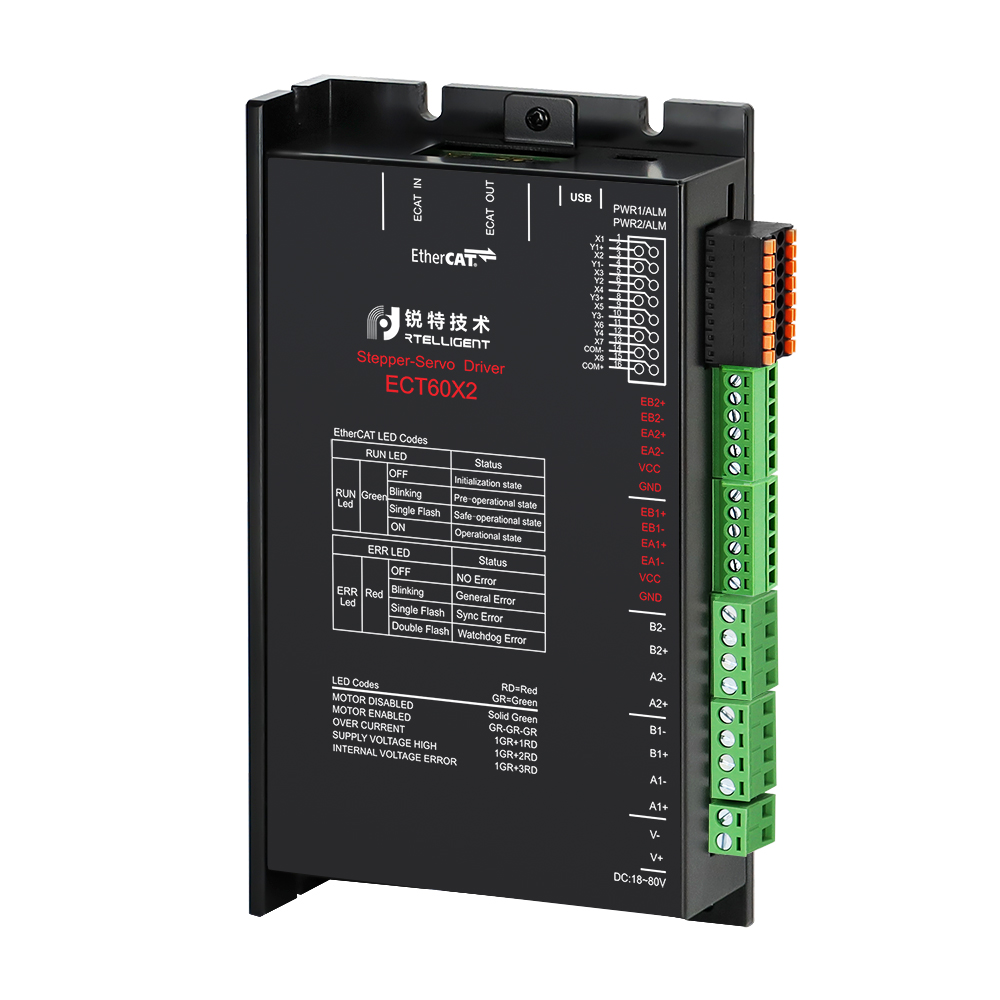

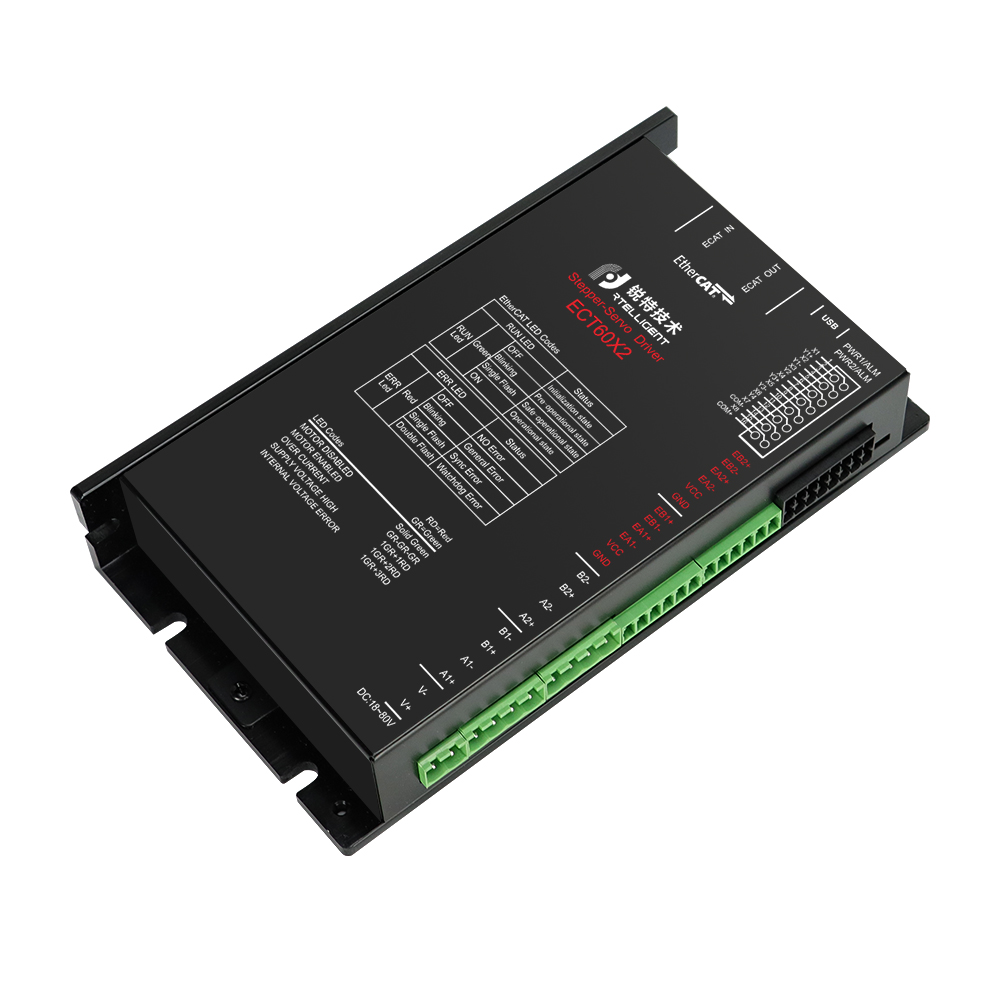

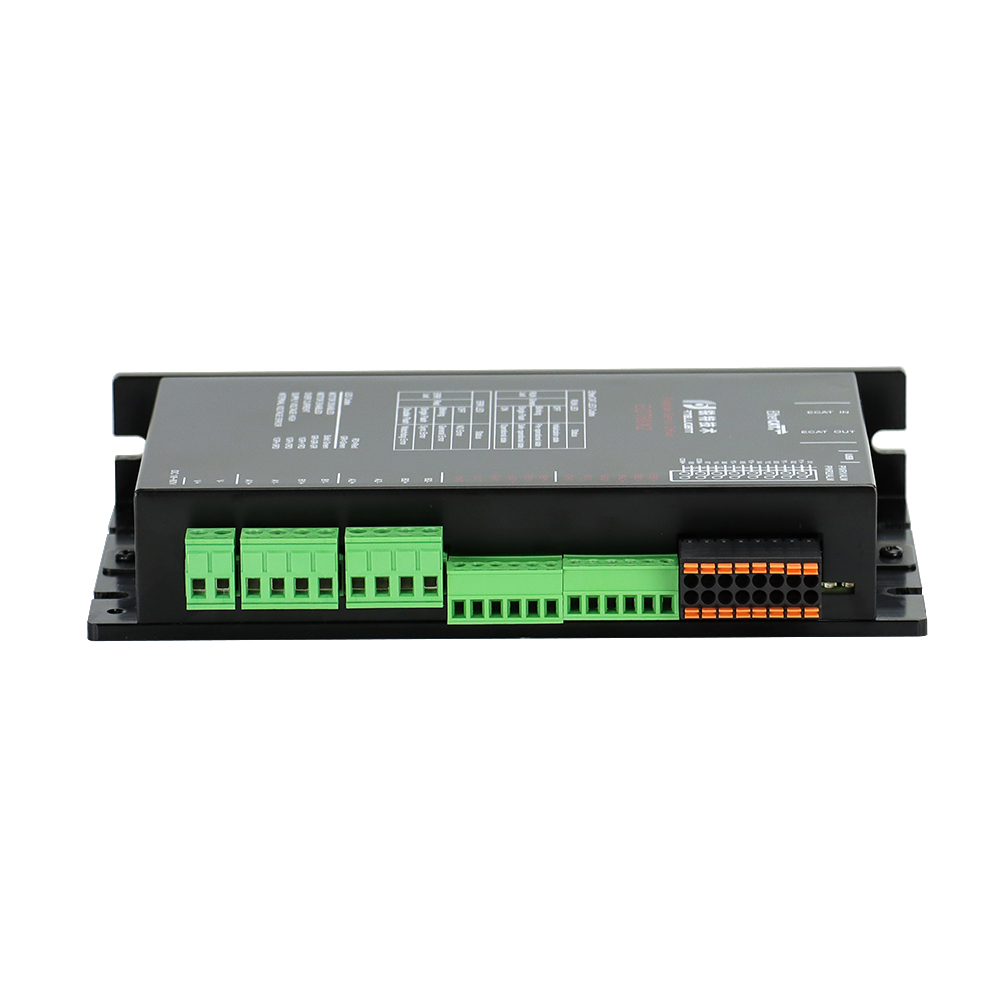

The EtherCAT fieldbus open loop stepper drive ECT60X2 is based on the CoE standard framework and complies with the CiA402 standard. The data transmission rate is up to 100Mb/s, and supports various network topologies.
ECT60X2 matches open loop stepper motors below 60mm.
• Control modes: PP, PV, CSP, CSV, HM, etc
• Power supply voltage: 18-80V DC

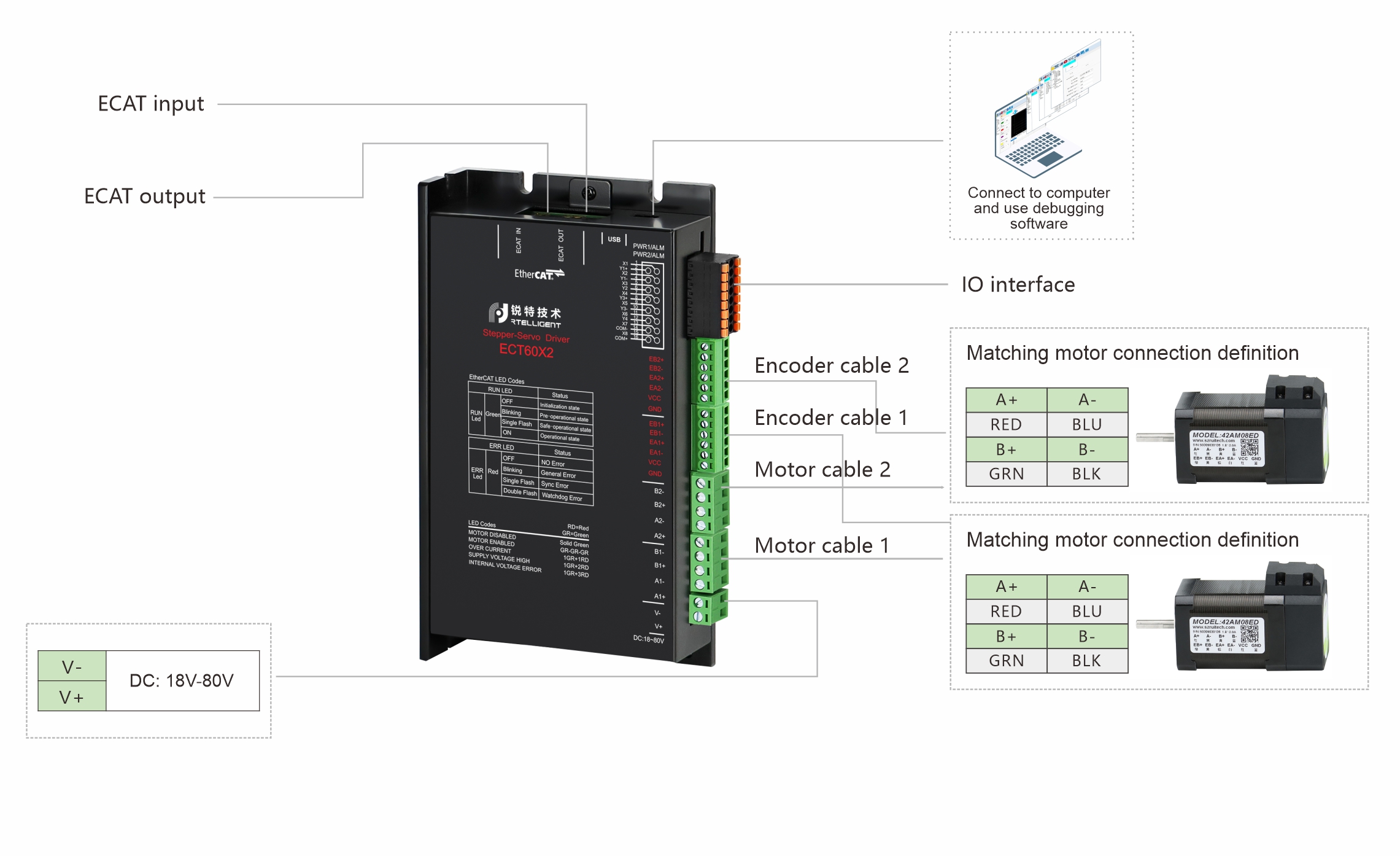

• Input and output: 8-channel 24V common positive input; 4-channel optocoupler isolation outputs
• Typical applications: assembly lines, lithium battery equipment, solar equipment, 3C electronic equipment, etc
