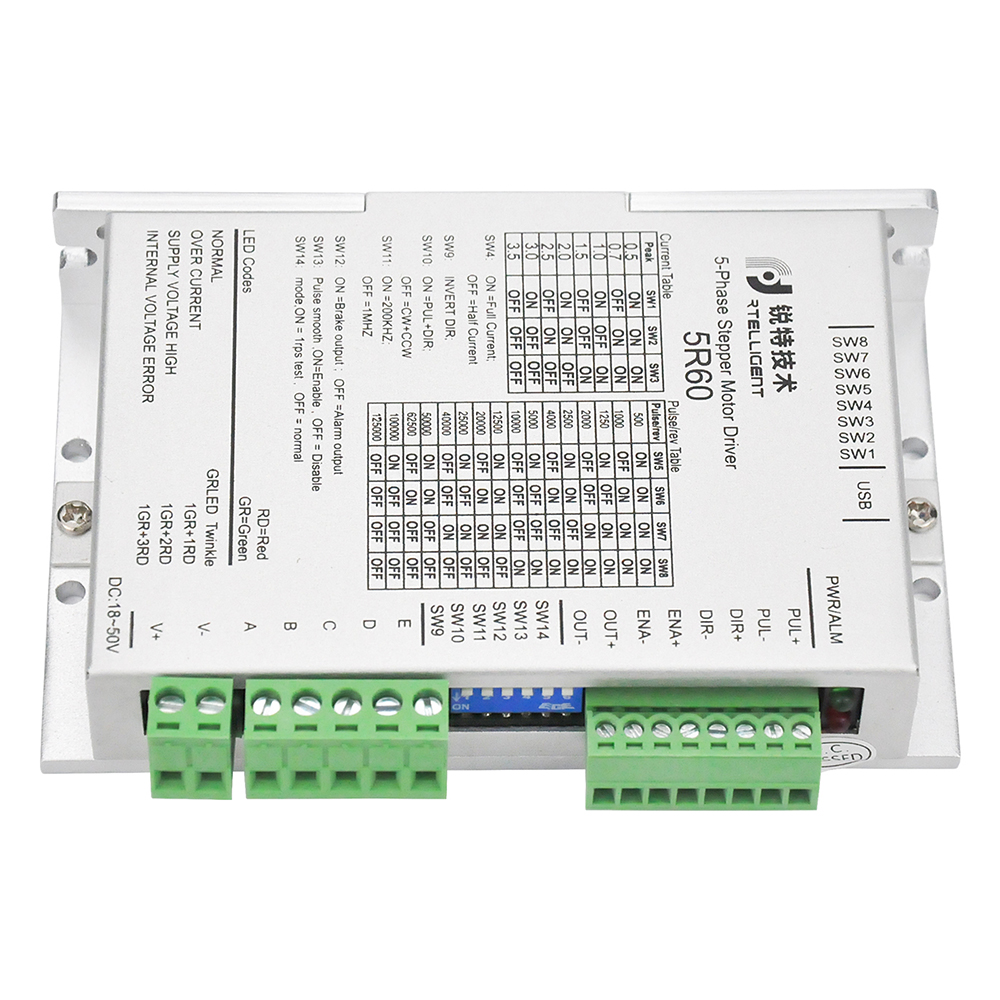

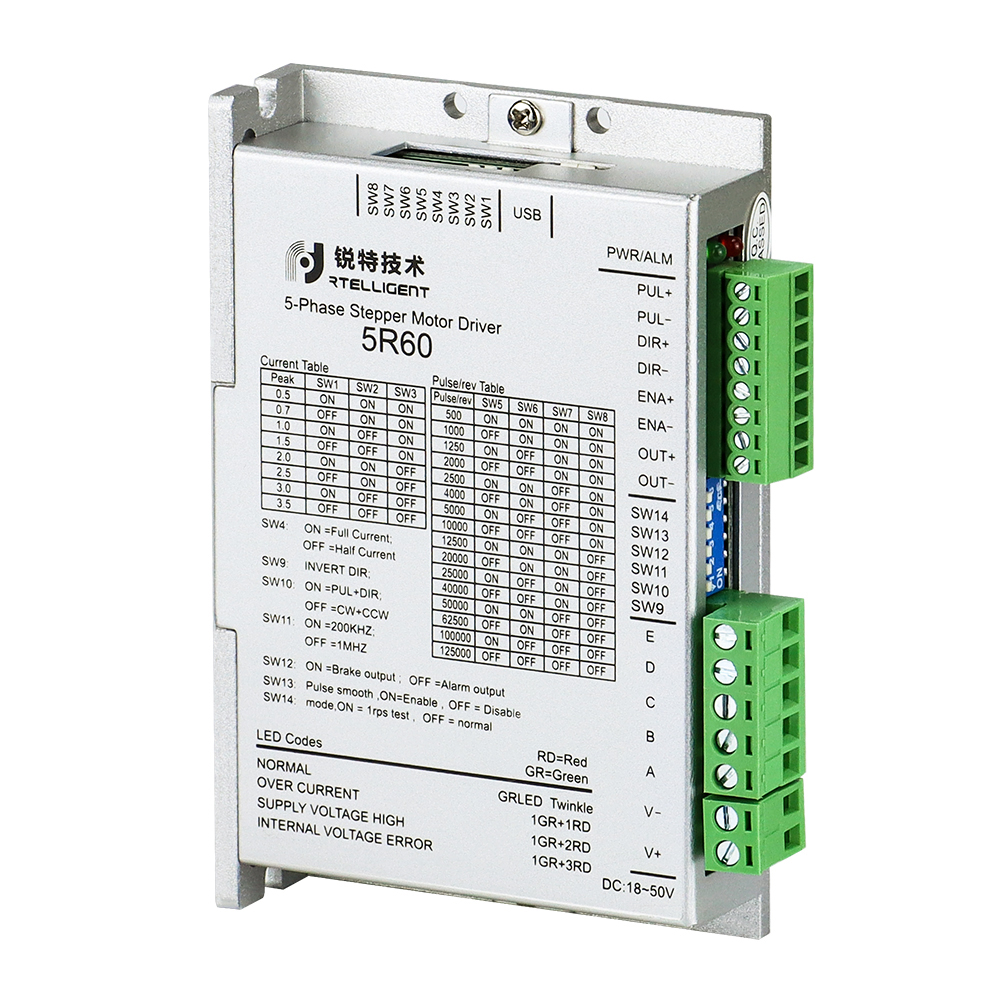

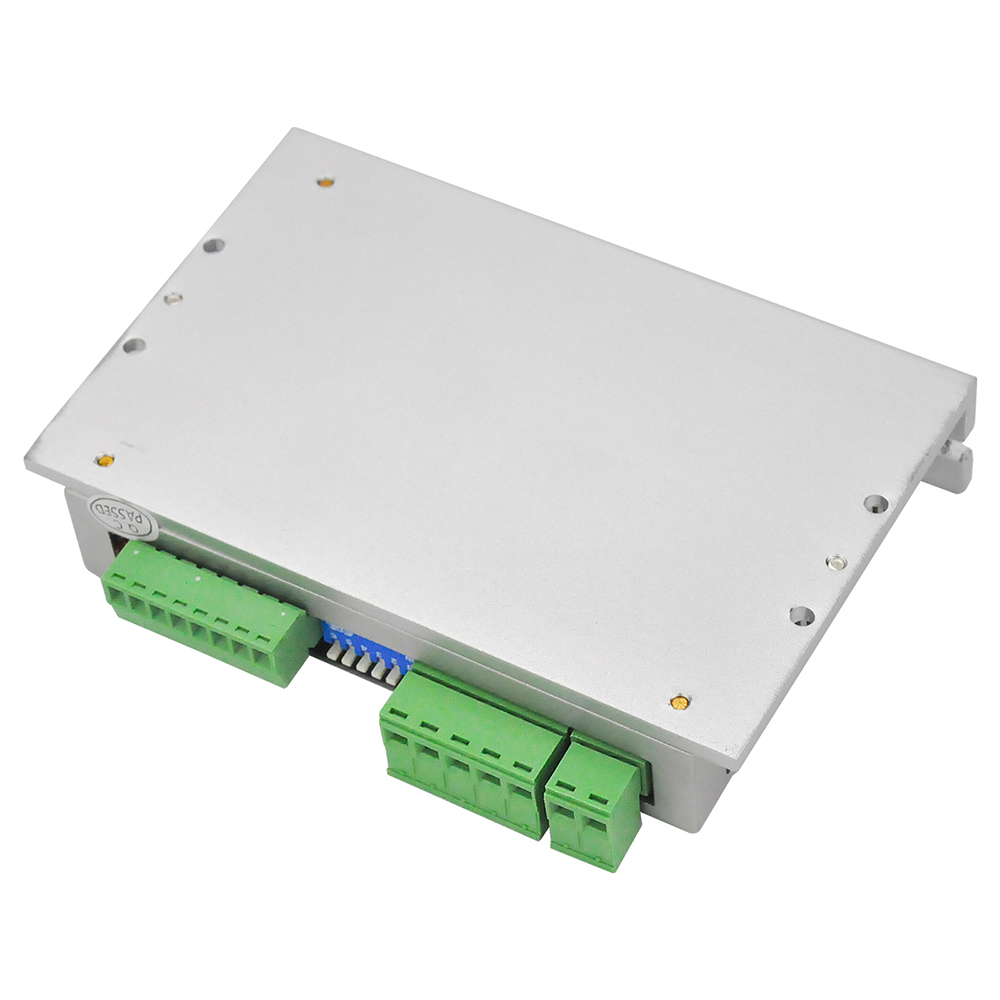

High Performance 5 Phase Digital Stepper Drive 5R60
High Performance 5 Phase Digital Stepper Drive 5R60
Product Introduction

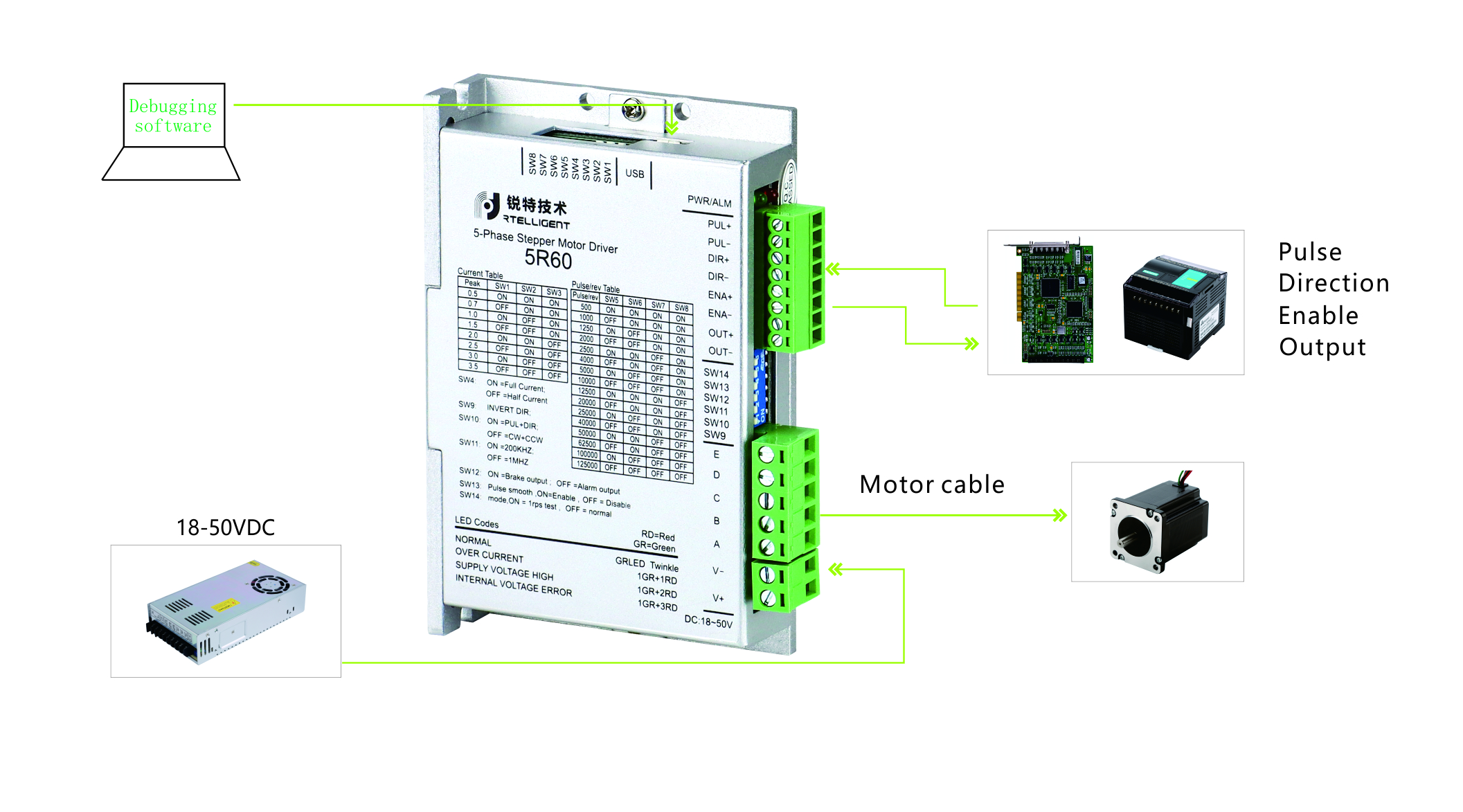

Connection
Features
• Power supply : 24 - 48VDC
• Output current: DIP switch setting, 8-speed selection, maximum 3.5 A(peak)
• Current Control: New Pentagon Connection SVPWM Algorithm and PID Control
• Subdivision setting: DIP switch setting, 16 file selection
• Matching motor: Five-phase stepping motor with new pentagon connection
• System self-test: The motor parameters are detected during the power-on initialization of the driver, and the current control gain is optimized according to the voltage conditions.
• Control mode: Pulse & direction; double pulse mode
• Noise filter: software setting 1MHz~100KHz
• Instruction smoothing: Software setting range 1~512
• Idle current: DIP switch selection, after the motor stops running for 2 seconds, the idle current can be set to 50% or 100%, and the software can be set from 1 to 100%.
• Alarm output: 1 channel optically isolated output port, default is alarm output, can be reused as brake control
• Communication interface: USB
Current Setting
|
Phase current peak A |
SW1 |
SW2 |
SW3 |
|
0.5 |
ON |
ON |
ON |
|
0.7 |
OFF |
ON |
ON |
|
1.0 |
ON |
OFF |
ON |
|
1.5 |
OFF |
OFF |
ON |
|
2.0 |
ON |
ON |
OFF |
|
2.5 |
OFF |
ON |
OFF |
|
3.0 |
ON |
OFF |
OFF |
|
3.5 |
OFF |
OFF |
OFF |
Micro-stepping Setting
|
Pulse/rev |
SW5 |
SW6 |
SW7 |
SW8 |
|
500 |
ON |
ON |
ON |
ON |
|
1000 |
OFF |
ON |
ON |
ON |
|
1250 |
ON |
OFF |
ON |
ON |
|
2000 |
OFF |
OFF |
ON |
ON |
|
2500 |
ON |
ON |
OFF |
ON |
|
4000 |
OFF |
ON |
OFF |
ON |
|
5000 |
ON |
OFF |
OFF |
ON |
|
10000 |
OFF |
OFF |
OFF |
ON |
|
12500 |
ON |
ON |
ON |
OFF |
|
20000 |
OFF |
ON |
ON |
OFF |
|
25000 |
ON |
OFF |
ON |
OFF |
|
40000 |
OFF |
OFF |
ON |
OFF |
|
50000 |
ON |
ON |
OFF |
OFF |
|
62500 |
OFF |
ON |
OFF |
OFF |
|
100000 |
ON |
OFF |
OFF |
OFF |
|
125000 |
OFF |
OFF |
OFF |
OFF |
| When 5, 6, 7 and 8 are all ON, any micro-stepping can be changed through debugging software. | ||||
Product Description
Introducing the highly advanced and powerful 5-phase stepper driver 5R60! This innovative product is designed to provide superior performance and control in a wide range of industrial applications. With its many great features, the 5R60 is poised to revolutionize the stepper driver market.
One of the standout features of the 5R60 is its exceptional efficiency and accuracy. This stepper driver is equipped with advanced current control technology to ensure smooth and precise motor movement for optimal operation even in the most demanding applications. In addition, the 5R60 has high torque output to ensure maximum power and performance.
Another impressive aspect of the 5R60 is its versatility. The stepper driver is compatible with a variety of motor types, including five-phase stepper motors, providing users with flexibility in application selection. Whether you need to control a small motor or a large motor, the 5R60 can meet your needs.
In addition to superior functionality, the 5R60 prioritizes user convenience. With its user-friendly interface and intuitive controls, this stepper driver can easily adapt to a variety of operating environments. Its compact design allows easy integration into existing systems, while its built-in protection features ensure the longevity of the stepper motor and driver unit.
Finally, safety is the primary consideration for the 5-phase stepper driver 5R60. It is designed with overvoltage, overcurrent, and overheating protection circuits to prevent potential damage to the motor and driver. This ensures a reliable and safe operating environment.
All in all, the 5-phase stepper driver 5R60 is a cutting-edge product offering outstanding performance, versatility and user convenience. With its advanced features and rugged design, the 5R60 is sure to exceed expectations in a variety of industrial applications. Get ready to experience new levels of precision and efficiency with the 5R60 stepper driver!
-
