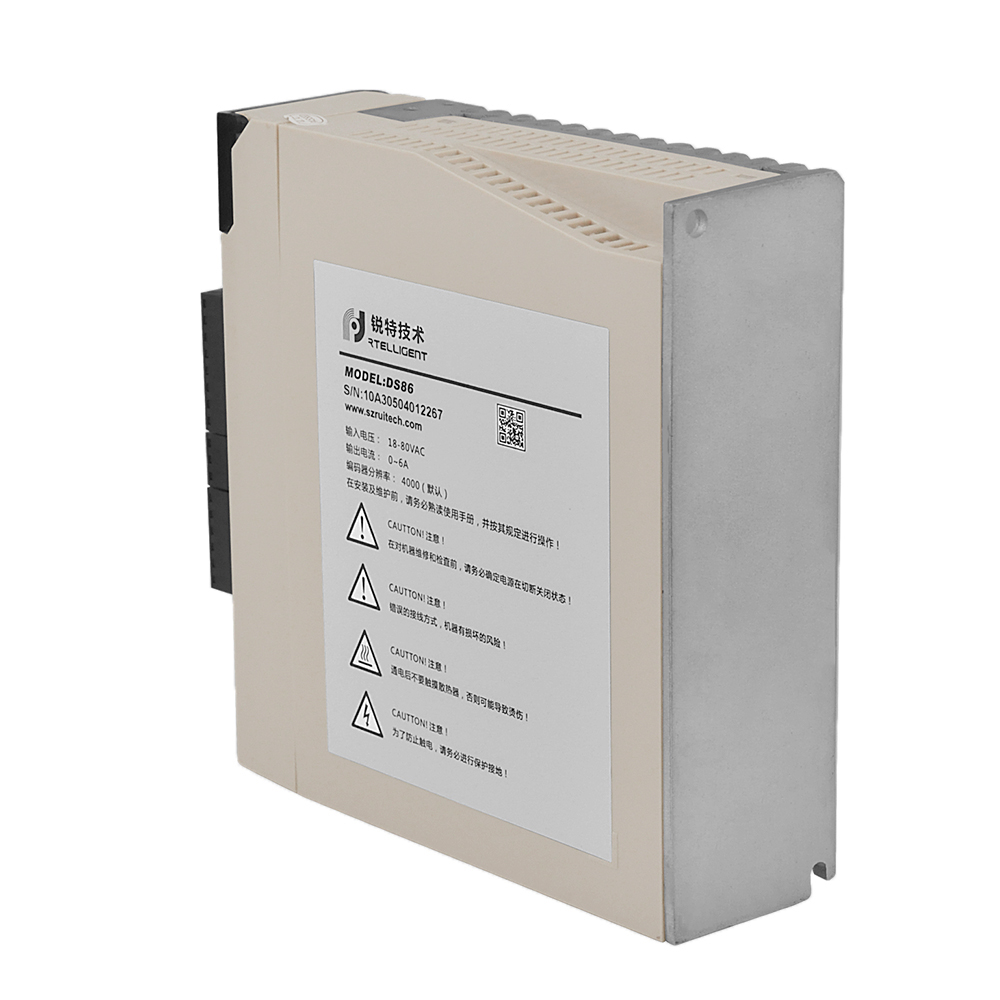

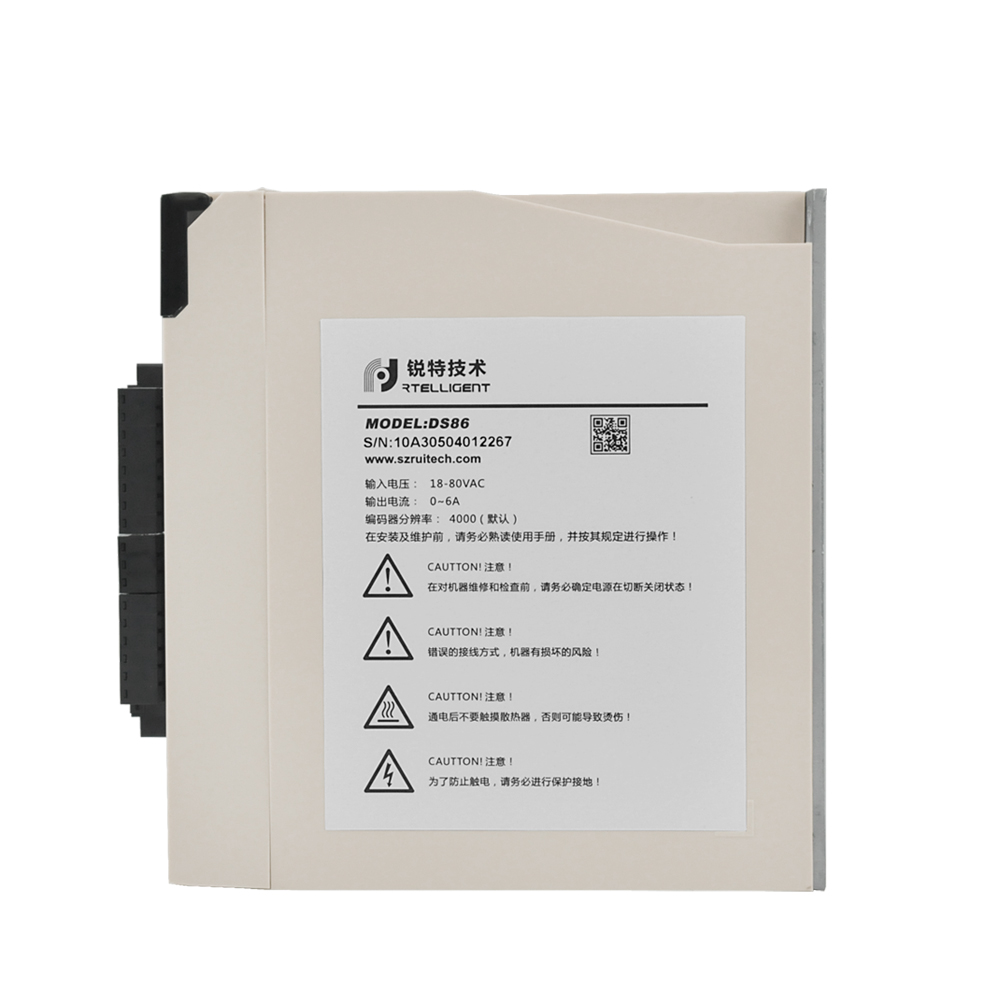

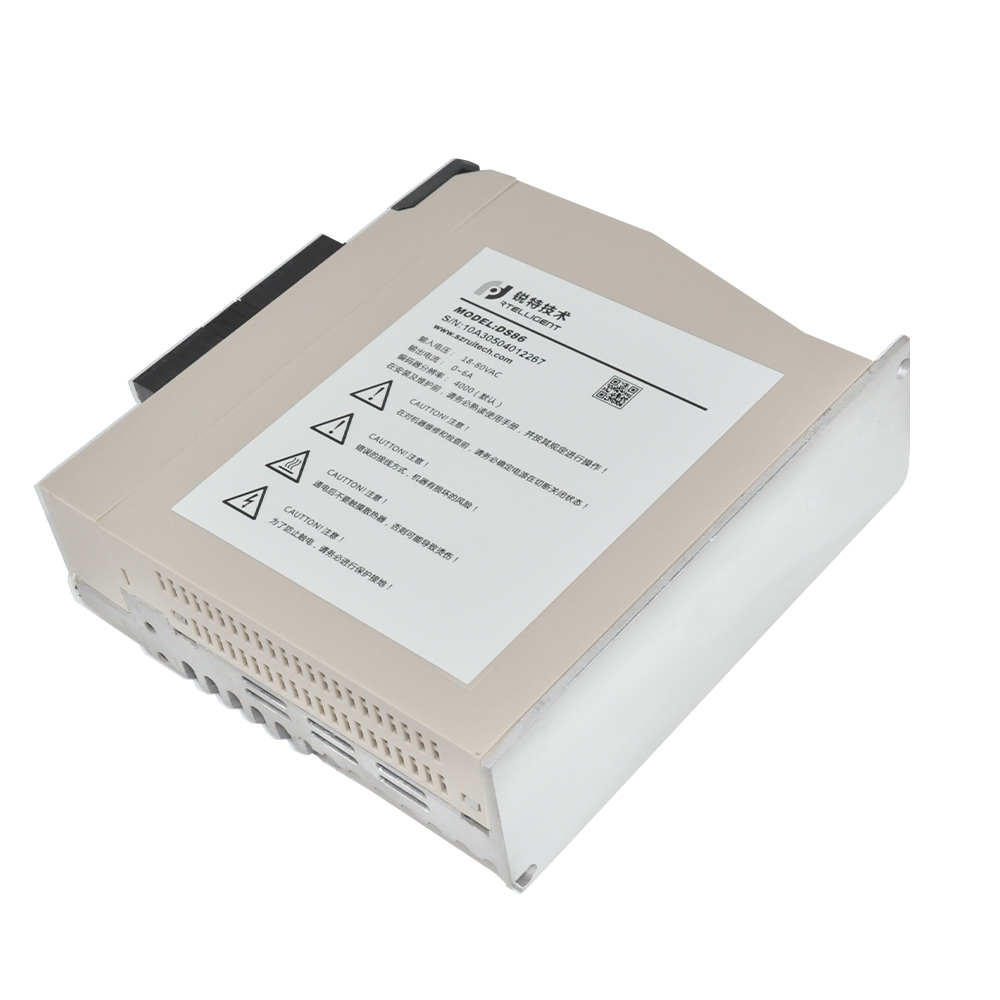

Hybrid 2 Phase Closed Loop Stepper Drive DS86

Short Description:

DS86 digital display closed-loop stepper drive, based on a 32-bit digital DSP platform, with built-in vector control technology and servo demodulation function. The DS stepper servo system has the characteristics of low noise and low heating.

DS86 is used to drive the two-phase closed-loop motor below 86mm

• Pulse mode: PUL&DIR/CW&CCW

• Signal level: 3.3-24V compatible; serial resistance not required for the application of PLC.

• Power voltage: 24-100VDC or 18-80VAC, and 75VAC recommended.

• Typical applications: Auto-screwdriving machine, wire-stripping machine, labeling machine, engraving machine, electronic assembly equipment etc.

Send email to us

Product Detail

Download

Product Tags

Product Introduction

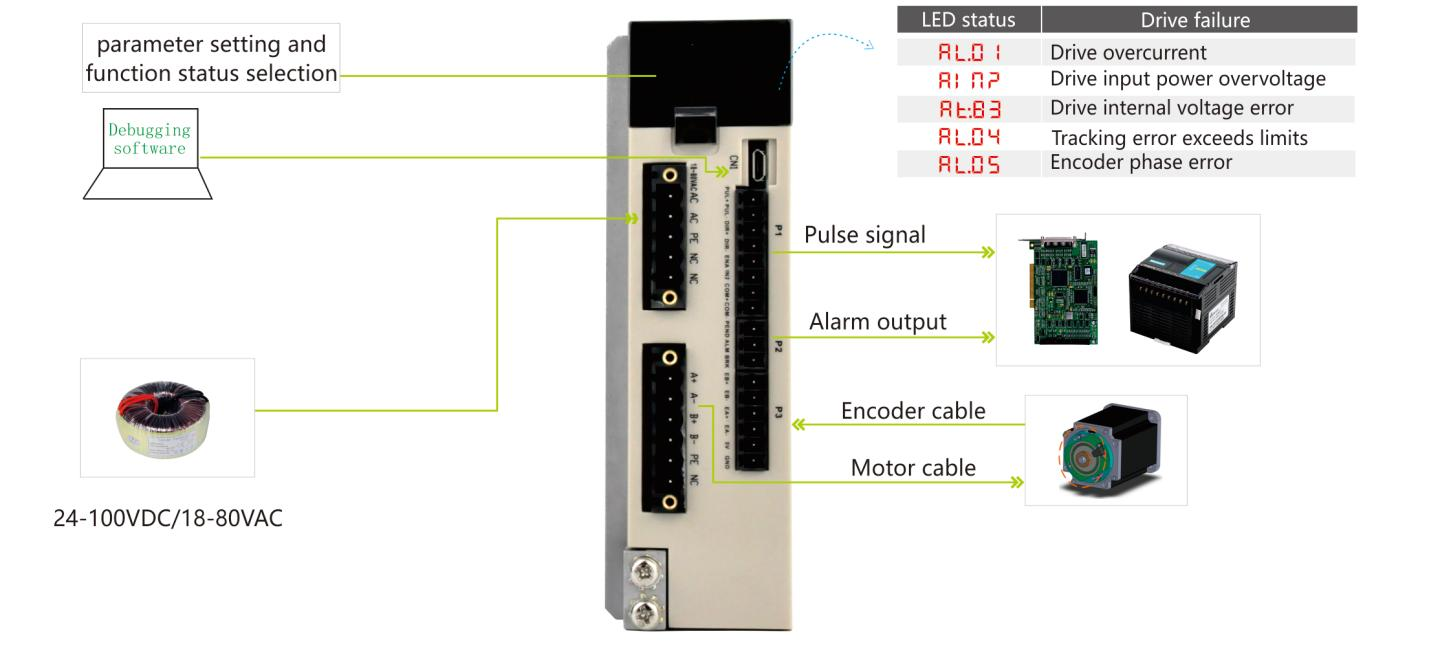

Connection

Features

Operating voltage	18~80VAC
Control interface	PUL+DIR；CW+CCW
Microstep settings	200 to 65535
Output current	0~6A(sine peak)
Encoder resolution	4000(default)
Input signal	3 photoelectric isolation digital signal inputs, high level can be directly, received 5 to24V DC level
Output signa	1 channel photoelectric isolation digital signal output, maximum tolerance voltage 28V, maximum inputting or pulling current 50mA
