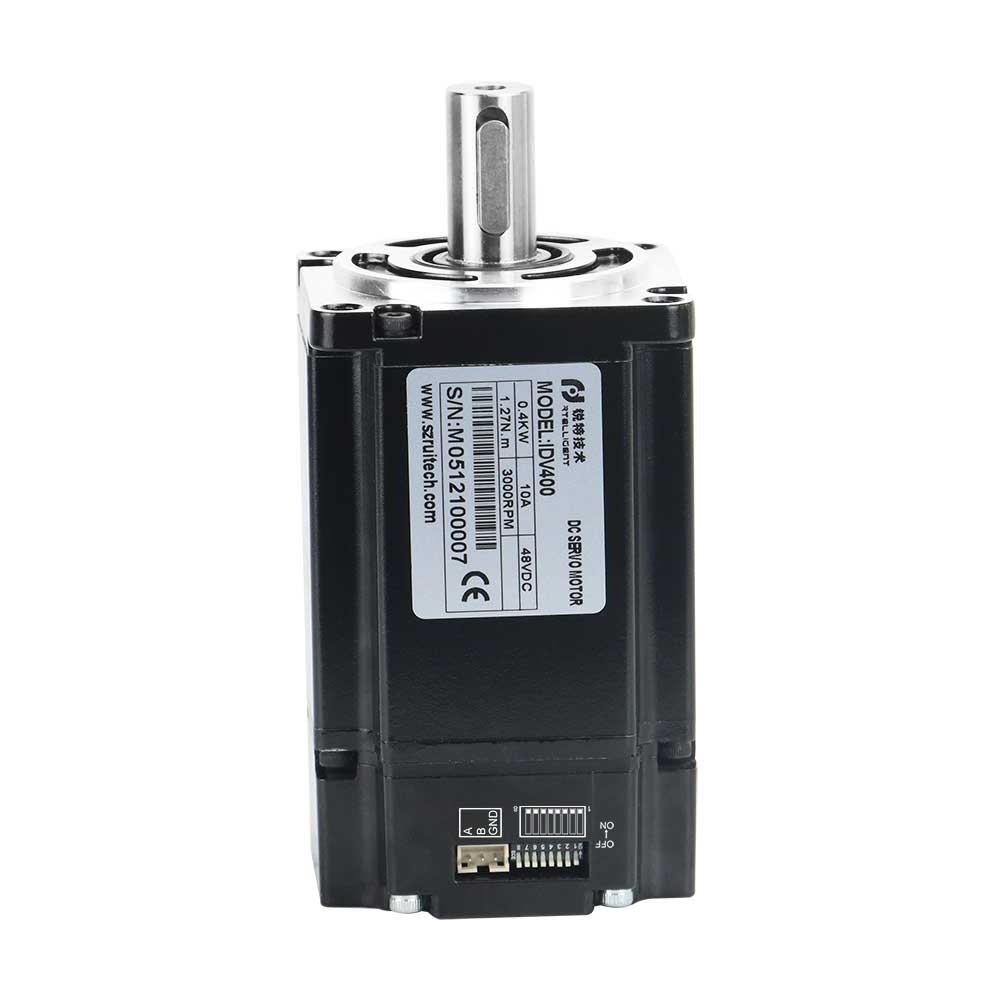

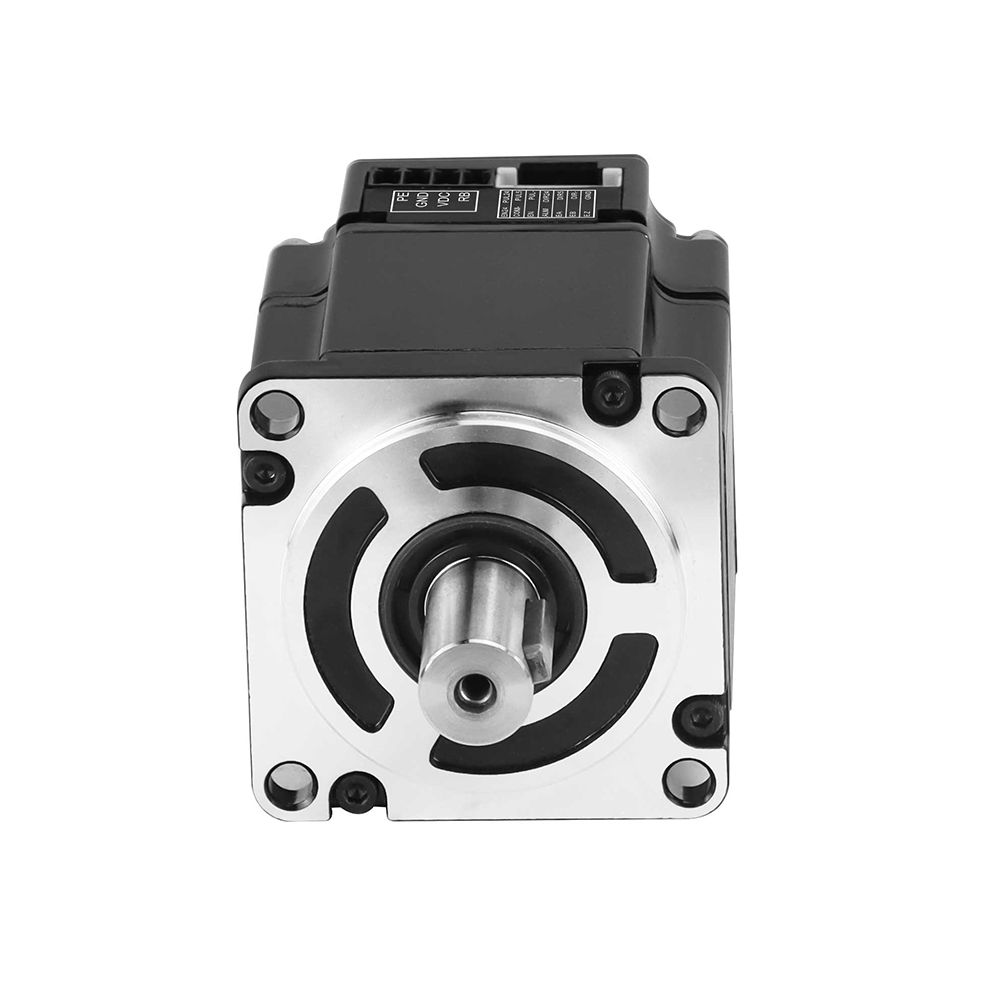

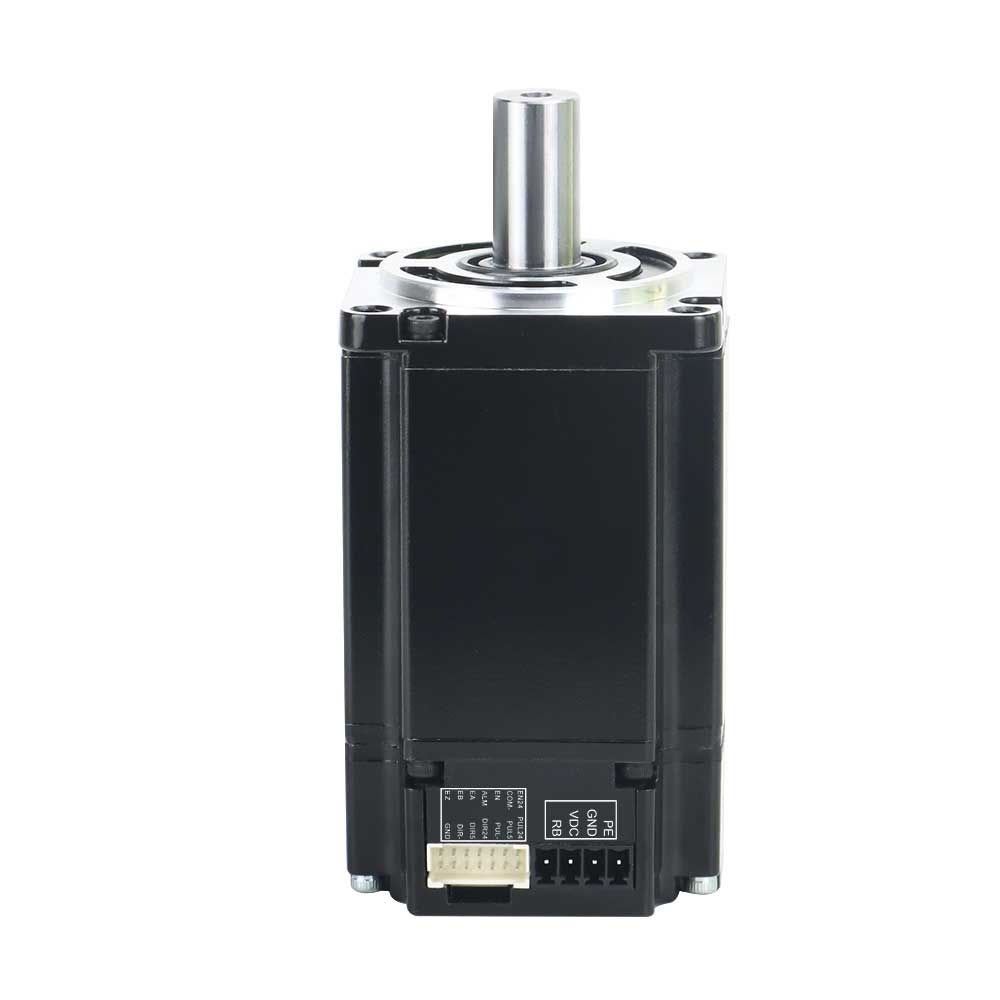

IDV Series Integrated Low-voltage Servo User Manual

The IDV series is a general integrated low-voltage servo motor developed by Rtelligent. Equipped with position/speed/torque control mode, support 485 communication to achieve communication control of the integrated motor

•  Working voltage: 18-48VDC, recommended the rated voltage of the motor as working voltage

•  5V dual ended pulse/direction command input, compatible with NPN and PNP input signals.

•  The built-in position command smoothing filtering function ensures smoother operation and significantly reduces

•  equipment operating noise.

•  Adopting FOC magnetic field positioning technology and SVPWM technology.

•  Built-in 17-bit high-resolution magnetic encoder.

•  With multiple position/speed/torque command application modes.

•  Three digital input interfaces and one digital output interface with configurable functions.
