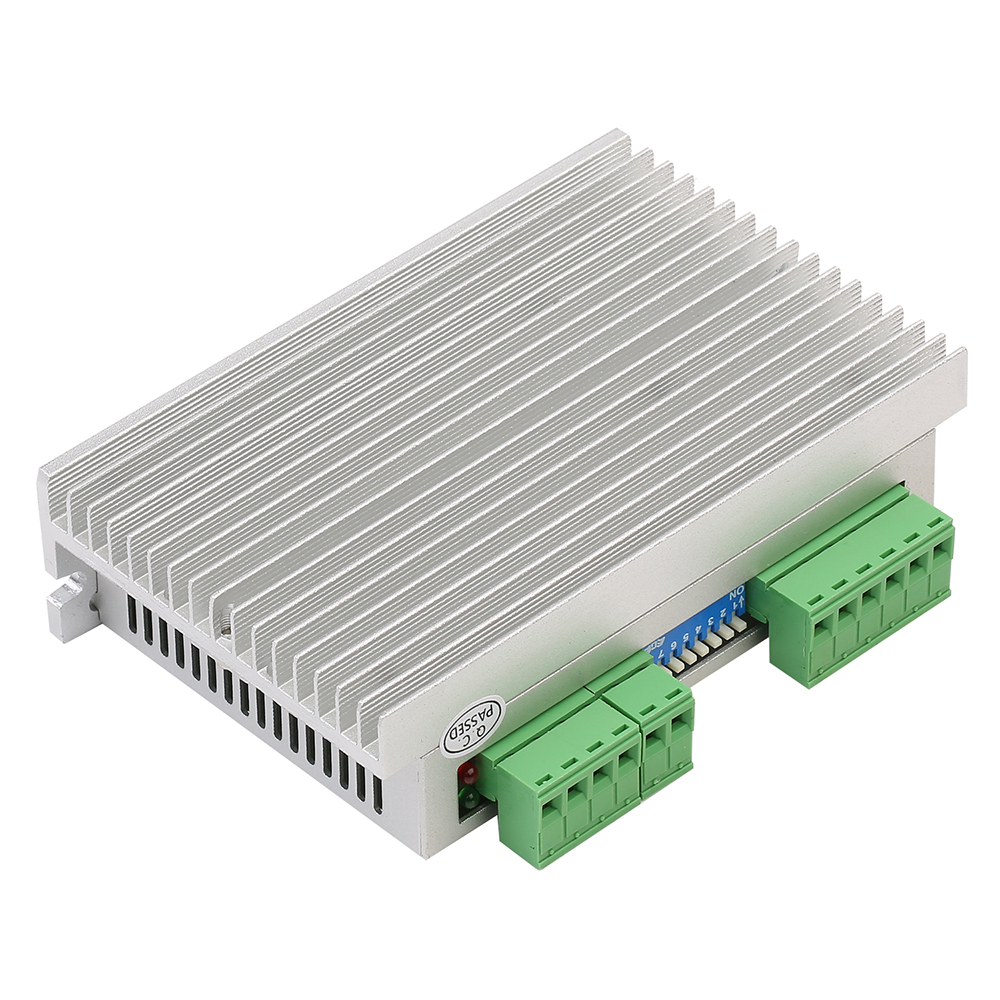

IO Speed Control Switch Stepper Drive Series

Short Description:

IO series switch stepper drive, with built-in S-type acceleration and deceleration pulse train, only need switch to trigger

motor start and stop. Compared with speed regulating motor, IO series of switching stepper drive has the characteristics of stable start and stop, uniform speed, which can simplify the electrical design of engineers.

• ontrol mode: IN1.IN2

• Speed setting: DIP SW5-SW8

• Signal level: 3.3-24V Compatiable

• Typical appications: conveying equipment, inspection converyor, PCB loader

Send email to us

Product Detail

Download

Product Tags

Product Introduction

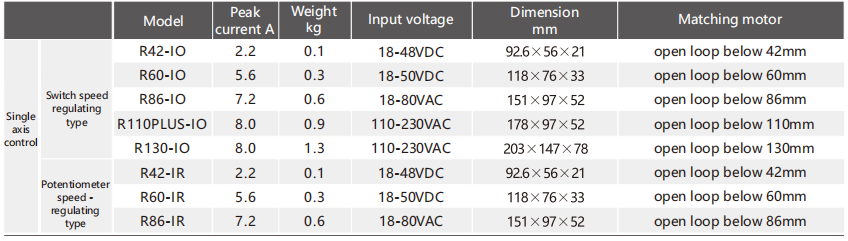

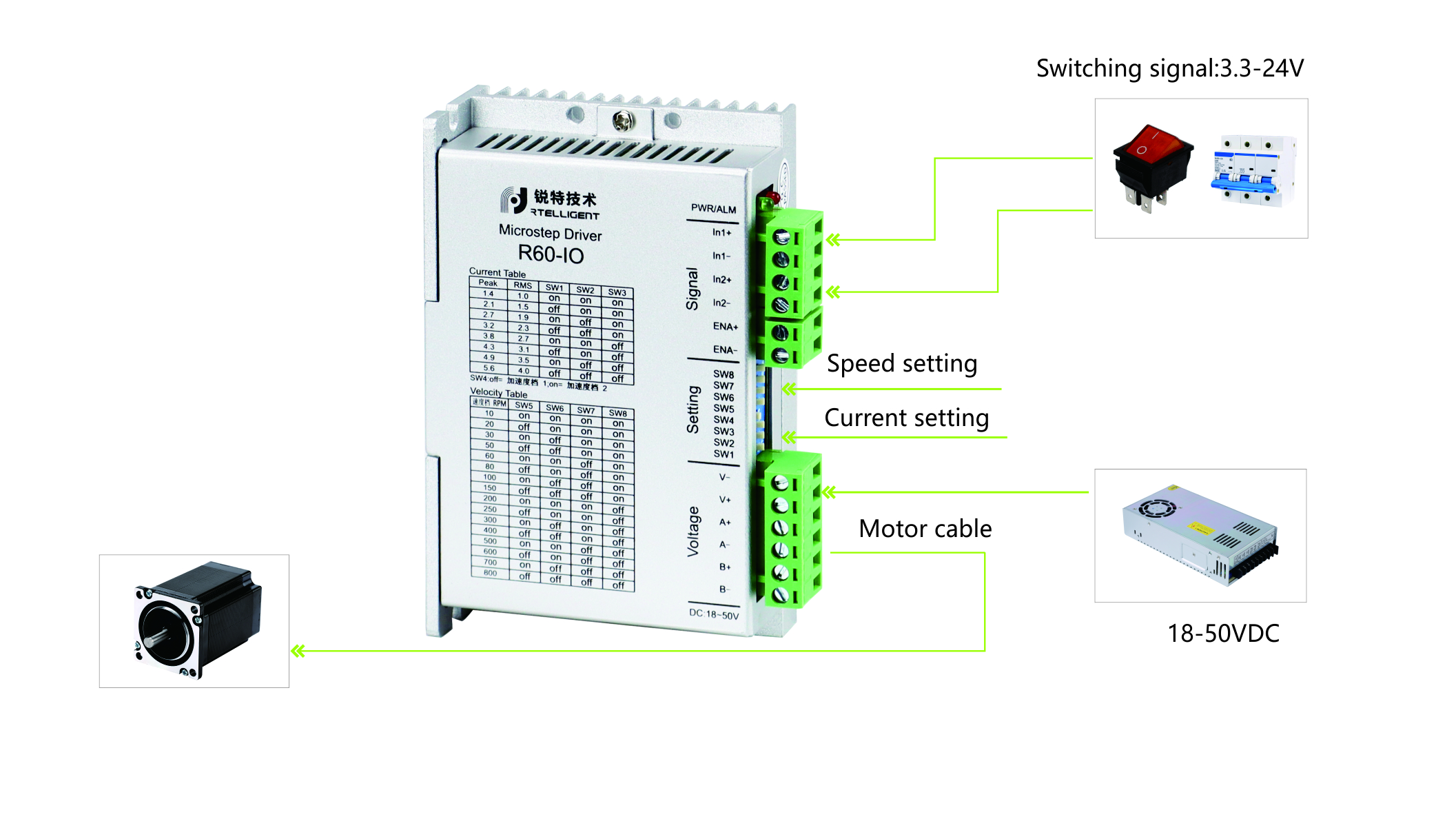

Connection

Current Setting

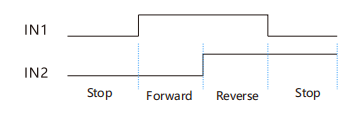

Mode 0 (Default)
At IN1 on and IN2 off, the motor is triggered to rotate forward.
At IN1 on and IN2 on, the motor is triggered to rotate reverse.
At IN1 off, the motor stops.

Mode 1 (Optional)
At IN1 on and IN2 off, the motor is triggered to rotate forward.
At IN1 off and IN2 on, the motor is triggered to rotate reverse.
At both IN1 and IN2 on, the motor stops.
