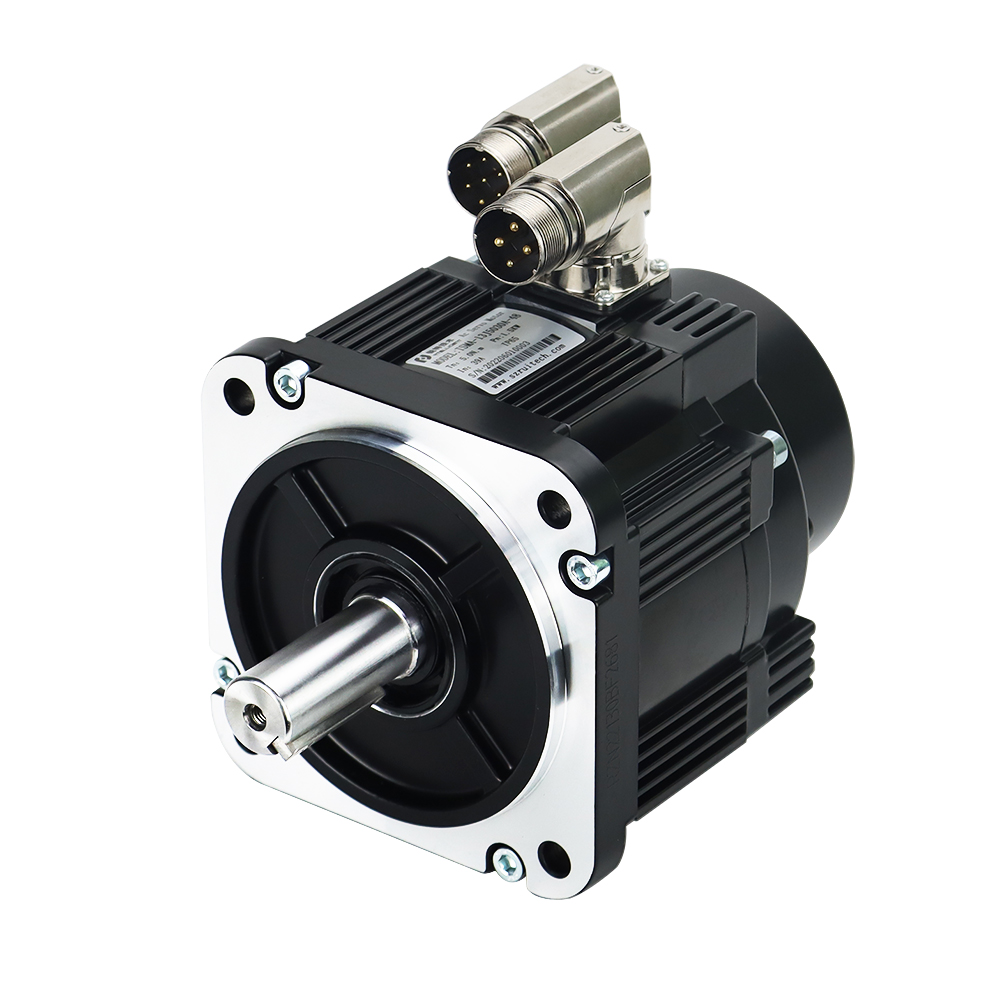

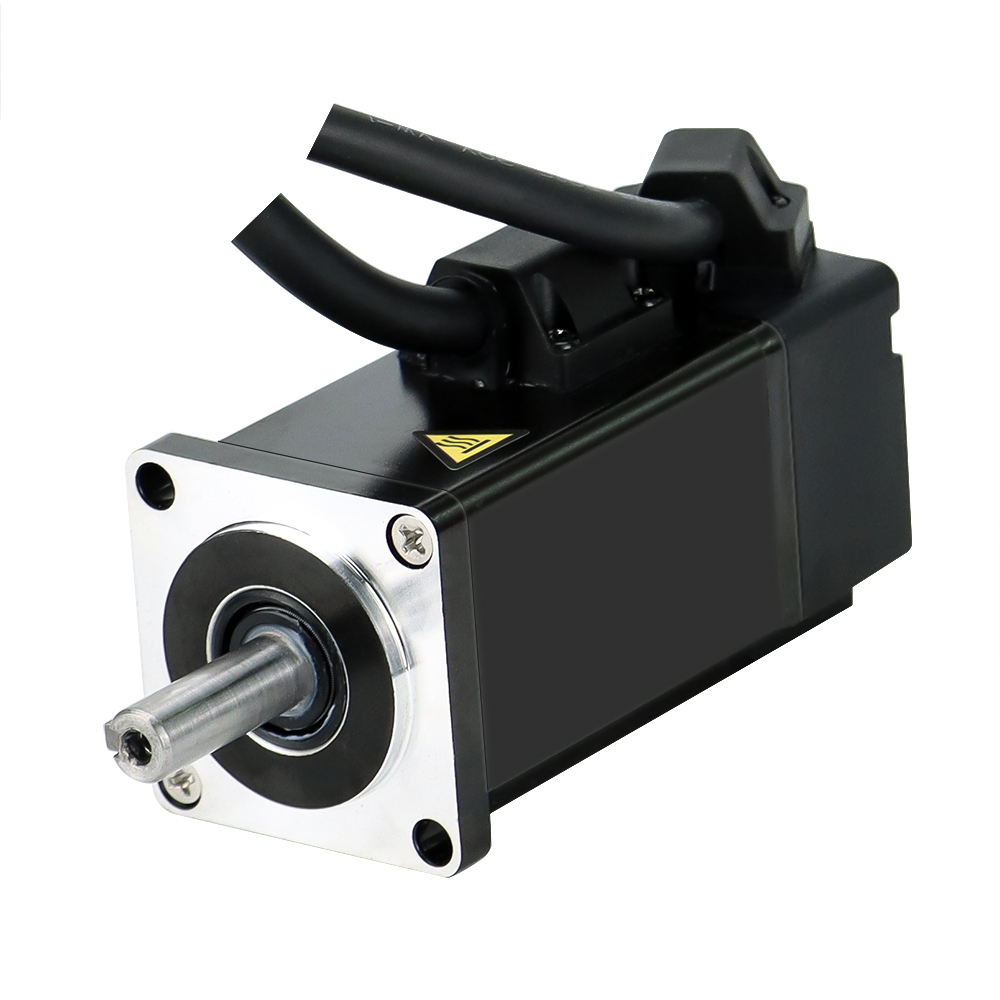

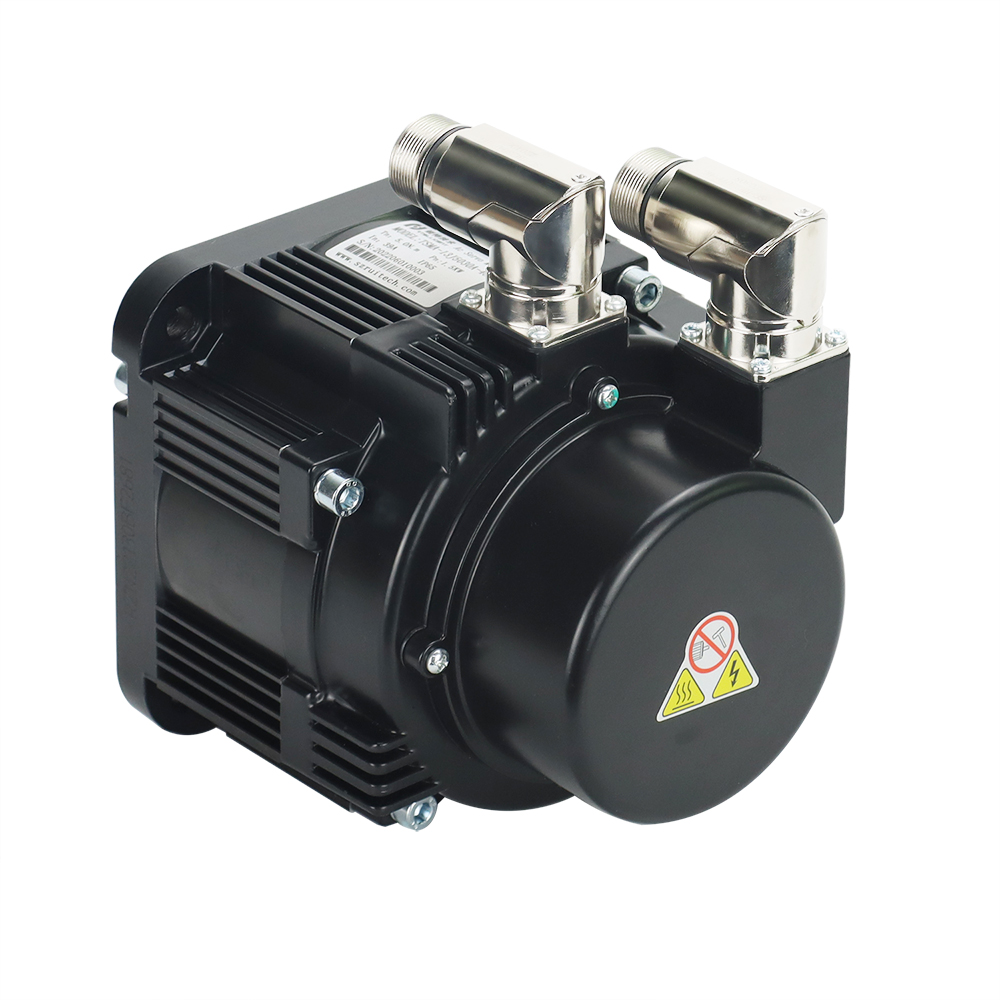

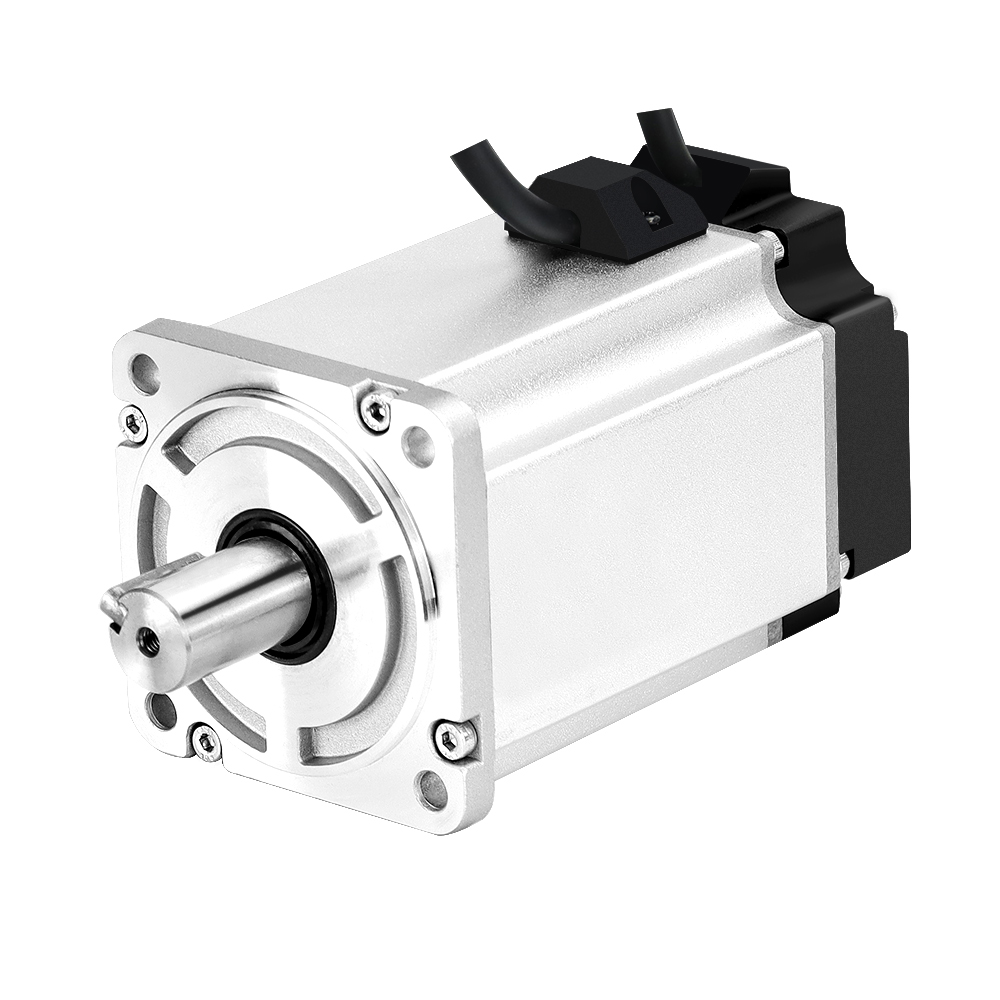

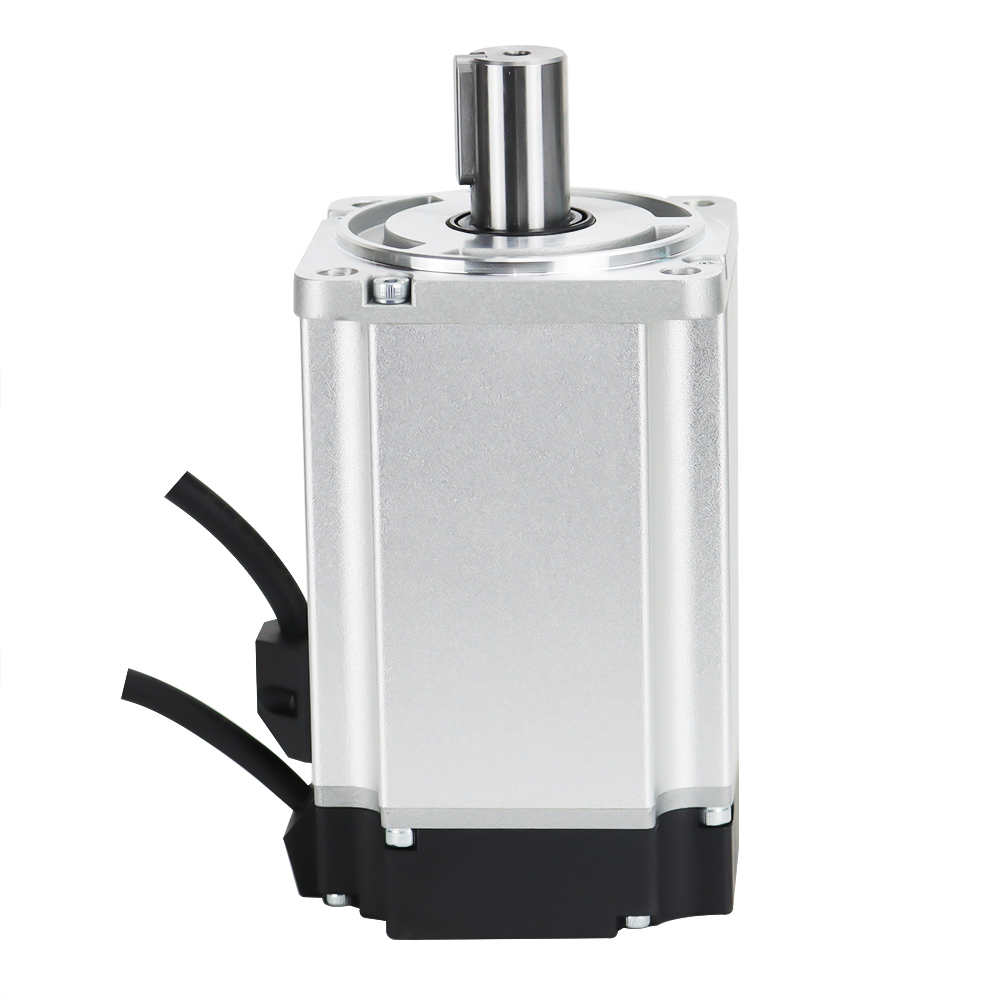

Low-voltage Servo Motor TSNA Series

Short Description:

● More compact size, saving installation cost.

● 23bit Multi-turn absolute encoder optional.

● Permant magnetic brake optional, suit for Z -axis applications.

Send email to us

Product Detail

Download

Product Tags

Product Introduction

TSN series low-voltage servo motors cover the power range of 0.05~1.5kW, and are equipped with communication encoders for higher positioning accuracy. This series motors have a rated speed of 3000rpm, and have torque-frequency characteristics of the same specifications as AC servos, which can meet the needs of high-performance low-voltage servo applications.

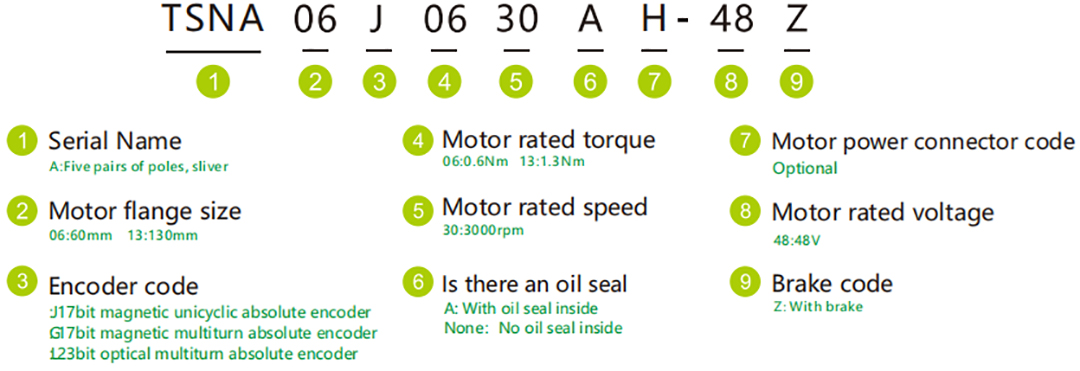

Naming Rule

Technical Specifications

Low-voltage Servo Motor 40/60mm Serie

Model	TSNA- 04J0130AS-48	TSNA- 04J0330AS-48	TSNA- 06J0630AH-48	TSNA- 06J1330AH-48
Rated power (W)	50	100	200	400
Rated voltage (V)	48	48	48	48
Rated current (A)	4	5.30	6.50	10
Rated torque (N.M)	0.16	0.32	0.64	1.27
Maximum torque (N.M)	0.24	0.48	1.92	3.81
Rated speed (rpm)	3000	3000	3000	3000
Maximum speed (rpm)	3500	3500	4000	4000
Back EMF (V/Krpm)	3.80	4.70	7.10	8.60
Torque constant (N.M/A)	0.04	0.06	0.10	0.12
Wire resistance (Ω,20℃)	1.93	1.12	0.55	0.28
Wire inductance(mH,20℃)	1.52	1.06	0.90	0.56
Rotor inertia(X10-kg.m)	0.036	0.079	0.26	0.61
Weight (kg)	0.35	0.46 Brake 0.66	0.84 Brake 1.21	1.19 Brake 1.56
LengthL(mm)	61.5	81.5 Brake 110	80 Brake 109	98 Brake 127

Low-voltage Servo Motor 80/130mm Series

Model	TSNA- 08J2430AH-48	TSNA- 08J3230AH-48	TSMA- 13J5030AM-48
Rated power (W)	750	1000	1500
Rated voltage (V)	48	48	48
Rated current (A)	18.50	26.4	39
Rated torque (N.M)	2.39	3.2	5
Maximum torque (N.M)	7.17	9.6	15
Rated speed (rpm)	3000	3000	3000
Back EMF(V/Krpm)	8.50	8	8.1
Torque constant (N.M/A)	0.13	0.12	0.13
Wire resistance (2,20℃)	0.09	0.047	0.026
Wire inductance(mH,20℃)	0.40	0.20	0.10
Rotor inertia(X10'kg.m²)	1.71	2.11	1.39
Weight (kg)	2.27 Brake 3.05	2.95 Brake 3.73	6.5
Length L(mm)	107 Brake 144	127 Brake 163	148

Servo motor with brake

Suitable for Z-axis application environment,
When the driver is powered off or alarms, the brake will be applied,
Keep the workpiece locked and avoid free fall.

Permanent magnet brake
Fast start and stop, low heating.

24V DC power supply
Can use drive brake output port control.
The output port can directly drive the relay to.
control the brake on and off.
