Product Introduction
The RX3U series controller has highly integrated features, including multiple input and output points, convenient programming connections, multiple communication interfaces, high-speed pulse output, highspeed counting and other functions, while maintaining data permanence. In addition, it is also compatible with a variety of host computer programming software
and is easy to install.

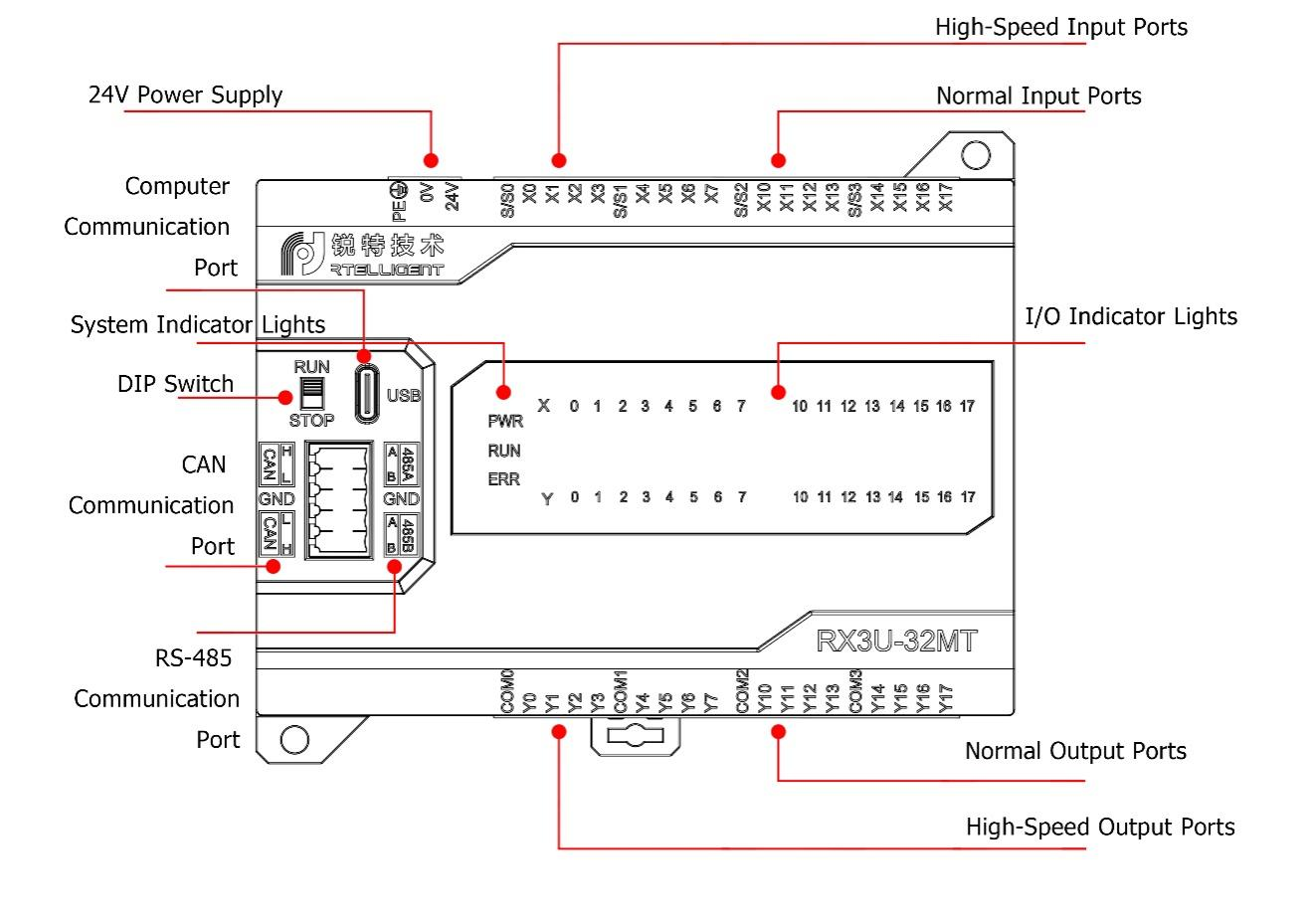

Connection
Naming Rule
|
Symbol |
Description |
|
① |
Series name
RX3U: Rtelligent RX3U Series PLC |
|
② |
Input/output points
32: A total of 32 input and output points |
|
③ |
Function code
M: General Main Control Module |
|
④ |
Module classification
R: Relay output type T: Transistor output type |
Features
Highly integrated. The controller comes with 16 switch input points and 16 switch output points, with the option of transistor output type RX3U-32MT or relay output model RX3U-32MR.
Convenient programming connection. Comes with a Type-C programming interface and does not require a special programming cable.
The controller is equipped with two RS485 interfaces, which can be configured as MODBUS RTU master station and MODBUS RTU slave station respectively.
The controller is with a CAN communication interface.
The transistor model supports three 150kHz high-speed pulse outputs. Supports variable and constant speed single axis pulse output.
Supports 6-way 60K single-phase or 2-way 30K AB phase high-speed counting.
Data is permanently retained, no need to worry about battery expiration or data loss.
The master programming software is compatible with GX Developer 8.86/GX Works2.
Specifications are compatible with the Mitsubishi FX3U series and run faster.
Convenient wiring, using pluggable wiring terminals.
Easy to install, can be installed using standard DIN35 rails (35mm wide) and fixing holes
-
