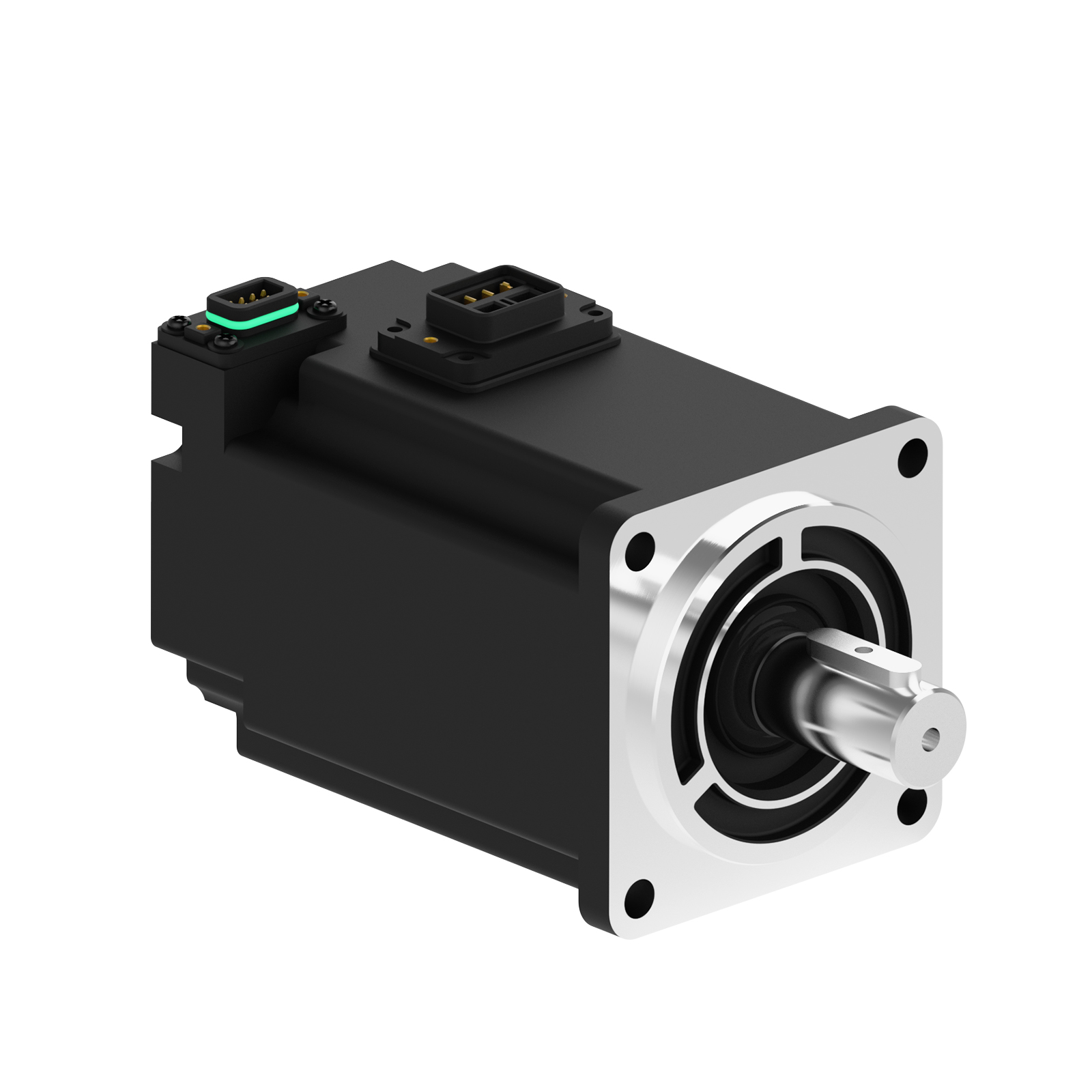

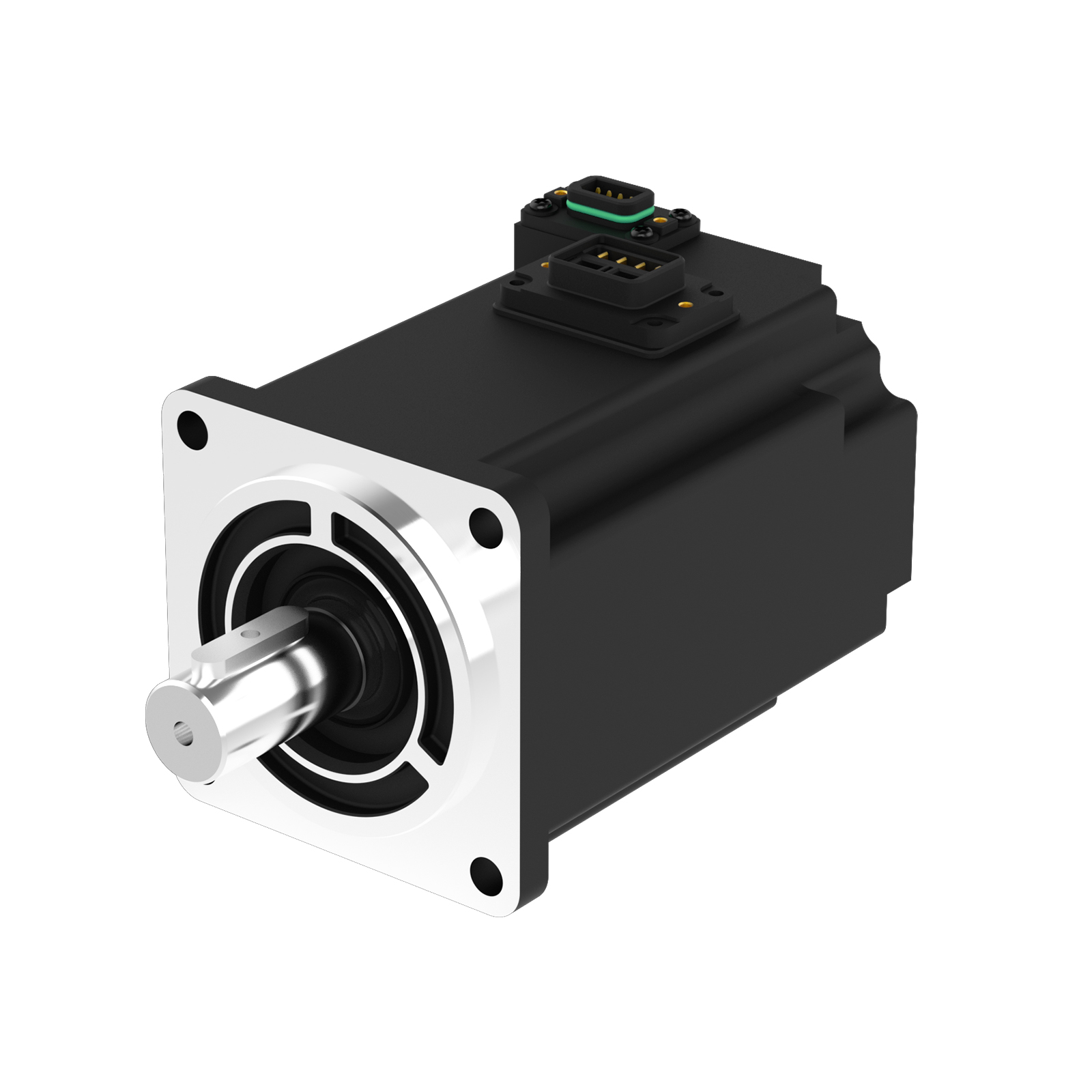

New Generation Of AC Servo Motor RSDA Series

The AC servo motors are designed by Rtelligent，optimized magnetic circuit design based on Smd，The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. RSDA motor ultra-short body, save installation space,Permanent magnet brake optional, sensitive action, suitable for Z-axis application environment.

● Rated voltage 220VAC

● Rated power 100W~1KW

● Frame size 60mm /80mm

● 17-bit magnetic encorder / 23-bit optical abs encoder

● Lower noise and lower temperature rise

● Strong overload capacity up to 3 times at most
