Phase Closed Loop Stepper Motor Series

Short Description:

● Built-in high-resolution encoder, optional Z signal.

● The lightweight design of the AM series reduces the installation.

● Space of the motor.

● Permanent magnet brake is optional, Z-axis brake is faster.

Send email to us

Product Detail

Download

Product Tags

Product Introduction

New 2-phase closed loop stepper motors AM seriesare based on Cz optimized magnetic circuit design and the latest compact M-shaped molds. The motor body uses high magnetic density stator and rotor materials with high energy efficiency.

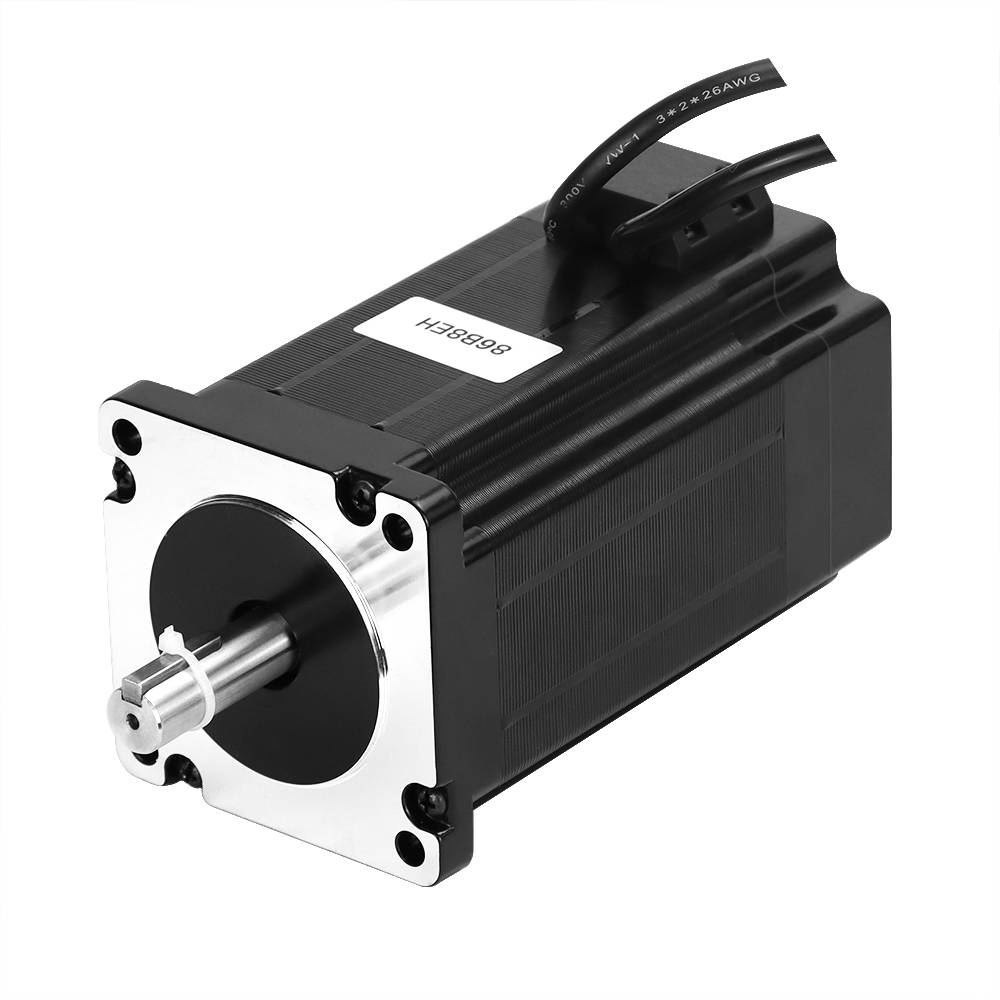

Phase Closed Loop Stepper Motor Series (5)

86

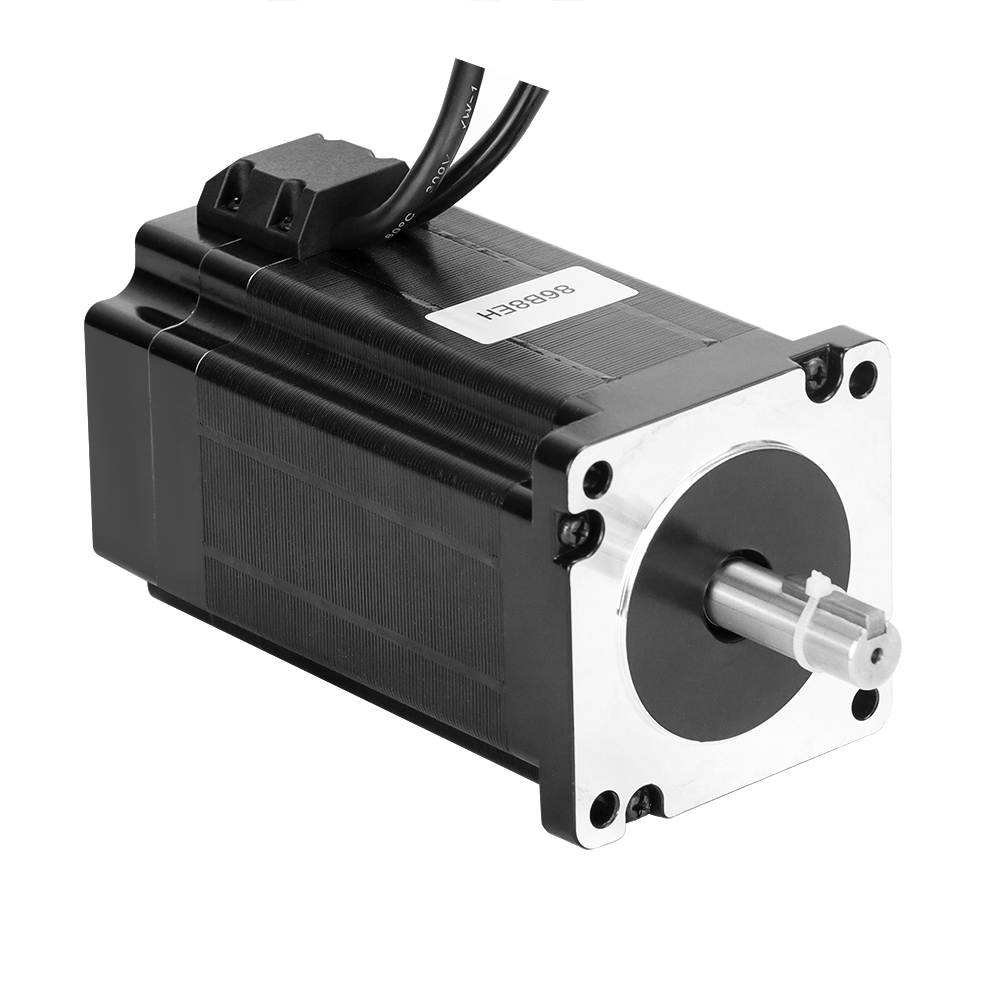

Phase Closed Loop Stepper Motor Series (4)

86

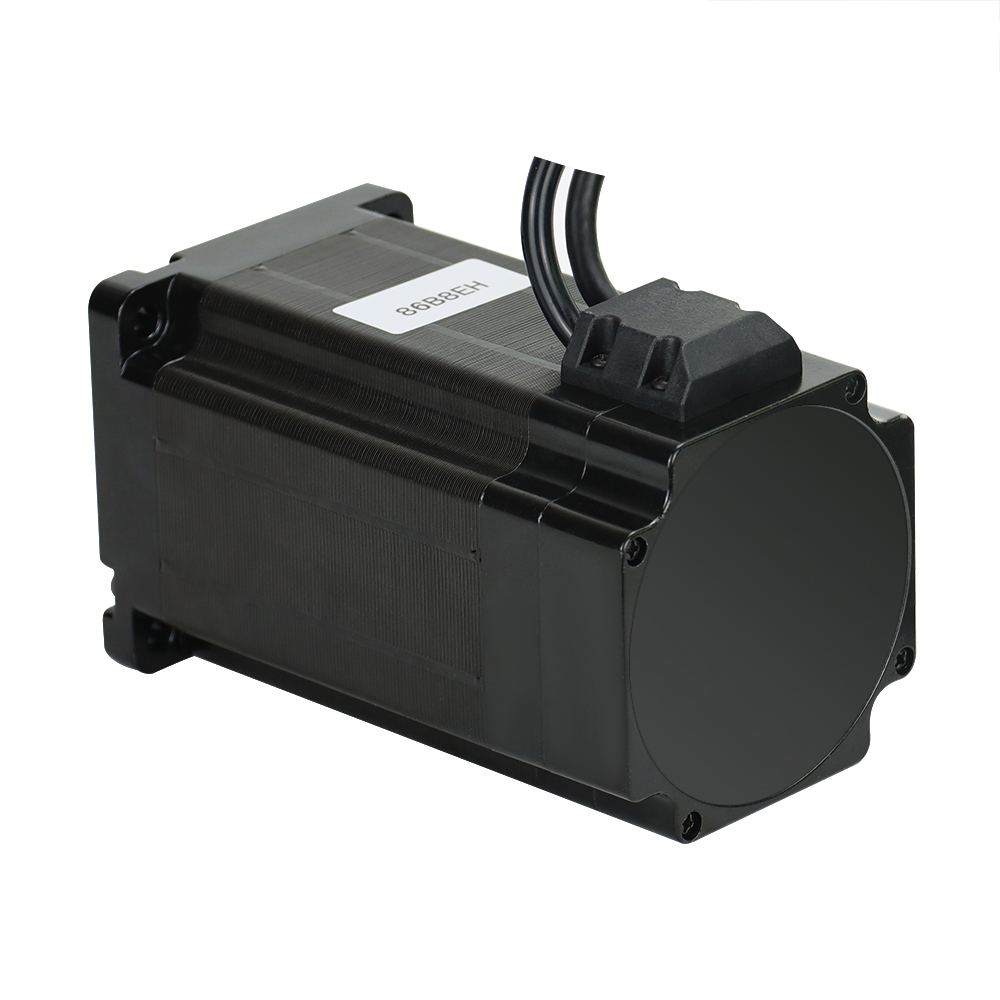

Phase Closed Loop Stepper Motor Series (2)

86

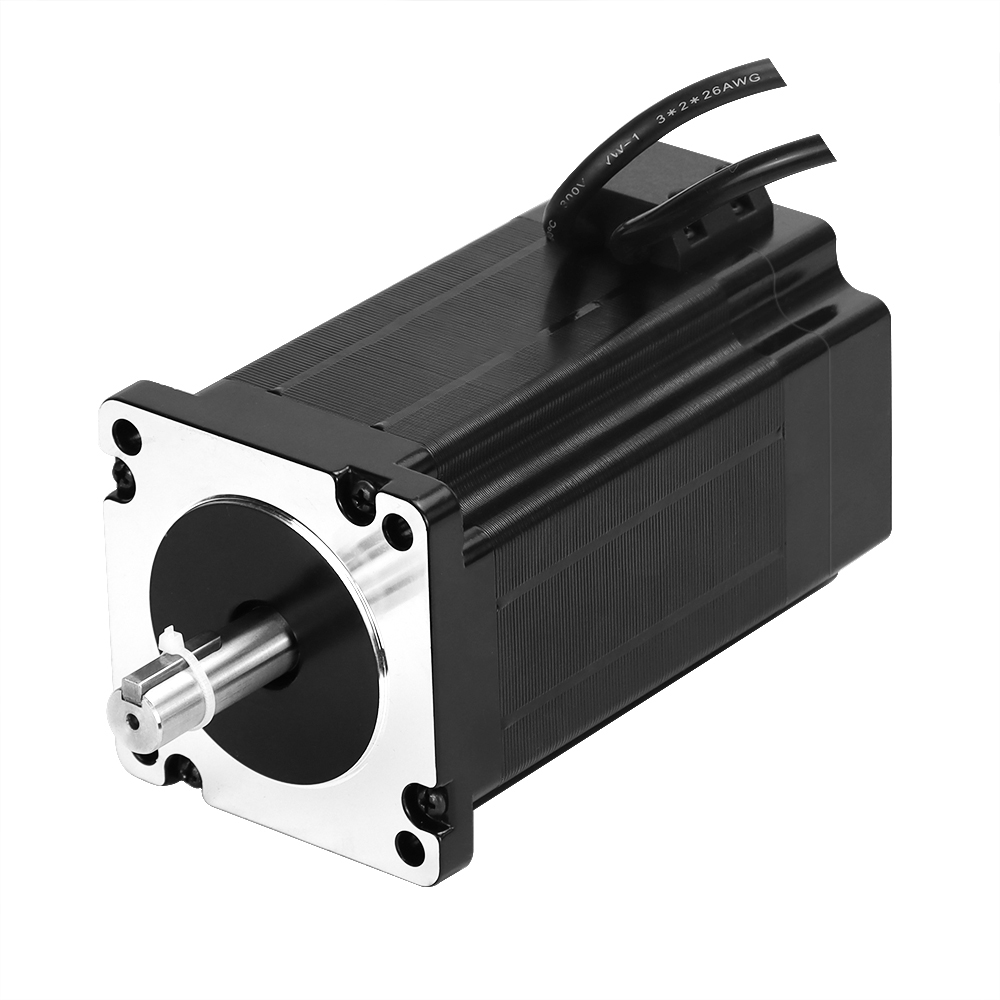

Phase Closed Loop Stepper Motor Series_1 (2)

110

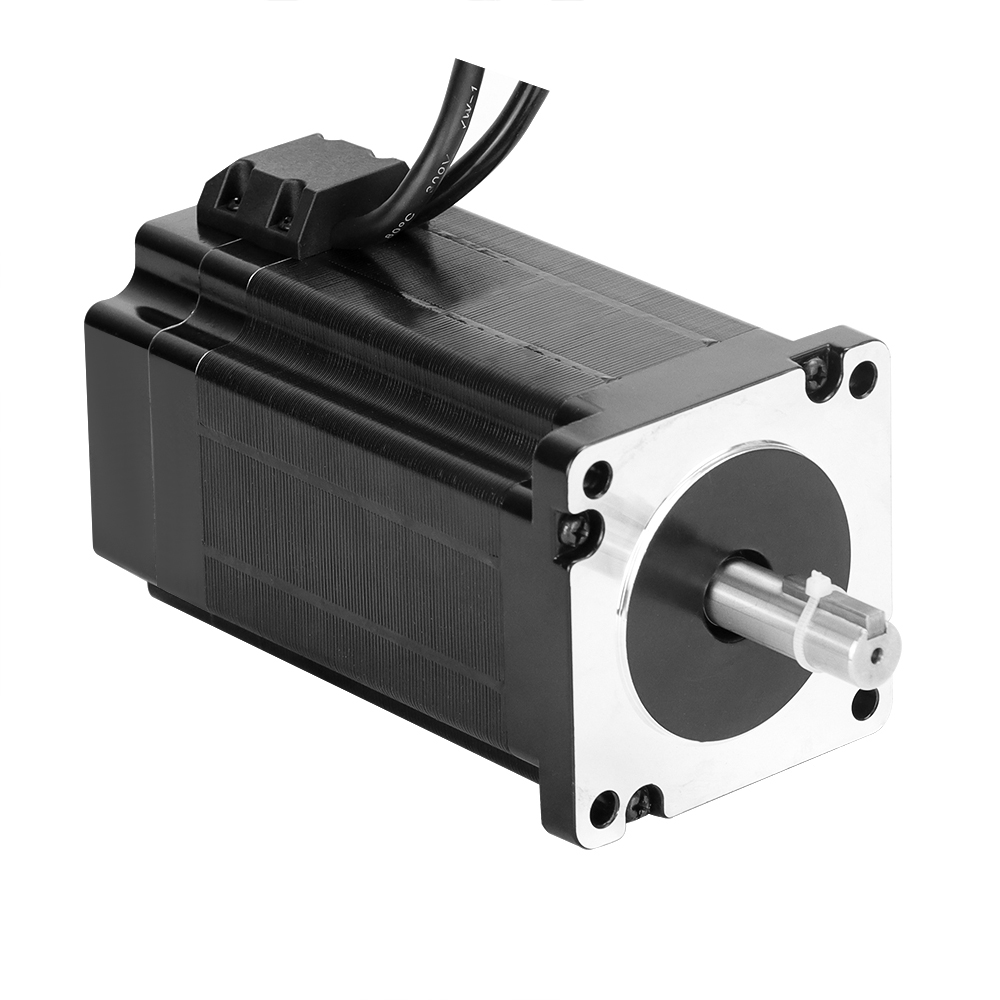

Phase Closed Loop Stepper Motor Series_1 (1)

110

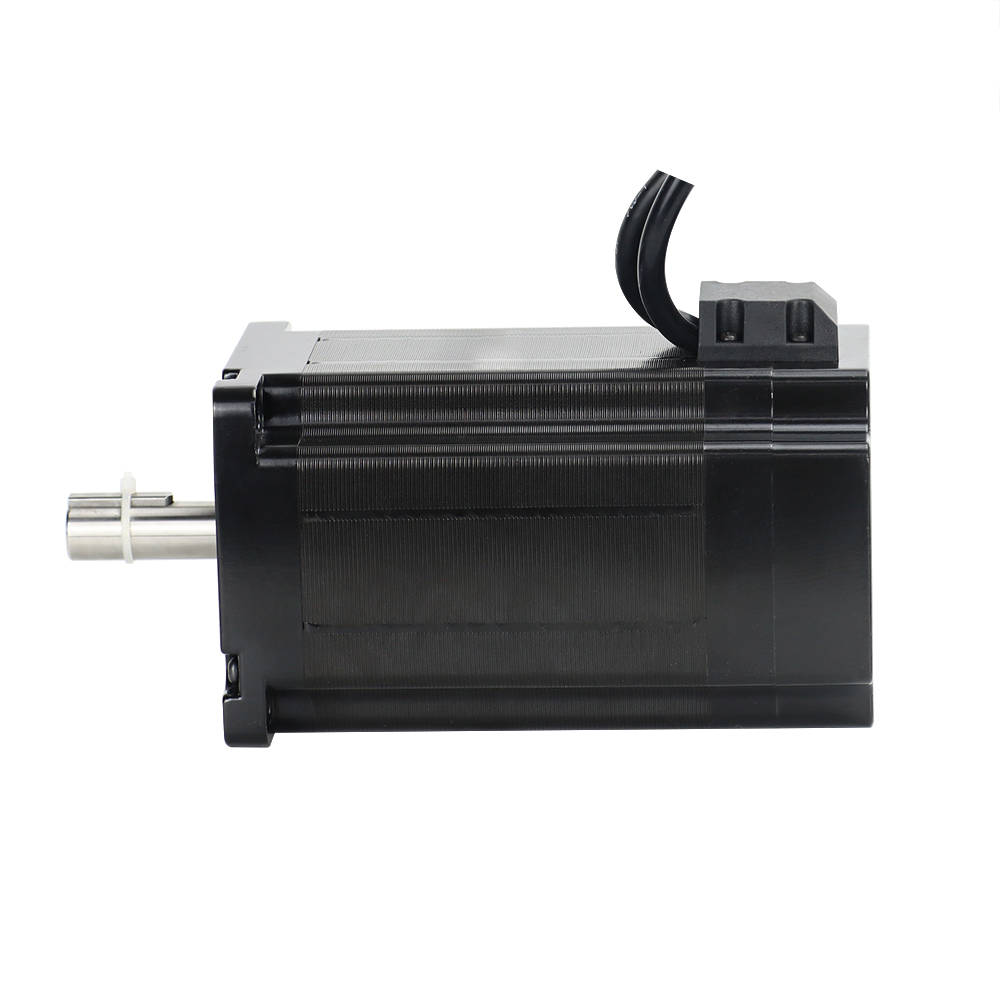

Phase Closed Loop Stepper Motor Series_1 (3)

110

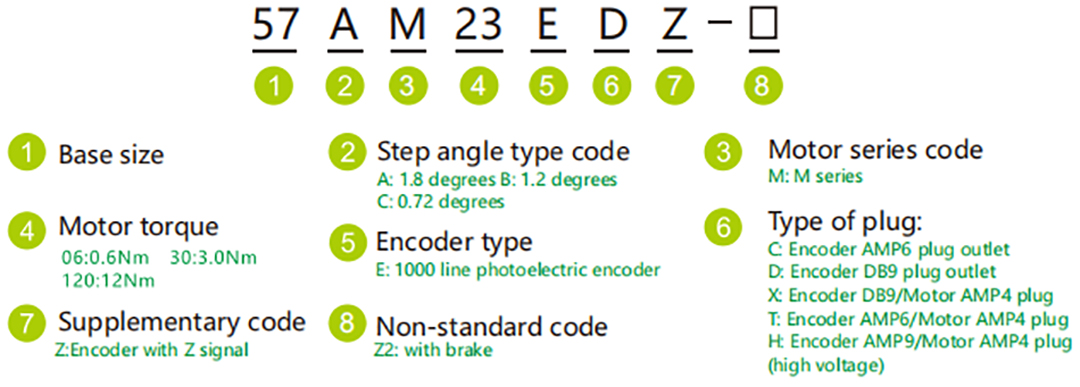

Naming Rule

Note: Model naming rules are only used for model meaning analysis. For specific optional models, please refer to the details page

Technical Specifications

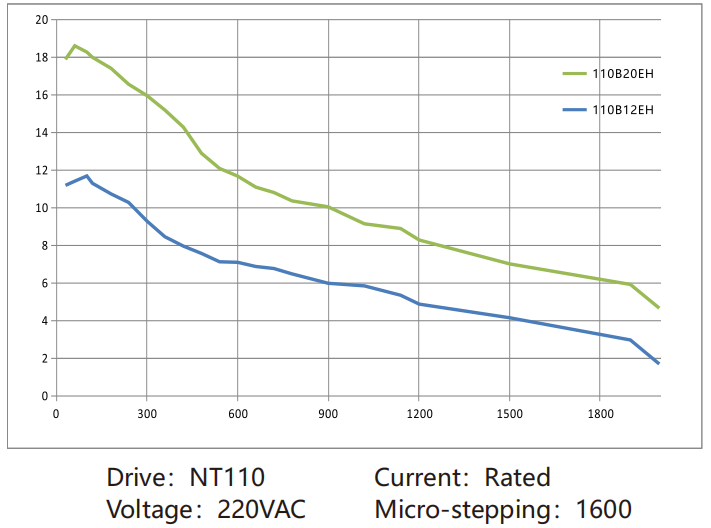

Phase Closed Loop Stepper Motor 86/110mm Series

Model	Step angle ()	Holding torque(N.m)	Rated current( A)	Resistance/ Phase(Ohm)	I nductance/ Phase(mH)	Rotorinertia (g.cm)	Shaft diameter(mm)	Shaft length (mm)	Length (mm)	Weight (kg)
86B8EH	1.2	8.0	6.0	2.6	17.4	2940	14	40	150	5.0
86B10EH	12	10	6.0	2.7	18.9	4000	14	40	178	5.8
110B12EH	12	12	4.2	1.2	13.0	10800	19	40	162	9.0
110B20EH	12	20	5.2	1.9	18.0	17000	19	40	244	11.8
