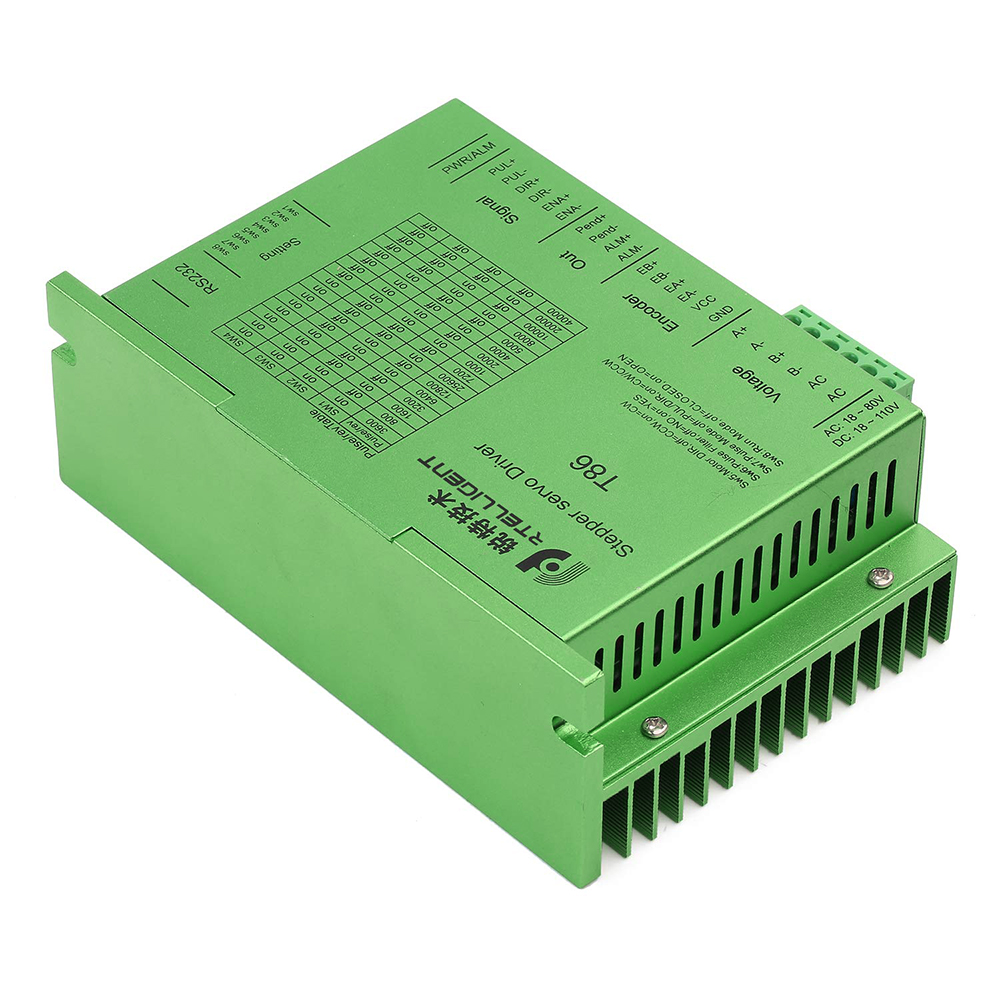

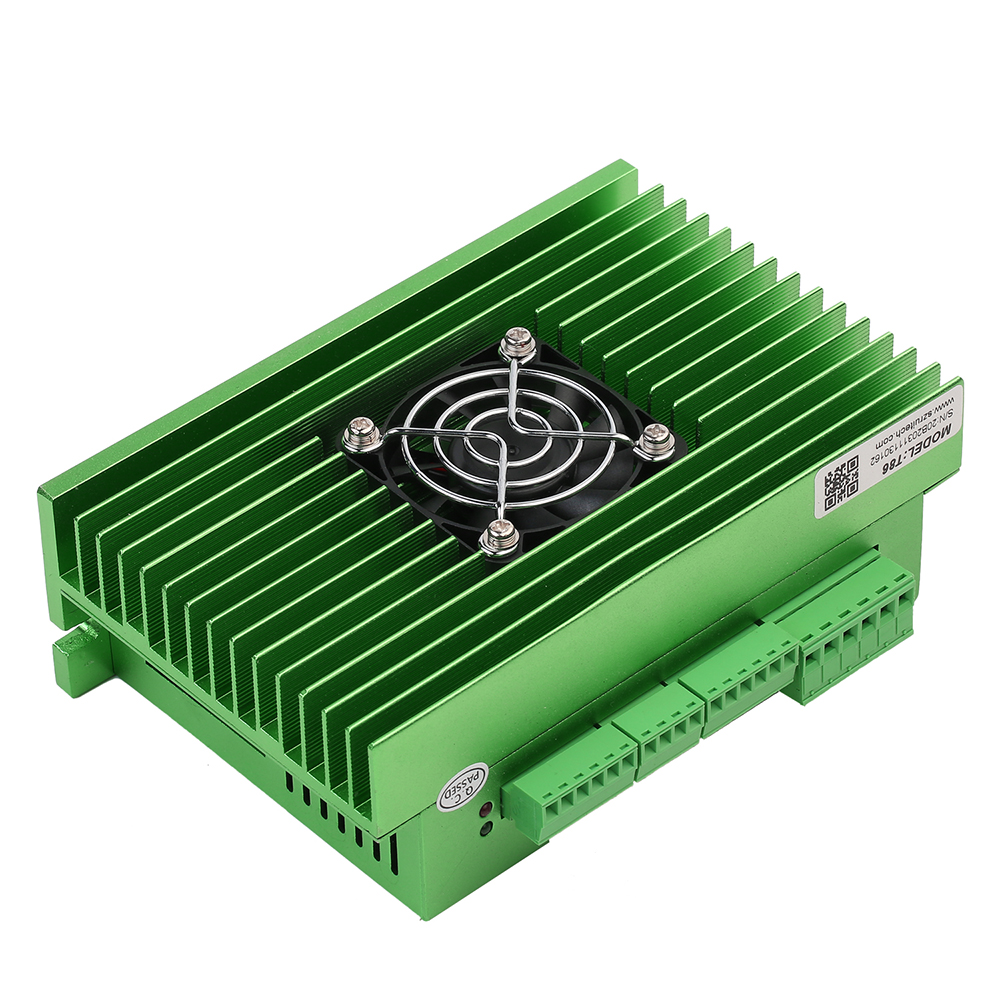

Pulse Control 2 Phase Closed Loop Stepper Drive T86
Pulse Control 2 Phase Closed Loop Stepper Drive T86
Product Introduction
Connection
Features
| Power supply | 18-80VAC / 18–110VDC |
| Control precision | 4000 Pulse/r |
| Pulse mode | Direction & pulse, CW/CCW double pulse |
| Current control | Servo vector control algorithm |
| Micro-stepping settings | DIP switch setting, or debugging software setting |
| Speed range | Conventional 1200 ~ 1500rpm, up to 4000rpm |
| Resonance suppression | Automatically calculate the resonance point and inhibit the IF vibration |
| PID parameter adjustment | Test software to adjust motor PID characteristics |
| Pulse filtering | 2MHz digital signal filter |
| Alarm output | Alarm output of over-current, over-voltage, position error, etc |
Pulse Mode
The standard T series driver signal interface is in the form of pulse, and T86 can receive two kinds of pulse command signals.
|
Pulse and direction (PUL + DIR) |
|
|
Double pulse (CW +CCW) |
 |

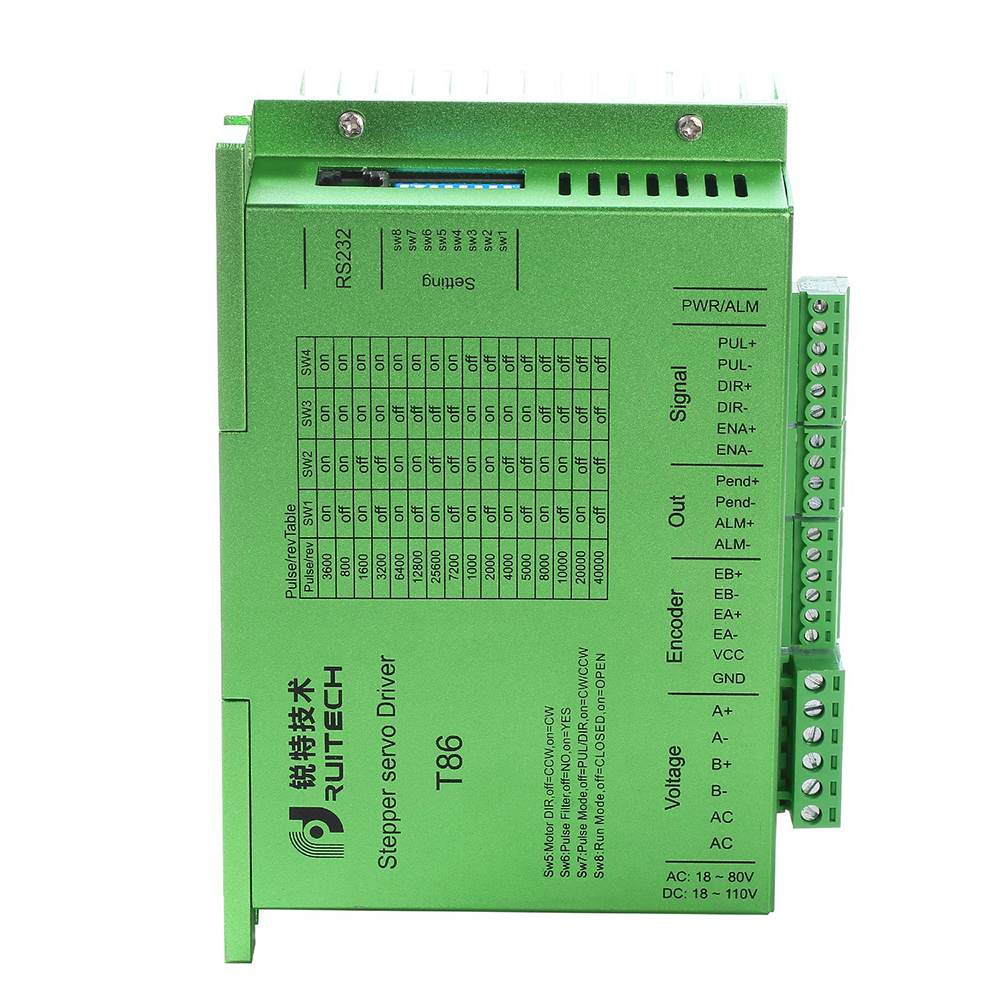

Micro-stepping Setting
|
Pulse/rev |
SW1 |
SW2 |
SW3 |
SW4 |
Remarks |
|
3600 |
on |
on |
on |
on |
The DIP switch is turned to the “3600” state and the testing software can freely change other subdivisions. |
|
800 |
off |
on |
on |
on |
|
|
1600 |
on |
off |
on |
on |
|
|
3200 |
off |
off |
on |
on |
|
|
6400 |
on |
on |
off |
on |
|
|
12800 |
off |
on |
off |
on |
|
|
25600 |
on |
off |
off |
on |
|
|
7200 |
off |
off |
off |
on |
|
|
1000 |
on |
on |
on |
off |
|
|
2000 |
off |
on |
on |
off |
|
|
4000 |
on |
off |
on |
off |
|
|
5000 |
off |
off |
on |
off |
|
|
8000 |
on |
on |
off |
off |
|
|
10000 |
off |
on |
off |
off |
|
|
20000 |
on |
off |
off |
off |
|
|
40000 |
off |
off |
off |
off |
Product Description
Introducing the most advanced pulse-controlled two-phase closed-loop stepper driver, a revolutionary product that combines cutting-edge technology with exceptional performance and reliability. This breakthrough stepper driver is designed to revolutionize the way precision motors are controlled, ensuring optimal efficiency and accuracy for a variety of applications.
One of the key features of this excellent stepper driver is its closed-loop system, which ensures precise control and eliminates step losses, even under demanding operating conditions. With its advanced pulse control mechanism, the drive guarantees precise positioning, smooth operation and reduced vibration, delivering excellent performance and stability.
The pulse-controlled two-phase closed-loop stepper driver also has a rugged and compact design and incorporates the latest microprocessor technology. This allows it to achieve higher torque output and handle heavier loads, making it ideal for industrial automation, robotics, CNC machine tools and other high-precision applications. Its high-resolution motor control algorithm ensures precise motion control, making it an excellent choice for tasks requiring complex motion.
The drive is also equipped with intelligent self-regulation that automatically detects and corrects any errors or deviations. This ensures consistent performance and minimizes the need for manual adjustments or calibration, saving users time and effort.
Additionally, pulse-controlled two-phase closed-loop stepper drives are highly versatile and compatible with a variety of motor types, including bipolar and unipolar stepper motors. Its simple connectivity interface and user-friendly control panel make it easy to integrate and operate seamlessly with existing systems, reducing installation time and complexity.
In summary, the Pulse Controlled Two-Phase Closed Loop Stepper Driver is a game-changing product that combines innovation, precision and reliability in one powerful device. Its unique features such as closed-loop control, advanced pulse control mechanisms, self-regulating capabilities and versatility make it ideal for applications requiring the highest precision and efficiency. Experience the future of stepper motor control and unlock new levels of performance and productivity with this exceptional product.
-
Edit Rtelligent T86 User Manual
