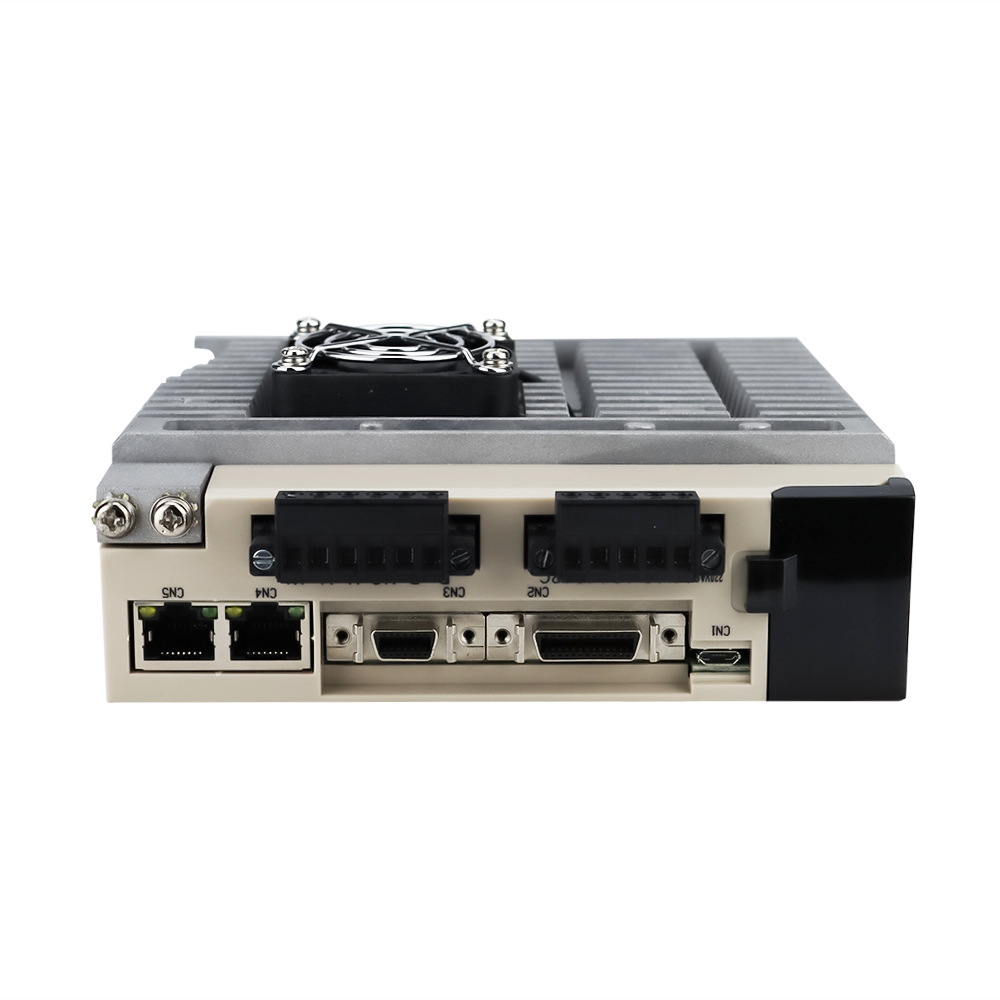

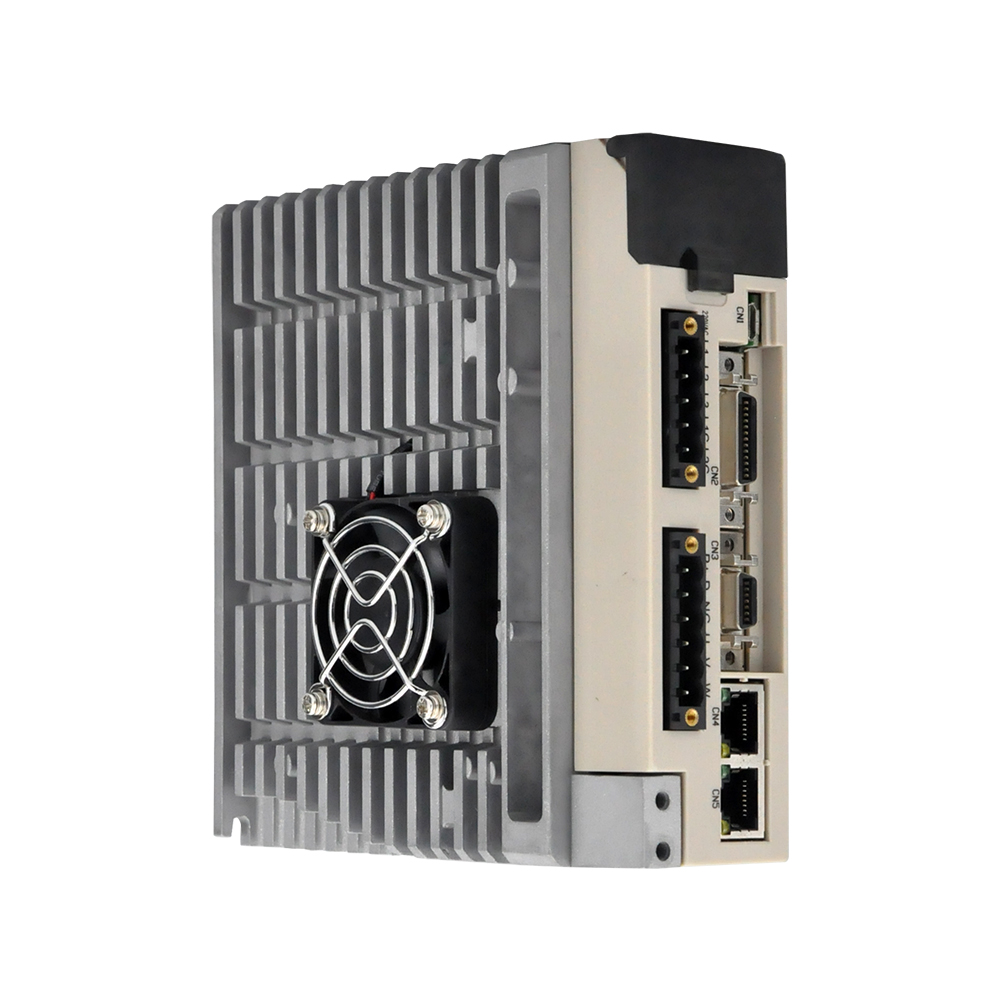

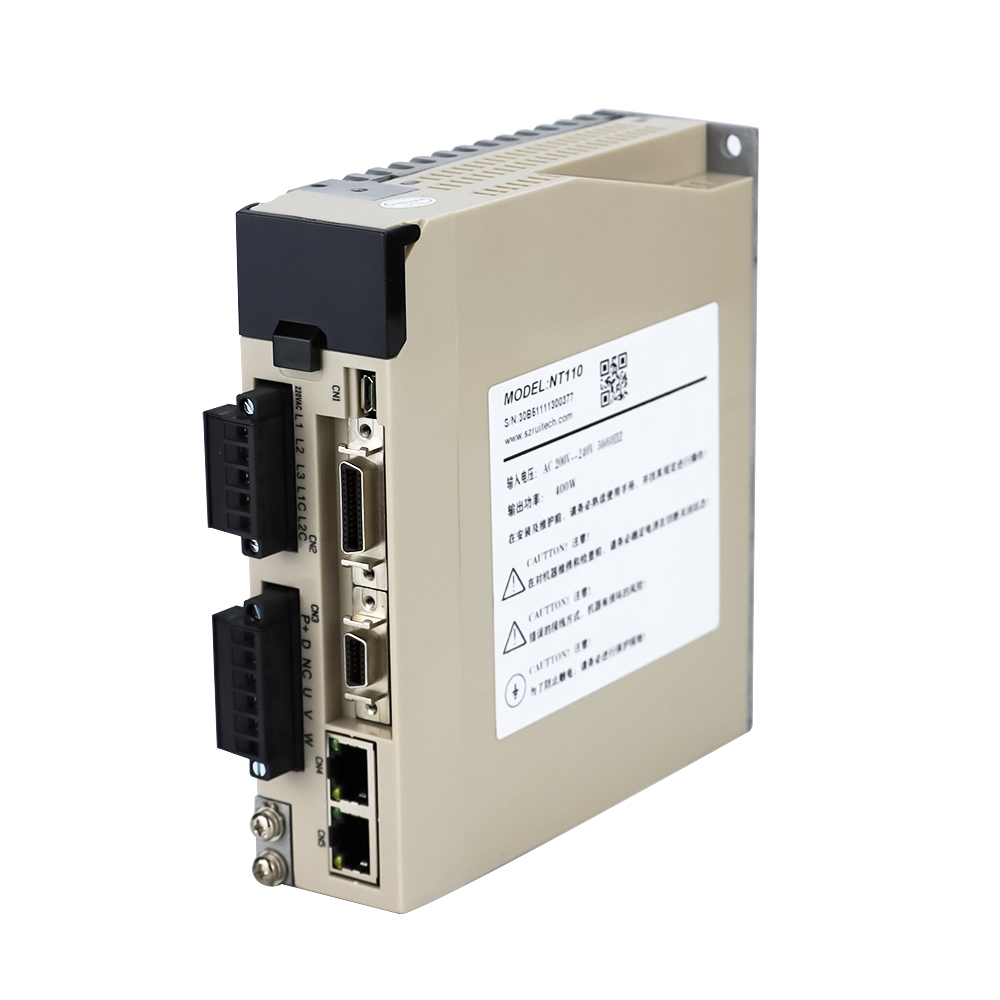

NT110 digital display 3 phase closed loop stepper drive, based on 32-bit digital DSP platform, built-in vector control technology and servo demodulation function, makes the closed loop stepper system have the characteristics of low noise and low heat.
NT110 is used to drive 3 phase 110mm and 86mm closed loop stepper motors,RS485 communication is available.
• Pulse mode: PUL&DIR/CW&CCW
• Signal level: 3.3-24V compatible; serial resistance not required for the application of PLC.
• Power voltage: 110-230VAC, and 220VAC is recommended.
• Typical applications: welding machine, wire-stripping machine, labeling machine, carving machine, electronic assembly equipment etc.
Rtelligent NT110 User Manual
