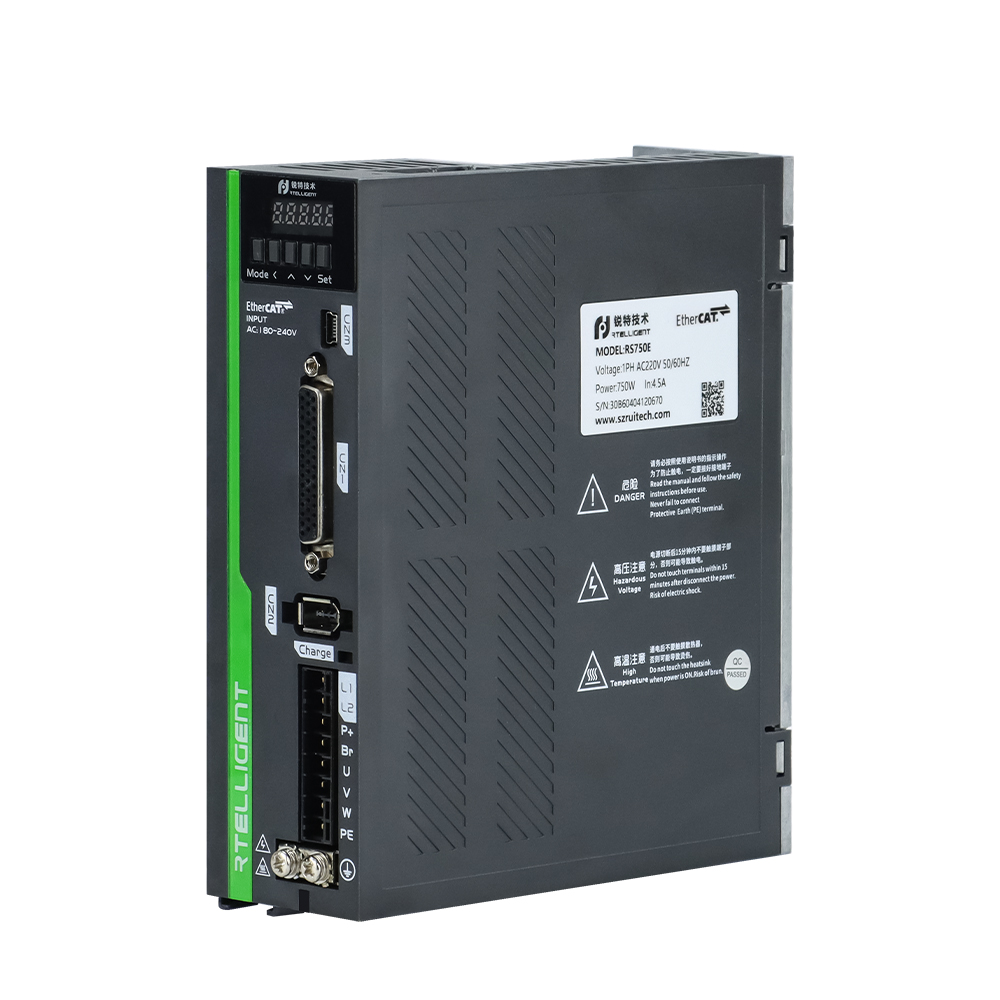

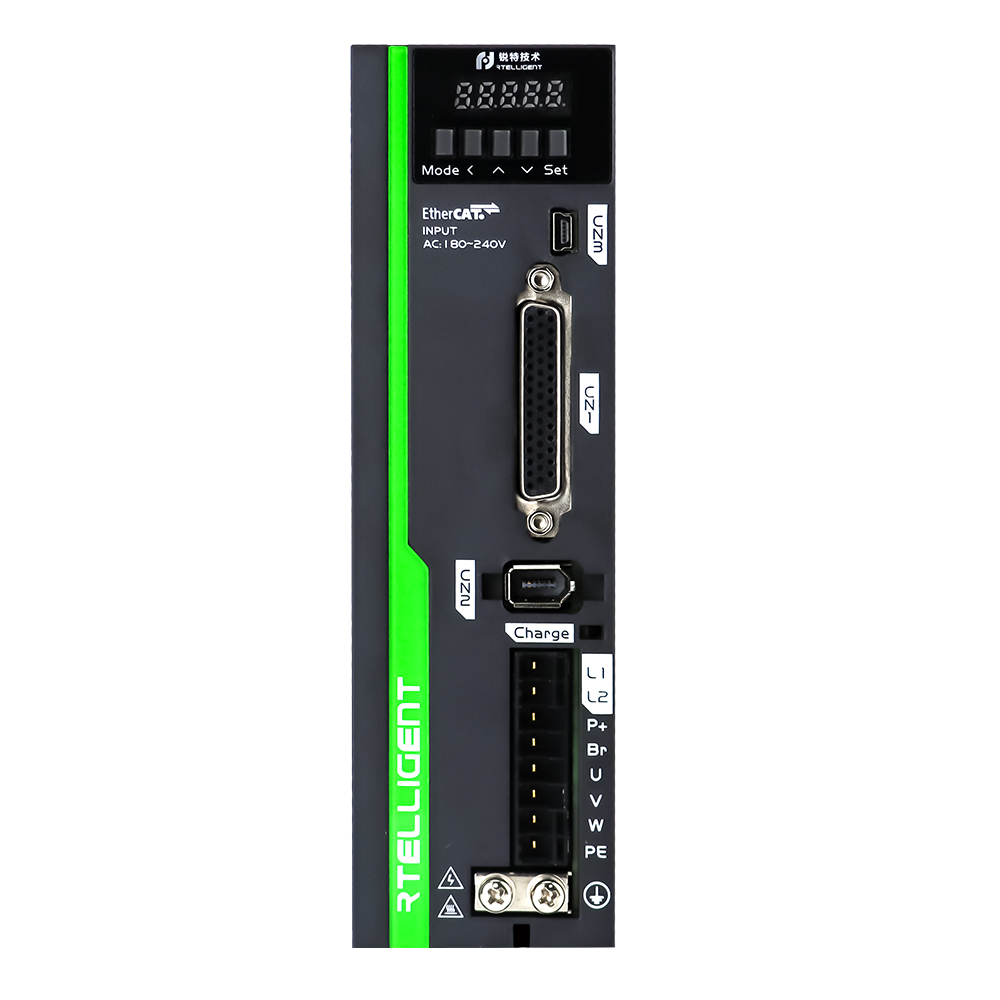

Product Introduction
RS series AC servo drive, based on DSP+FPGA hardware platform, adopts a new generation of software control algorithm, and has better performance in terms of stability and high-speed response. The RS series supports 485 communication, and the RSE series supports EtherCAT communication, which can be applied to different application environments.

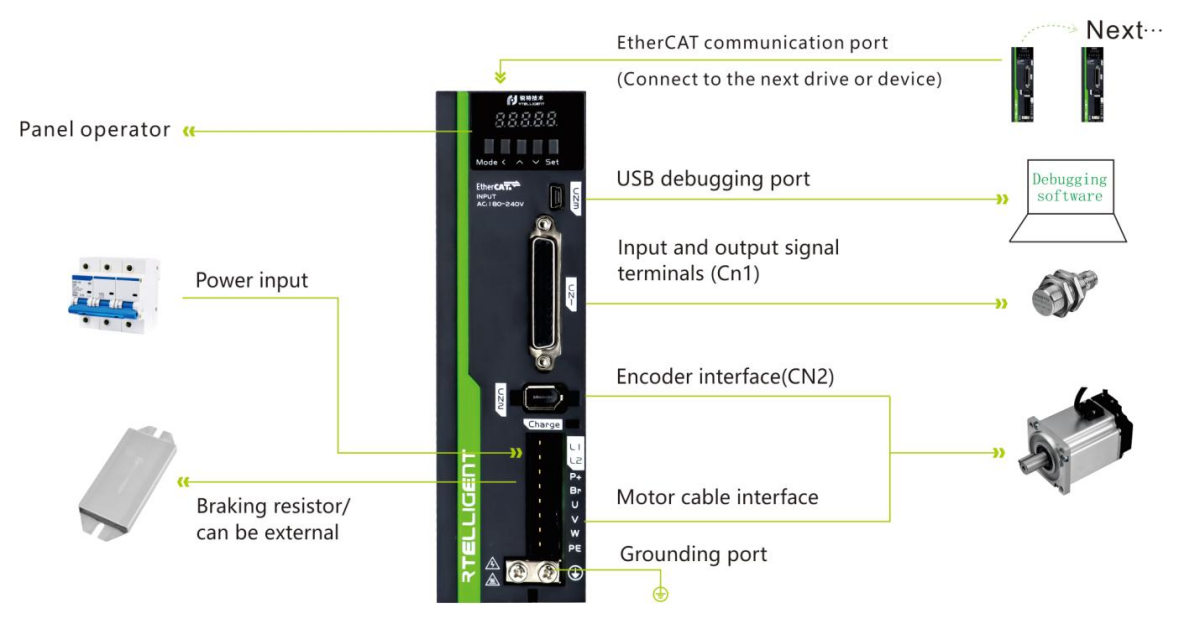

Connection
Features
| Item | Description |
| Control method |
IPM PWM control, SVPWM drive mode |
| Encoder type |
Match 17 ~ 23Bit optical or magnetic encoder, support absolute encoder control |
| Universal input |
8 channels, support 24V common anode or common cathode, |
| Universal output |
2 single-ended + 2 differential outputs, single-ended (50mA) can be supported / differential (200mA) can be supported |
Basic Parameters

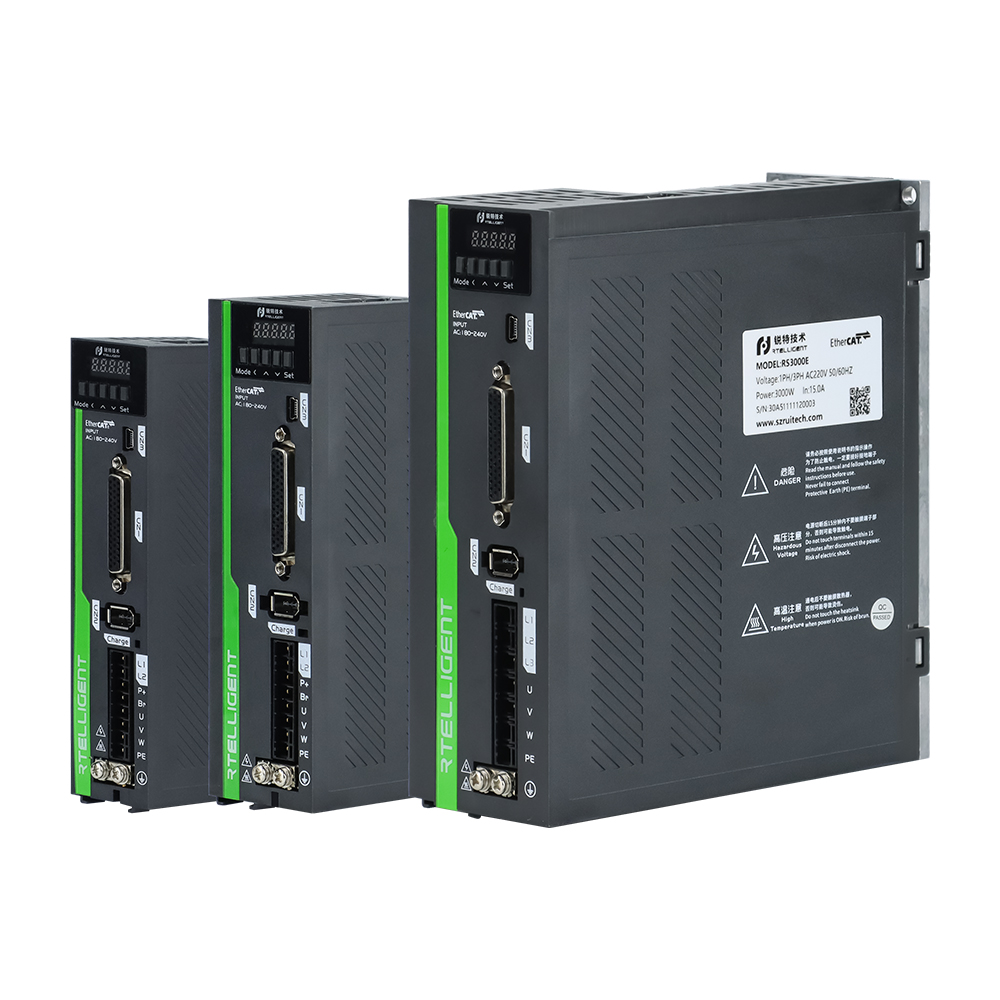

| Driver model | RS100E | RS200E | RS400E | RS750E | RS1000E | RS1500E | RS3000E |
| Adapted power | 100W | 200W | 400W | 750W | 1000W | 1500W | 3000W |
| Continuous current | 3.0A | 3.0A | 3.0A | 5.0A | 7.0A | 9.0A | 12.0A |
| Maximum current | 9.0A | 9.0A | 9.0A | 15.0A | 21.0A | 27.0A | 36.0A |
| Input power | Single phase 220AC | Single phase 220AC | Single phase / 3 phase 220AC | ||||
| Size code | Type A | Type B | Type C | ||||
| Size | 178*160*41 | 178*160*51 | 203*178*70 | ||||
AC Servo FAQs
Q1. What is AC servo system?
A: The AC servo system is a closed-loop control system that uses an AC motor as an actuator. It consists of a controller, encoder, feedback device and power amplifier. It is widely used in various industrial applications for precise control of position, speed and torque.
Q2. How does the AC servo system work?
A: AC servo systems work by continuously comparing the desired position or speed with the actual position or speed provided by a feedback device. The controller calculates the error and outputs a control signal to the power amplifier, which amplifies it and feeds it to the AC motor to achieve the desired motion control.
Q3. What are the advantages of using AC servo system?
A: The AC servo system has high precision, excellent dynamic response and smooth motion control. They provide precise positioning, rapid acceleration and deceleration, and high torque density. They are also energy efficient and easy to program for various motion profiles.
Q4. How do I choose the right AC servo system for my application?
A: When selecting an AC servo system, consider factors such as required torque and speed range, mechanical constraints, environmental conditions, and required level of accuracy. Consult a knowledgeable supplier or engineer who can guide you in selecting the appropriate system for your specific application.
Q5. Can the AC servo system run continuously?
A: Yes, AC servos are designed to handle continuous operation. However, consider the motor's continuous duty rating, cooling requirements, and any manufacturer recommendations to ensure long-term reliability and prevent overheating.
-
